DTC C1037: Steering Angle Sensor Power Supply Failure: Wiring Diagram

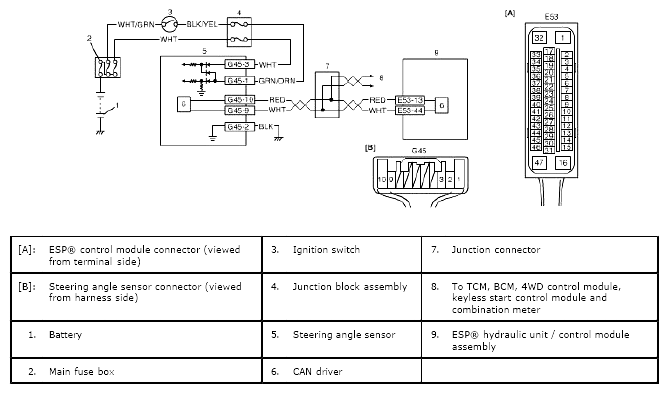

Fig 1: Steering Angle Sensor Power Supply Failure - Wiring Diagram
G04808512Courtesy of SUZUKI OF AMERICA CORP.
