Rear End Door Glass Removal and Installation
Reference: REAR END DOOR WINDOW COMPONENTS
Refer to WINDSHIELD REMOVAL AND INSTALLATION as removal and installation procedures are basically the same.
However, note the following.
- Observe the following precautions when applying adhesive (1) along glass (2) edge.
- Adhesive (1) should be applied evenly especially in height.
- Be careful not to damage primer (3).
- With the position of fastener (4) properly aligned, install glass (2) on rear end door panel (5).
- Press glass against body quickly after adhesive (1) is applied.

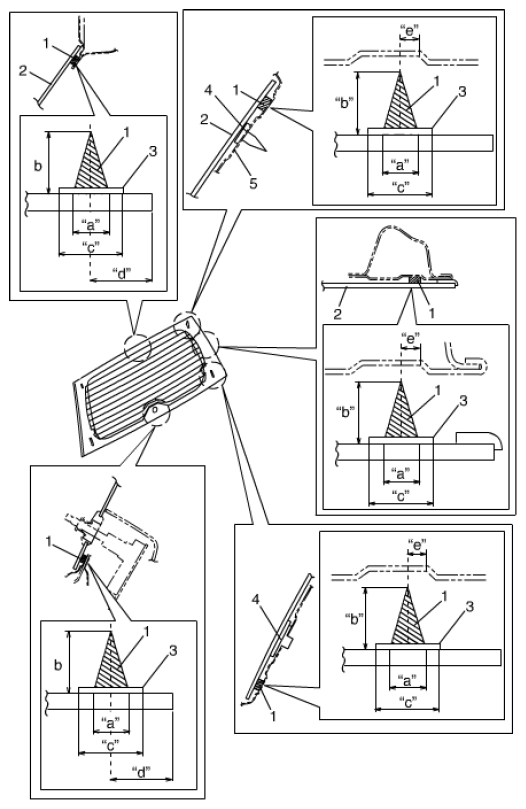

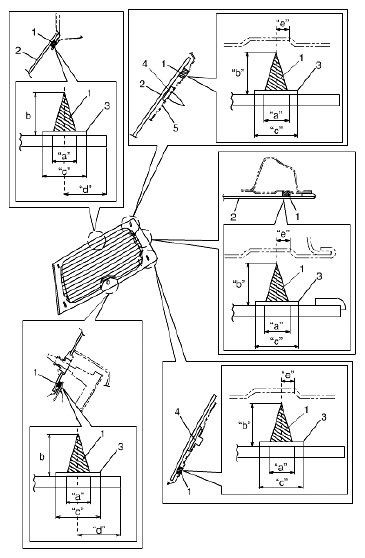

Adhesive amount specifications and position for rear end door glass
Height "a": 14 mm (0.55 in.)
Width "b": 7 mm (0.28 in.)
Width "c": 16 mm (0.63 in.)
Position "d": 15 mm (0.59 in.) for glass upper and bottom section
Position "e": 8 mm (0.31 in.)
