Electronic Shift Control Input/Output Table: Notes

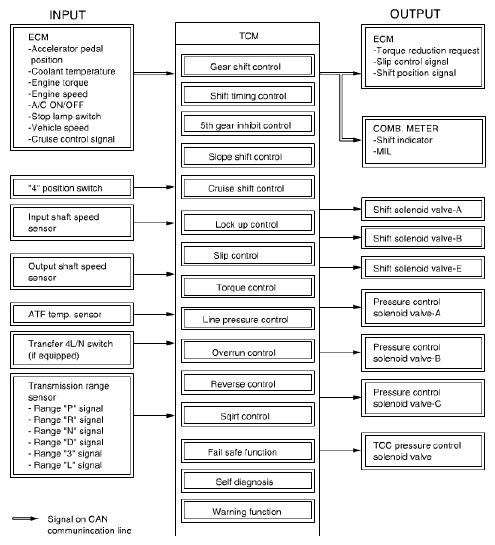

Fig 1: Flow Chart - Electronic Shift Control Input/Output

Courtesy of SUZUKI OF AMERICA CORP.

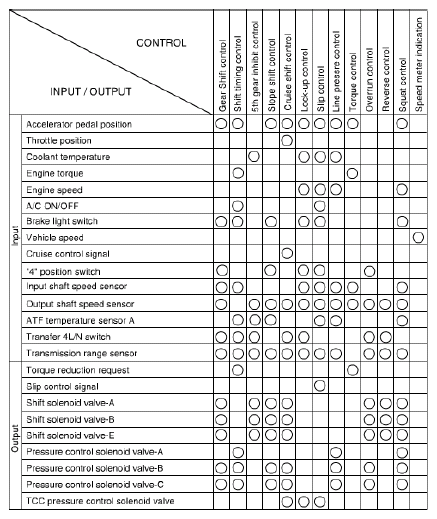

Fig 2: Electronic Shift Control Input/Output Table

Courtesy of SUZUKI OF AMERICA CORP.
