Air Intake System Components

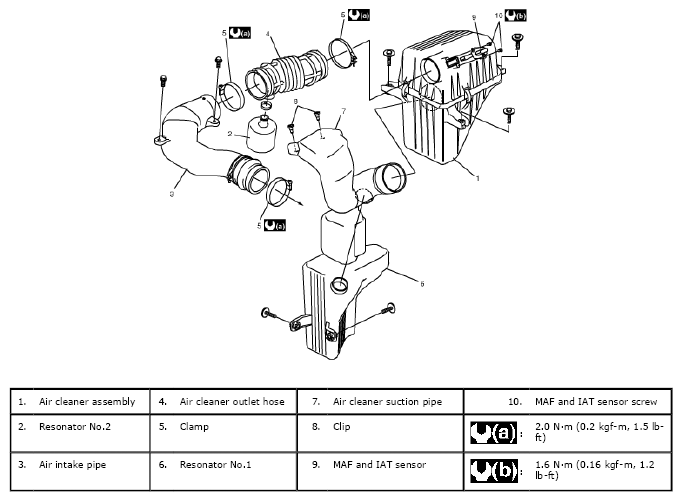

Fig 1: Air Intake System Replacement Components With Torque Specifications
G04807310Courtesy of SUZUKI OF AMERICA CORP.
