Clutch Cover, Clutch Disc And Flywheel Components

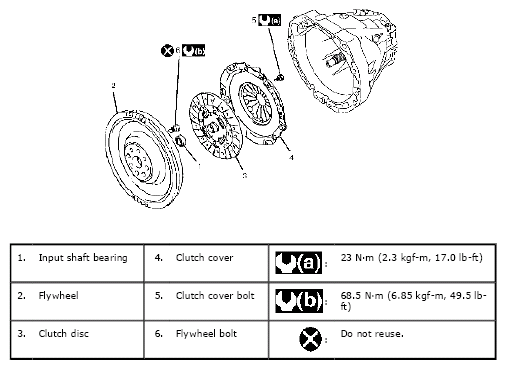

Fig 1: Clutch Cover, Clutch Disc & Flywheel Replacement Components With Torque Specifications
G04809047Courtesy of SUZUKI OF AMERICA CORP.
