Cruise Control System Construction
WARNING: This page is about a different car, the 2008 Suzuki Grand Vitara and 2007 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

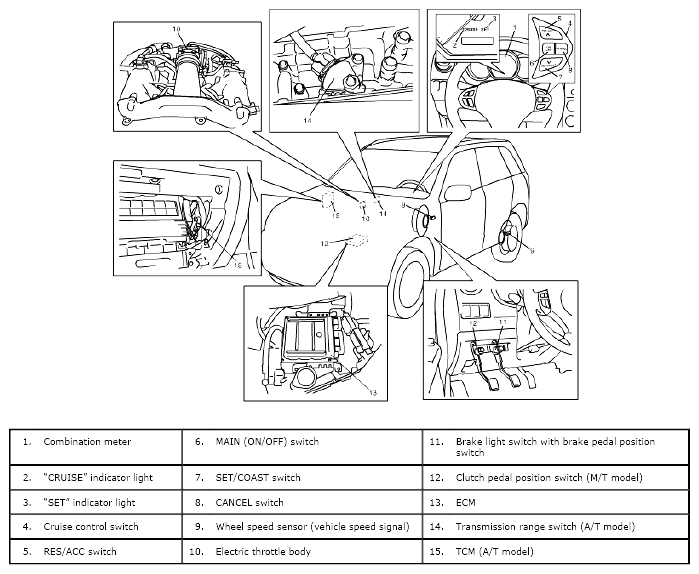

The cruise control system is a device which maintains a preset vehicle speed while driving at a high speed, e.g., on a highway. It allows the driver to drive his vehicle at a constant speed of 40 km/h (25 mile/h) or higher without depressing the accelerator pedal. The system also has such functions as to change the vehicle speed without operating the accelerator pedal (but using SET/COAST and RES/ACC switches), cancel cruise control (CANCEL switch) and resume the speed in memory automatically after cruise control is cancelled (RES/ACC switch). The system mainly consists of electric throttle body assembly, ECM, cruise control switch (MAIN (ON/OFF) switch, SET/COAST switch, RES/ACC switch and CANCEL switch), etc.
