BCM Power Circuit and Ground Circuit Check: Wiring Diagram

WARNING: This page is about a different car, the 2008 Suzuki Grand Vitara and 2007 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

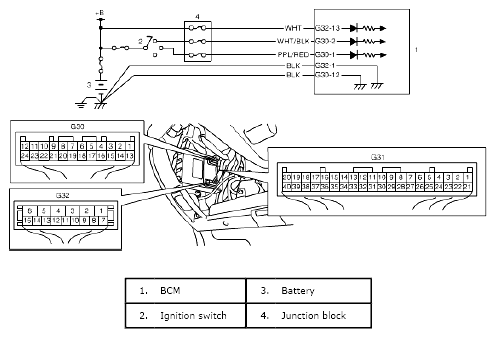

Fig 1: Identifying BCM Power & Ground Circuit Wiring Diagram
G04825282Courtesy of SUZUKI OF AMERICA CORP.
