Headlight Bulb Replacement
WARNING: This page is about a different car, the 2008 Suzuki Grand Vitara and 2007 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- To avoid danger of being burned, don't touch when the bulb is hot.
- Don't touch glass surface of bulb, to avoid deteriorate as the case may be unclear when bulb light on at dirty condition.
- Disconnect negative cable at battery.
- Disconnect headlight coupler.
- Remove socket cover (if equipped).

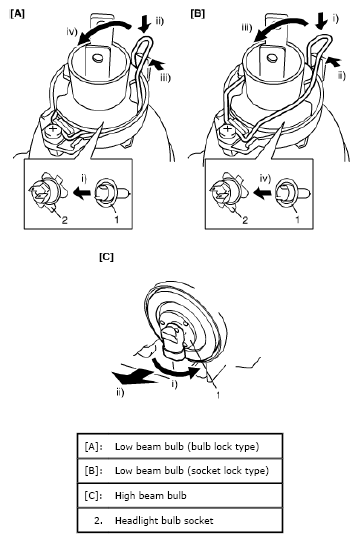

- Remove headlight bulb (1).
- Install new headlight bulb and assemble all removed parts.
