Basic Aiming
WARNING: This page is about a different car, the 2008 Suzuki Grand Vitara and 2007 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Unless otherwise obligated by local regulations, adjust front fog light aiming according to the following procedure.

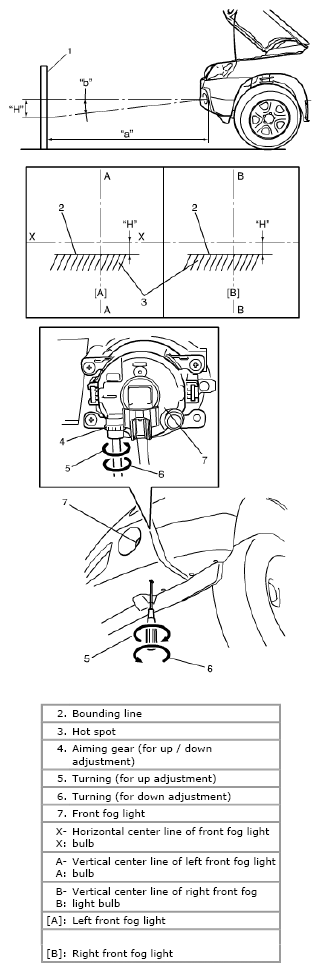

- An example in case that the light-to-wall distance 10 m is shown in Fig 1. The beam descending distance "H" is calculated when "a" is 10 m with the specification angle "b" (1.75°).
- Make sure the following items.
- Place vehicle on a flat surface in front of blank wall (screen) (1) ahead of front fog light surface.
Distance between screen and front fog light
"a": 10 m (32.8 ft.)
- Adjust air pressure of all tired to the specified value respectively.
- Bounce vehicle body up and down by hand to stabilize suspension.
- Carry out aiming with a driver aboard.
Driver's weight
68 kg (150 lb)
- Place vehicle on a flat surface in front of blank wall (screen) (1) ahead of front fog light surface.
- Check to see if hot spot (high intensity zone) of each front fog light axis falls as shown in Fig 1
.NOTE: If the fog lights interfere each other and make it hard to see the cut line clearly, cover the fog light on one side. This helps to make aiming adjustment easier.
Hot spot specification
Angle "b": 1.75° (Specification)
Calculated distance "H": Approx. 300 mm (11.81 in.)
- If it is not set properly, align front fog light to specification by rotating aiming gear.
