TPMS Wiring Circuit Diagram

WARNING: This page is about a different car, the 2008 Suzuki Grand Vitara and 2007 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

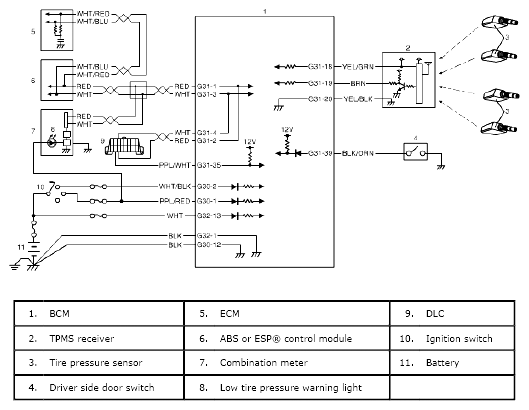

Fig 1: Identifying TPMS Wiring Circuit Diagram
G04825305Courtesy of SUZUKI OF AMERICA CORP.
