Pull-in coil open circuit test

Check for continuity across magnetic switch "S" terminal and "M" terminal. If no continuity exists, coil is open and should be replaced.

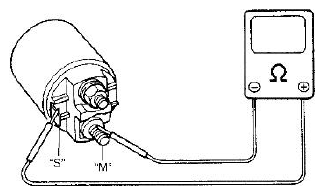

Fig 1: Checking Continuity Across Magnetic Switch S Terminal & M Terminal

Courtesy of SUZUKI OF AMERICA CORP.
