DTC U0073: Control Module Communication Bus Off: Wiring Diagram

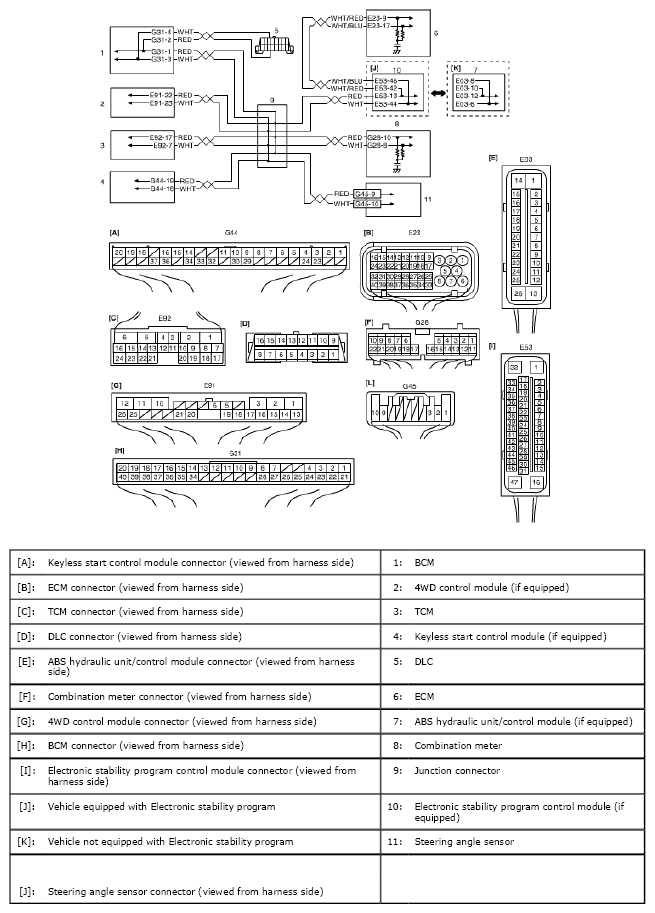

Fig 1: Wiring Diagram - DTC U0073 Control Module Communication Bus Off
G04808562Courtesy of SUZUKI OF AMERICA CORP.
