DTC P0705: Transmission Range Sensor Circuit Malfunction: Wiring Diagram

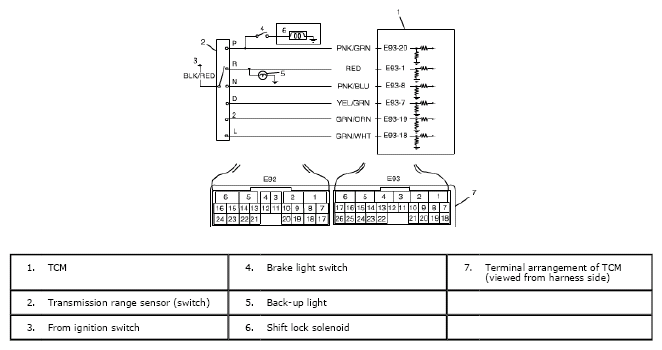

Fig 1: Wiring Diagram - DTC P0705 Transmission Range Sensor Circuit Malfunction
G04808550Courtesy of SUZUKI OF AMERICA CORP.
