Step 1. Customer Complaint Analysis

Record details of the problem (failure, complaint) and how it occurred as described by the customer. For this purpose, use of such a inspection form will facilitate collecting information to the point required for proper analysis and diagnosis.

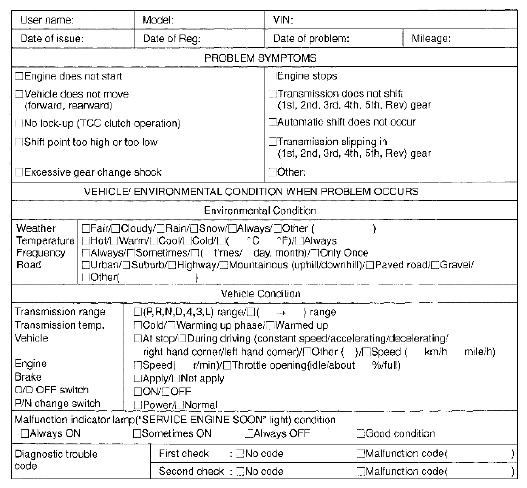

Fig 1: Customer Problem Inspection From
G04808546Courtesy of SUZUKI OF AMERICA CORP.
NOTE: The form is a standard sample. It should be modified according to conditions characteristic of each market.
