Keyless Start Owner's Manual Supplement (TS 03 05096)

Publication date: 2006-05-09
Reference number: TS 03 05096

KEYLESS START OWNER'S MANUAL SUPPLEMENT

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 03 05096, Date of Issue: May 09, 2006

SUZUKI:	2006 Grand Vitara
SECTION:	Control System

AFFECTED VIN(S)

SPECIFIC VINs ONLY, (See enclosed VIN list)

NOTE: The original version of this TSB was mailed to the dealers with VIN information included. The VIN information is not included with this TSB. Owner's with affected vehicles will be notified via mail.

CONDITION

If the driver does not turn the ignition switch to the "LOCK" position, the vehicle can be started and operated without the key even if the remote controller has been removed from the vehicle.

CAUSE

Once the keyless start system recognizes that the correct remote controller is in the vehicle, this is the same as having a key in the ignition switch. This is normal operation of the keyless start system. After the ignition switch is turned from the "LOCK" position to the "ACC", "ON", or "START" positions, the ignition switch can be turned to any position until it is returned to the "LOCK" position and the controller removed from the vehicle. Again, this is normal operation, just like having a key in the ignition switch.

CORRECTION

Install the hang tag onto the windshield wiper control stock (see illustration) and place the owner's manual supplement into the glove box of all affected vehicles in your dealership inventory. See enclosed VIN list for your dealers specific VIN's. A hang tag and owner's manual supplement has been included with this bulletin for each of these vehicles. See attached owner's manual supplement sample (Attachment A), keyless start hang tag sample (Attachment B) and enclosed VIN list of affected vehicles.

ASMC will notify owners of this supplemental information by mail; see the attached owner letter. If a Grand Vitara owner should contact your dealership for assistance, please take the appropriate action to provide the best possible customer service.

PART(S) INFORMATION

Part Numbers	Description	QTY	Notes
99963-01501-230	Hang Tag / O/M Supplement	1

WARRANTY CLAIM INFORMATION

Labor Operation	Description	Failed Part Number	Complaint Code	Defect Code	Labor Time
SM9999	Steering Lock Assy.	37108-64830	79	43	0.1 Hrs.

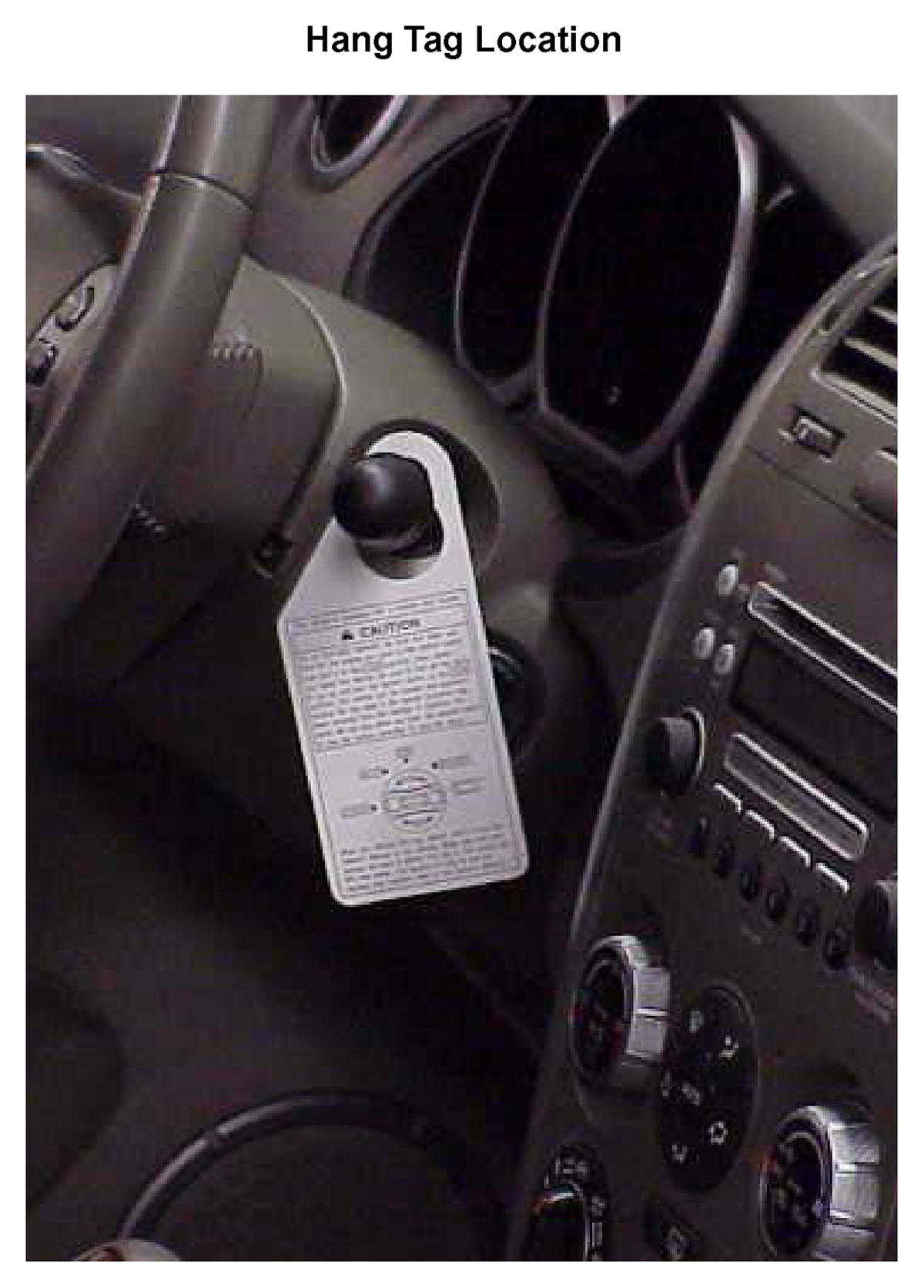

Fig 1: Identifying Hang Tag Location

Courtesy of SUZUKI OF AMERICA CORP.

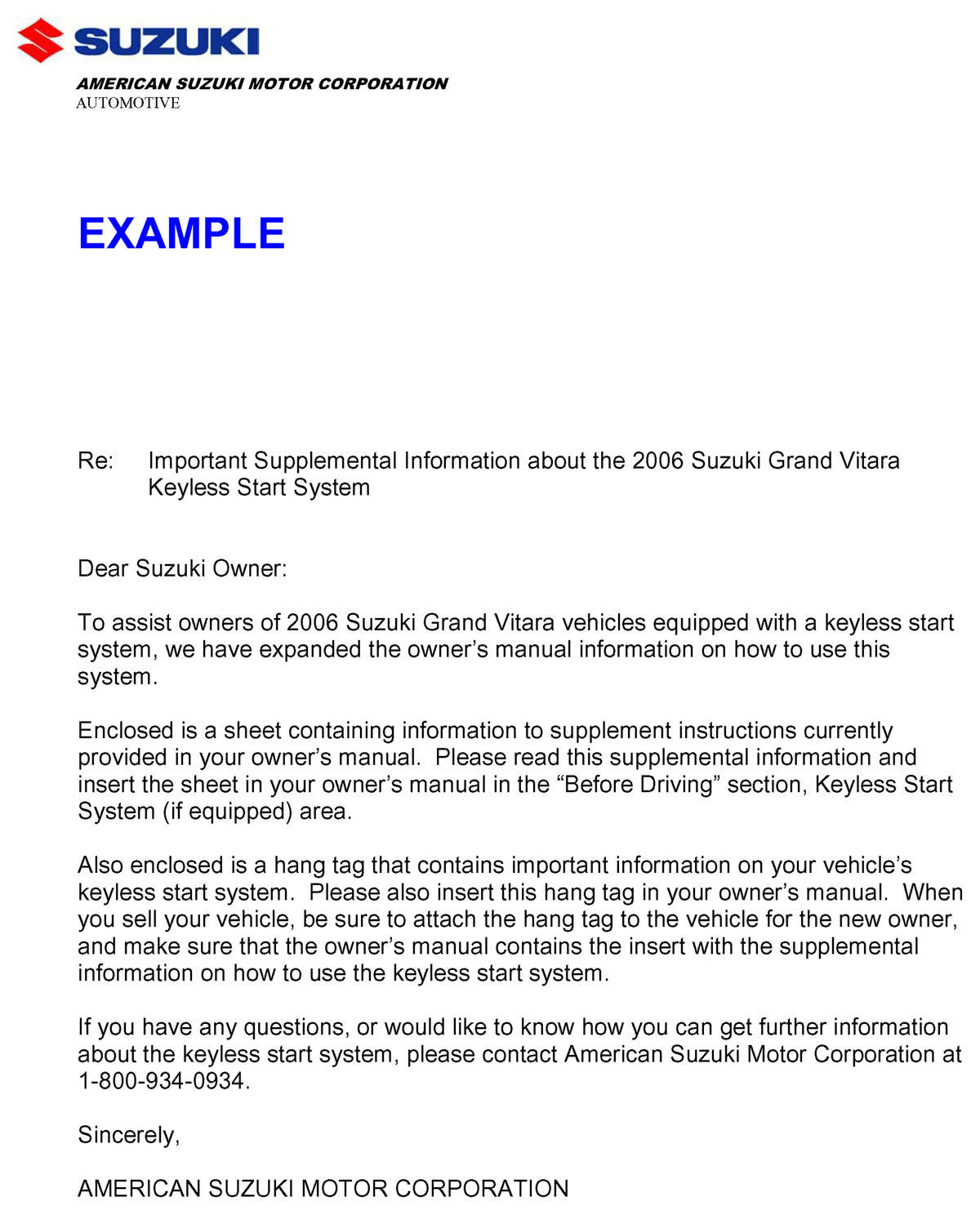

Fig 2: Keyless Start System - Supplemental Information Letter

Courtesy of SUZUKI OF AMERICA CORP.

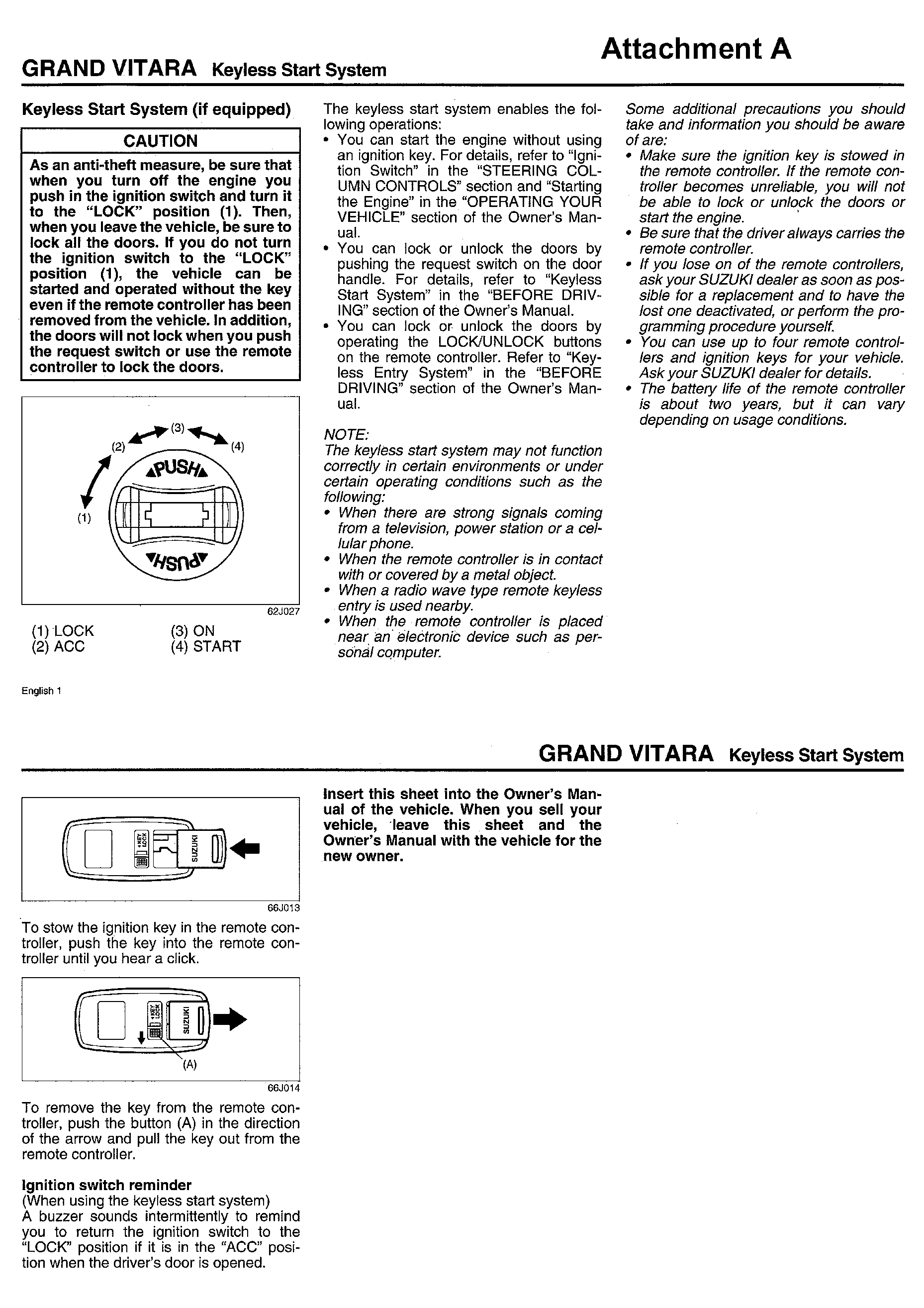

Fig 3: Attachment A - Grand Vitara Keyless Start System

Courtesy of SUZUKI OF AMERICA CORP.

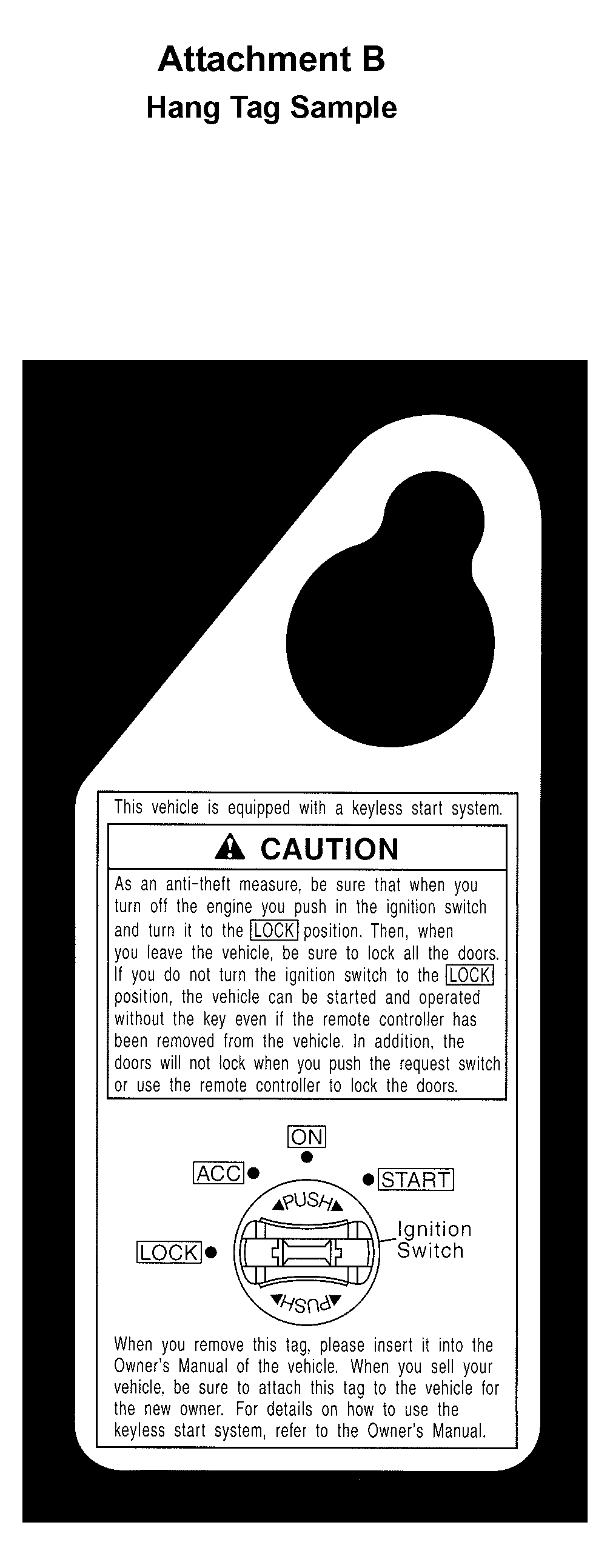

Fig 4: Attachment B - Hang Tag Sample

Courtesy of SUZUKI OF AMERICA CORP.
