Service Manual Update: Headlight Aiming And Adjustment (TS 17 04286)

Publication date: 2006-04-28
Reference number: TS 17 04286

SERVICE MANUAL UPDATE: HEADLIGHT AIMING AND ADJUSTMENT

SERVICE MANUAL UPDATE: HEADLIGHT AIMING AND ADJUSTMENT

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 17 04286, Date of Issue:  April 28, 2006
SUZUKI: 2006 Grand Vitara (JB627)
SECTION: Body, Cab & Accessories

CONDITION

The service manual procedure for headlight aiming has been updated.

CAUSE

Updated diagram showing head light beam pattern.

CORRECTION

Please add the attached page to the appropriate section of your printed service manual and disregard the old page.

AFFECTED SERVICE MANUAL(S)

AFFECTED SERVICE MANUAL(S)

Name of Manuals Part Numbers Corresponding Pages
2006 Grand Vitara (JB627) Service Manual 99500S66J00-33E 9B-9
NOTE: This update will appear in future printings of the service manuals. If the reprint date on the inside back cover of the manual is later than the issue date of this bulletin, the manual will have been updated.

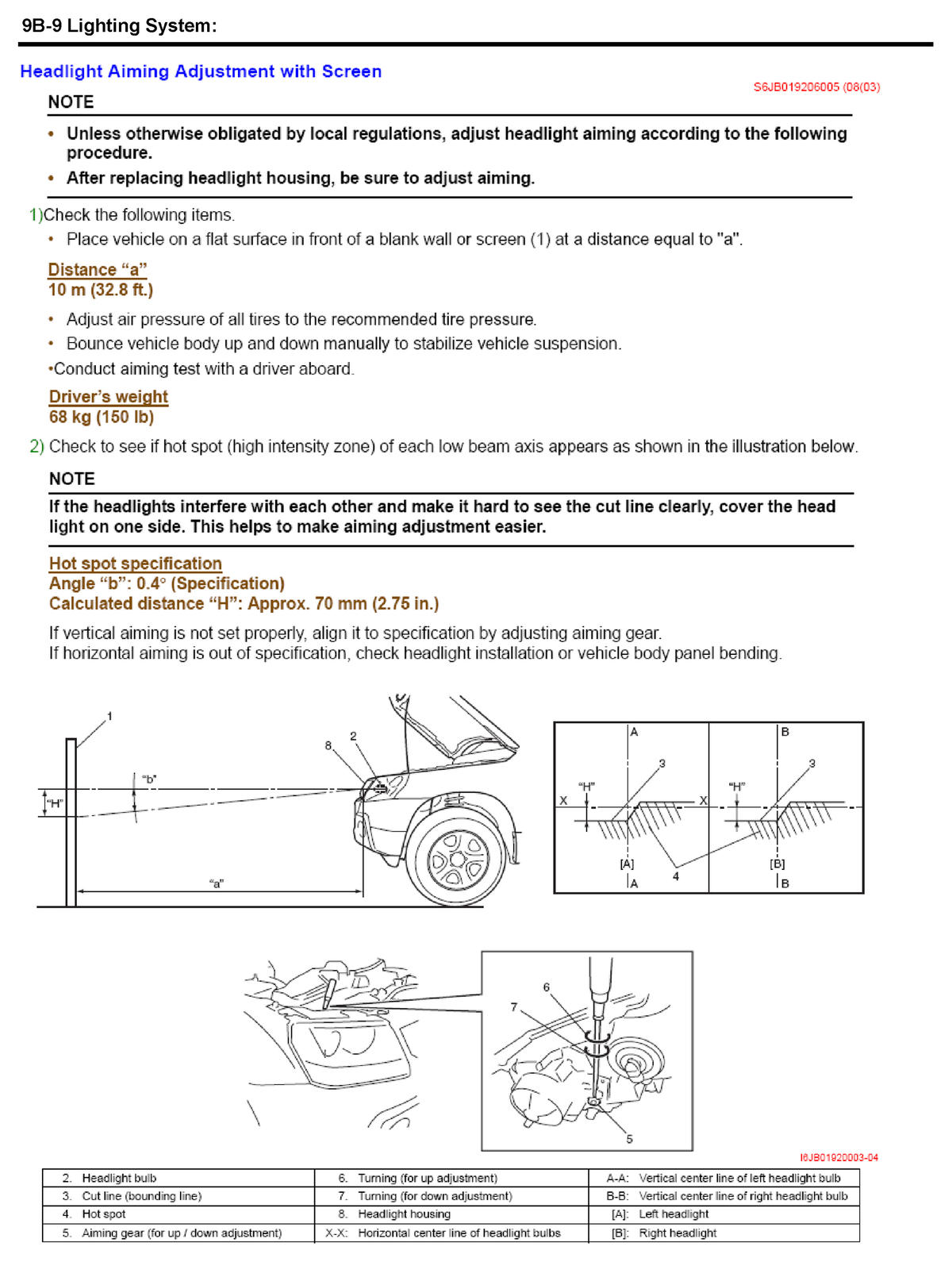

Fig 1: Attachment - Headlight Aiming Adjustment With Screen (9B-9)
G04600139Courtesy of SUZUKI OF AMERICA CORP.
