Service Manual Update: Parking Brake Lever Removal And Installation (TS 05 04286)
Publication date: 2006-04-28Reference number: TS 05 04286
SERVICE MANUAL UPDATE: PARKING BRAKE LEVER REMOVAL AND INSTALLATION
TECHNICAL SERVICE BULLETIN
Reference Number(s): TS 05 04286, Date of Issue:
April 28, 2006
| SUZUKI: | 2006 Grand Vitara (JB627) |
| SECTION: | Brakes |
CONDITION
ESP light ON with DTC C1023 stored after the parking brake lever has been replaced.
CAUSE
The parking brake lever bolts were removed and installed with an impact wrench. The shock created by the impact wrench will damage the internal sensor of the yaw rate G sensor.
CORRECTION

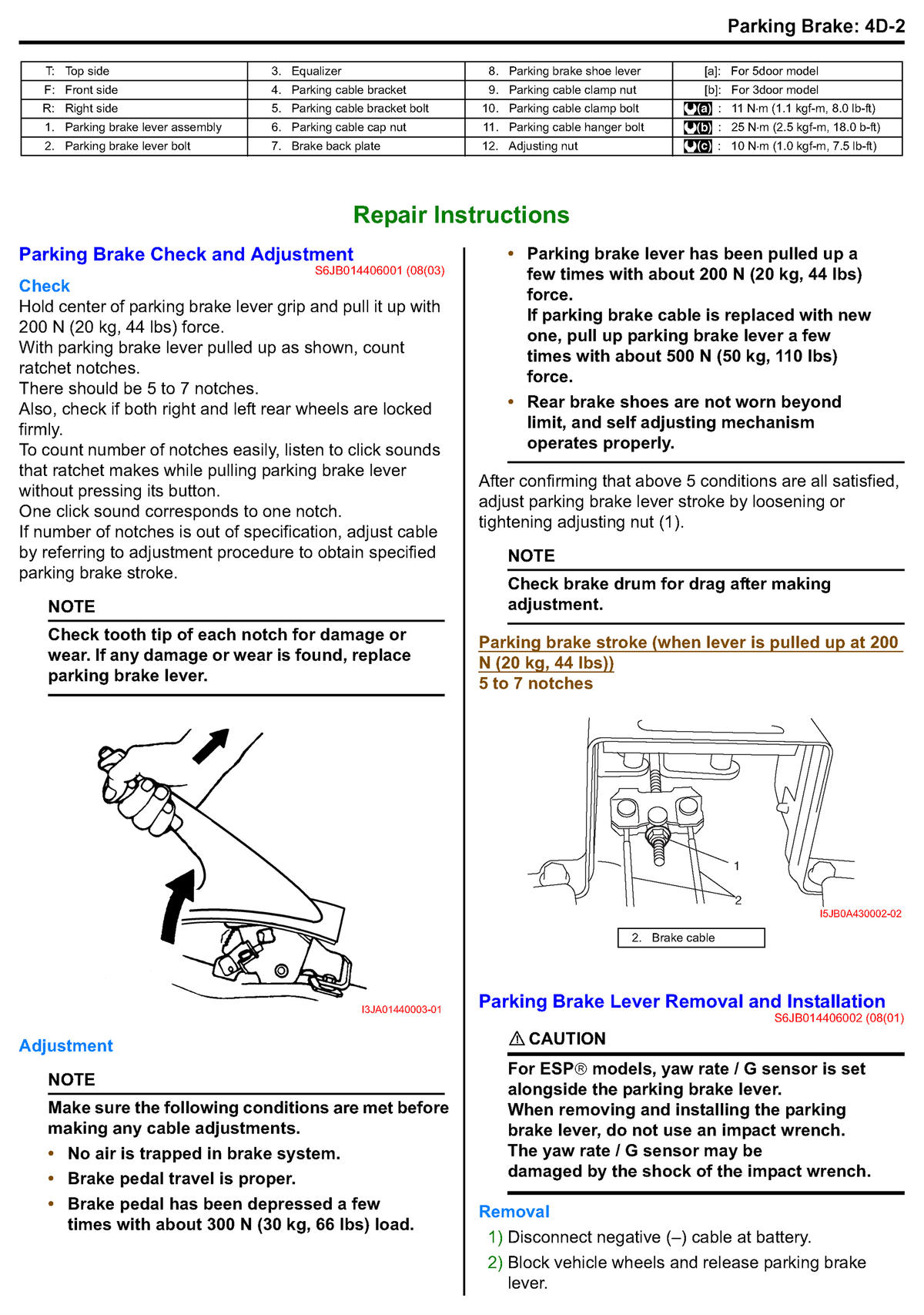

DO NOT use an impact wrench when replacing the parking brake lever. A caution has been added to the repair instructions in the service manual. Please add the attached updated page to the appropriate section of your service manual replacing the current page.
AFFECTED SERVICE MANUALS
AFFECTED SERVICE MANUALS
| Name of Manuals | Part Numbers | Corresponding Pages |
|---|---|---|
| 2006 MY Grand Vitara (JB627) Service Manual | 99500S66J00-33E | 4D-2 |
NOTE:
This update will appear in future printings of the service manuals. If the reprint date on the inside back cover of the manual is later than the issue date of this bulletin, the manual will have been updated.
