Open circuit test

Check for continuity between segments. If there is no continuity at any test point, there is an open circuit and armature must be replaced.

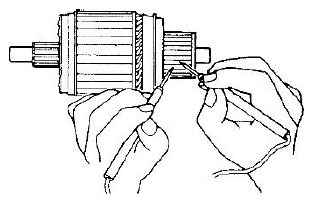

Fig 1: Checking Continuity Between Segments

Courtesy of SUZUKI OF AMERICA CORP.
