TCM Power and Ground Circuit Check

TCM Power and Ground Circuit Check

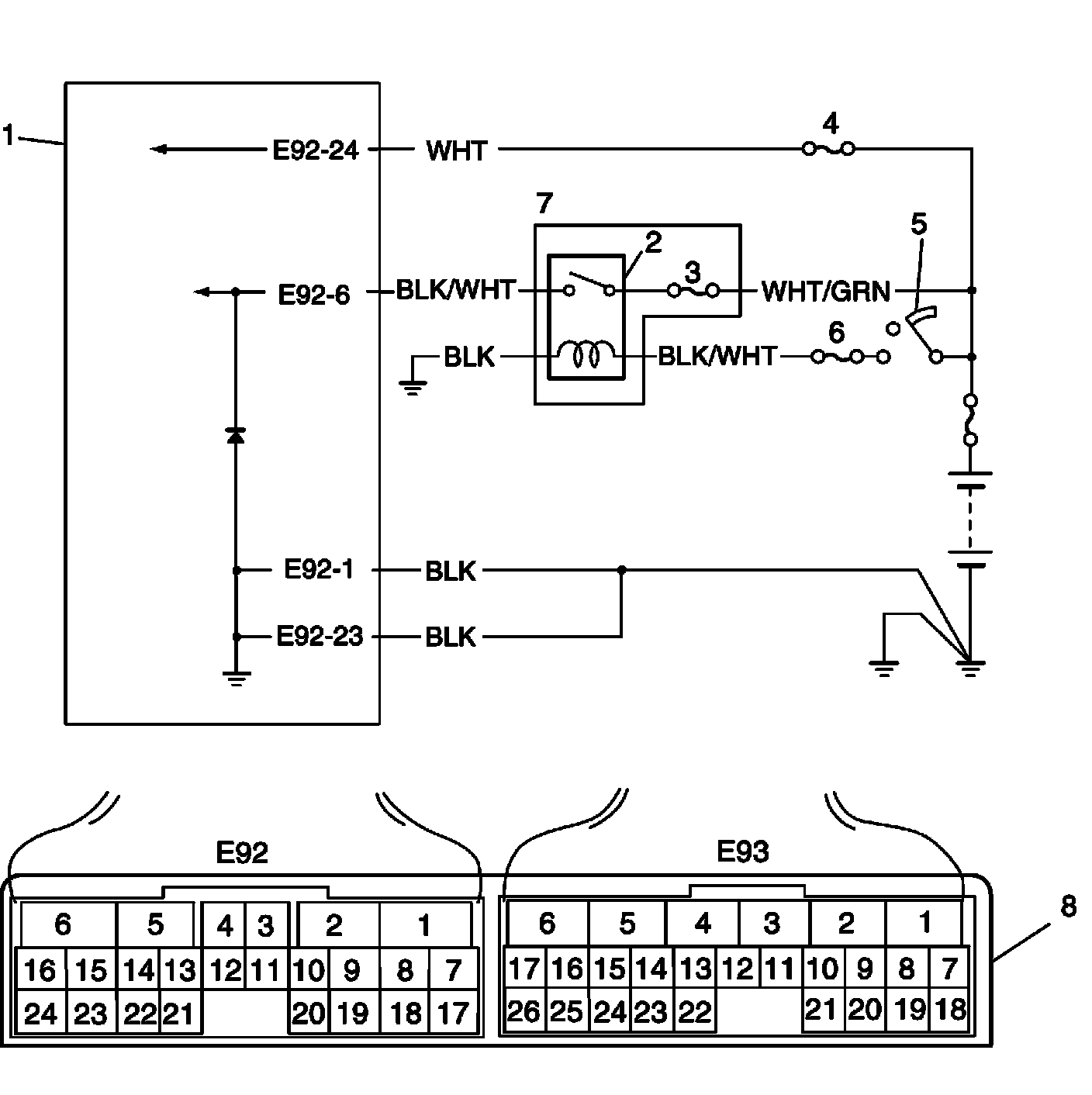

Wiring Diagram

Wiring Diagram:








Troubleshooting

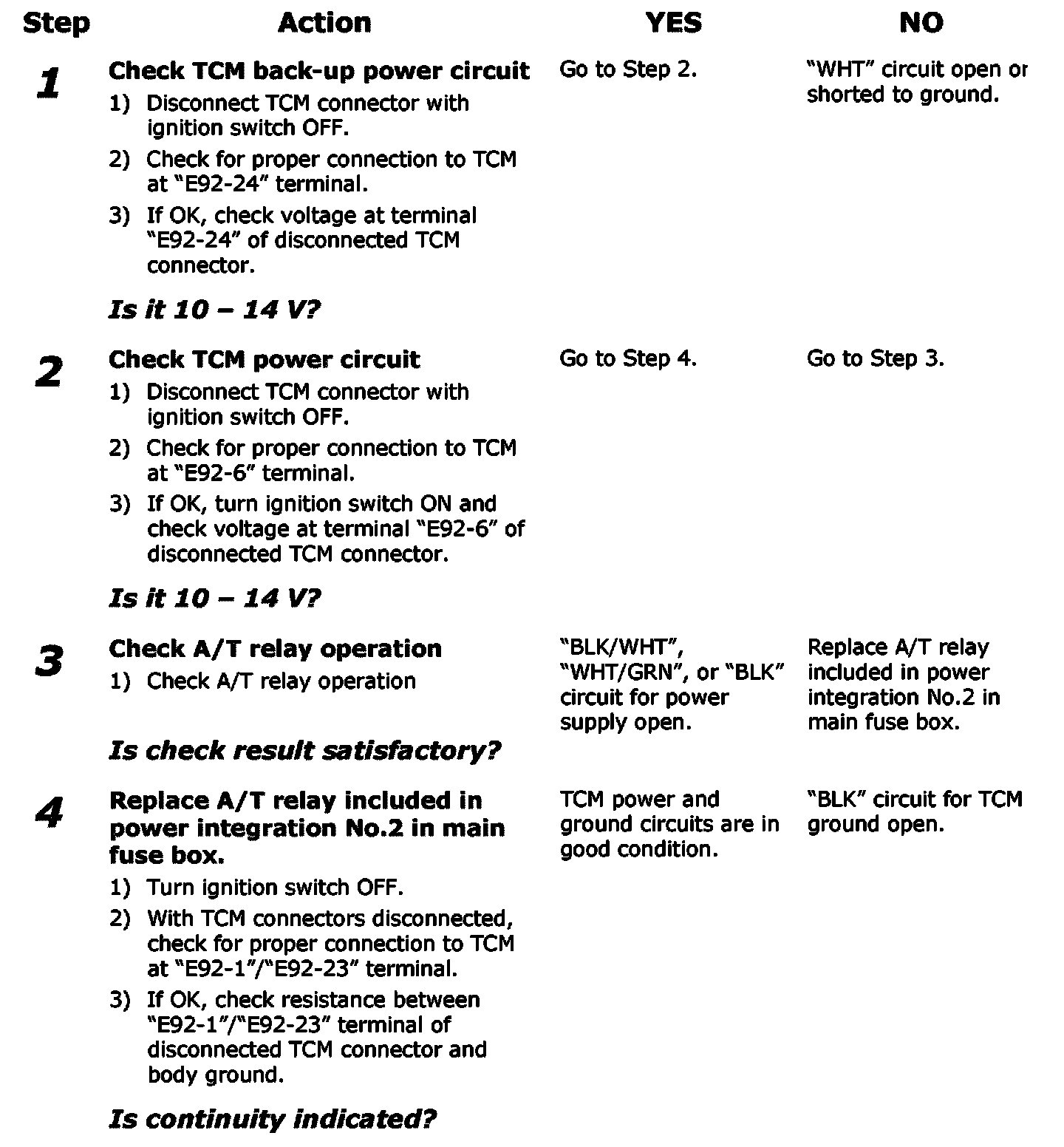

Steps 1-4:
