With Advanced Air Bag

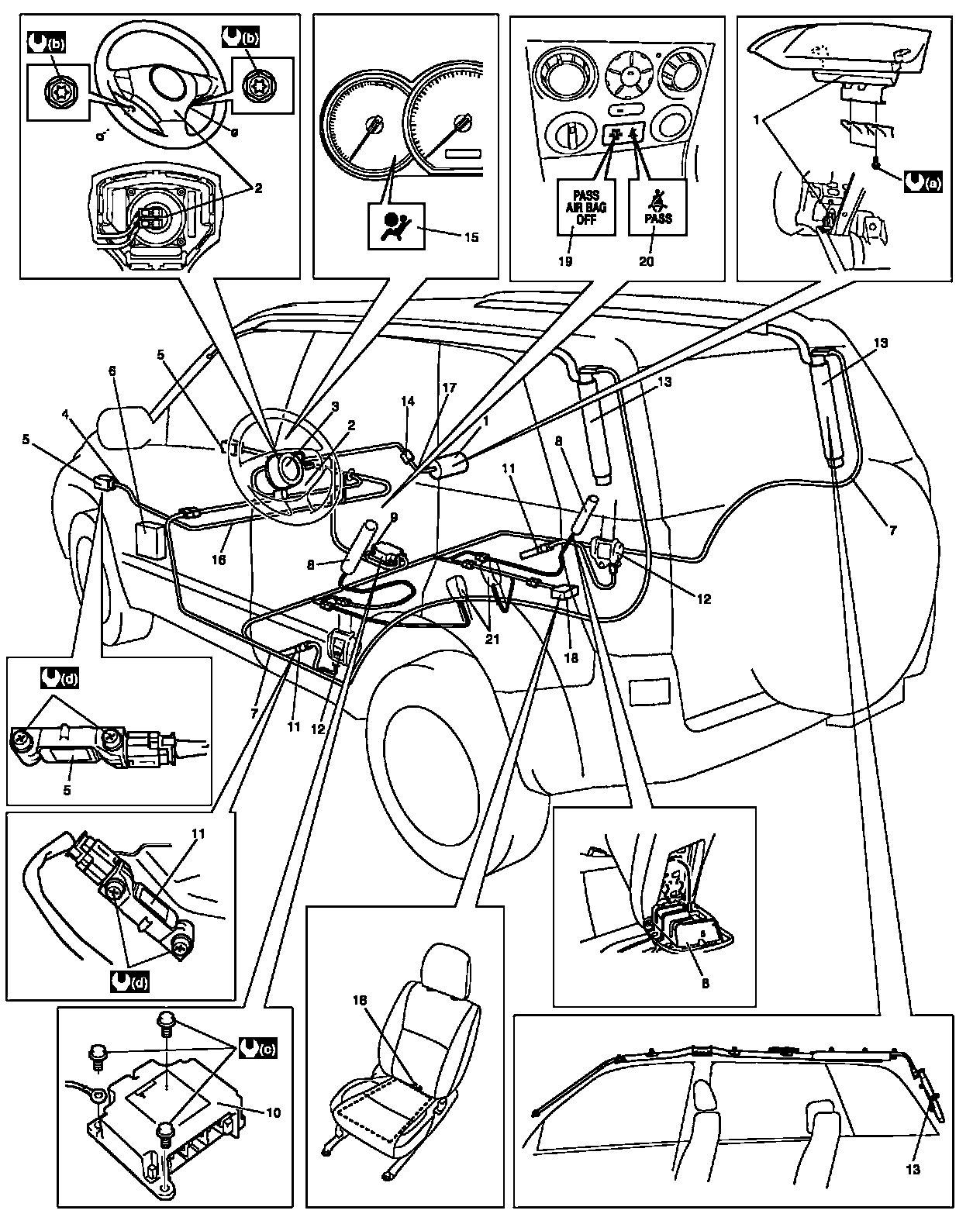

Air Bag System Components, Wiring and Connectors Location View:
Air Bag System Components, Wiring and Connectors Location Table:
