Exhaust System: Locations

Exhaust System Components

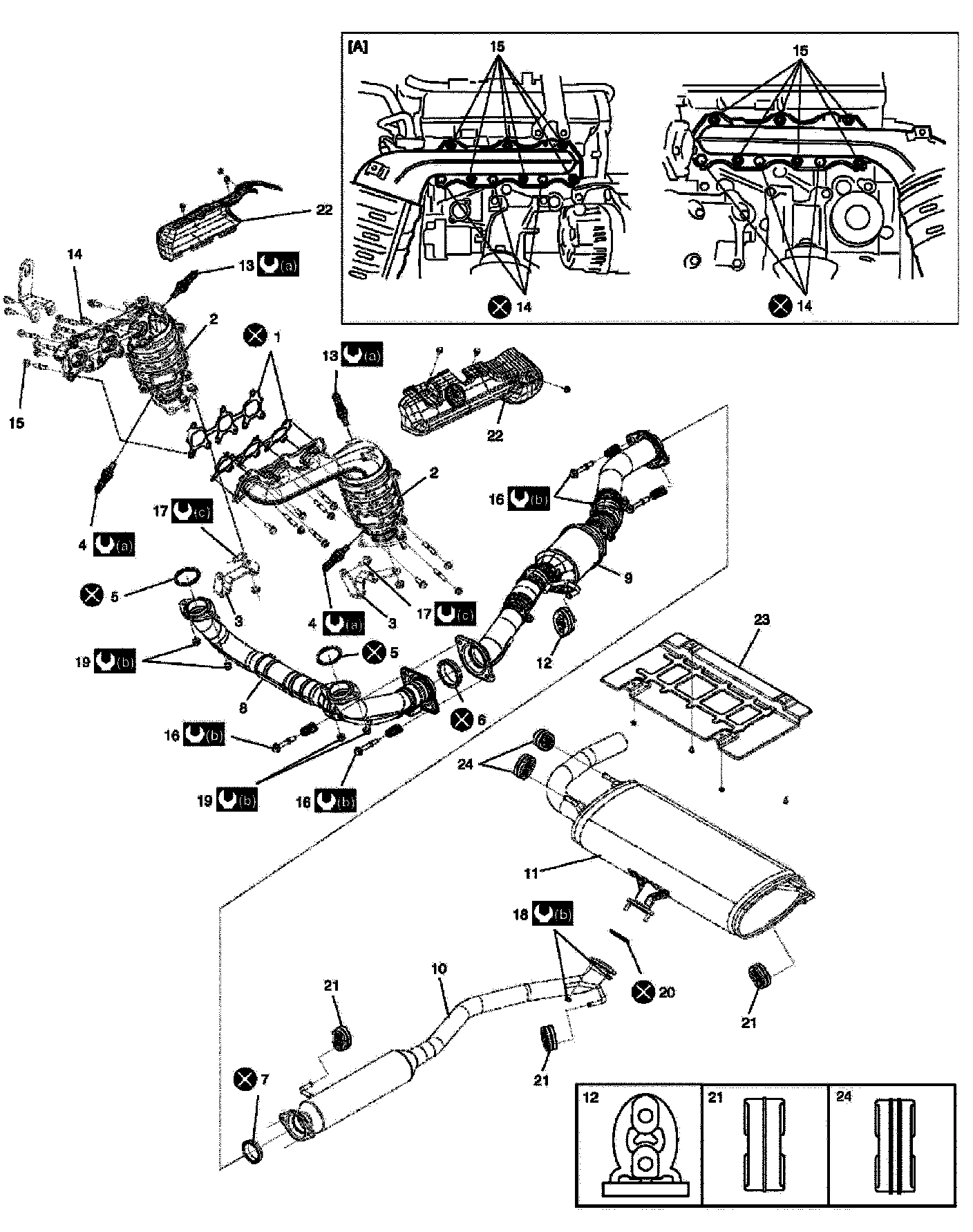

Exhaust System Components 1:

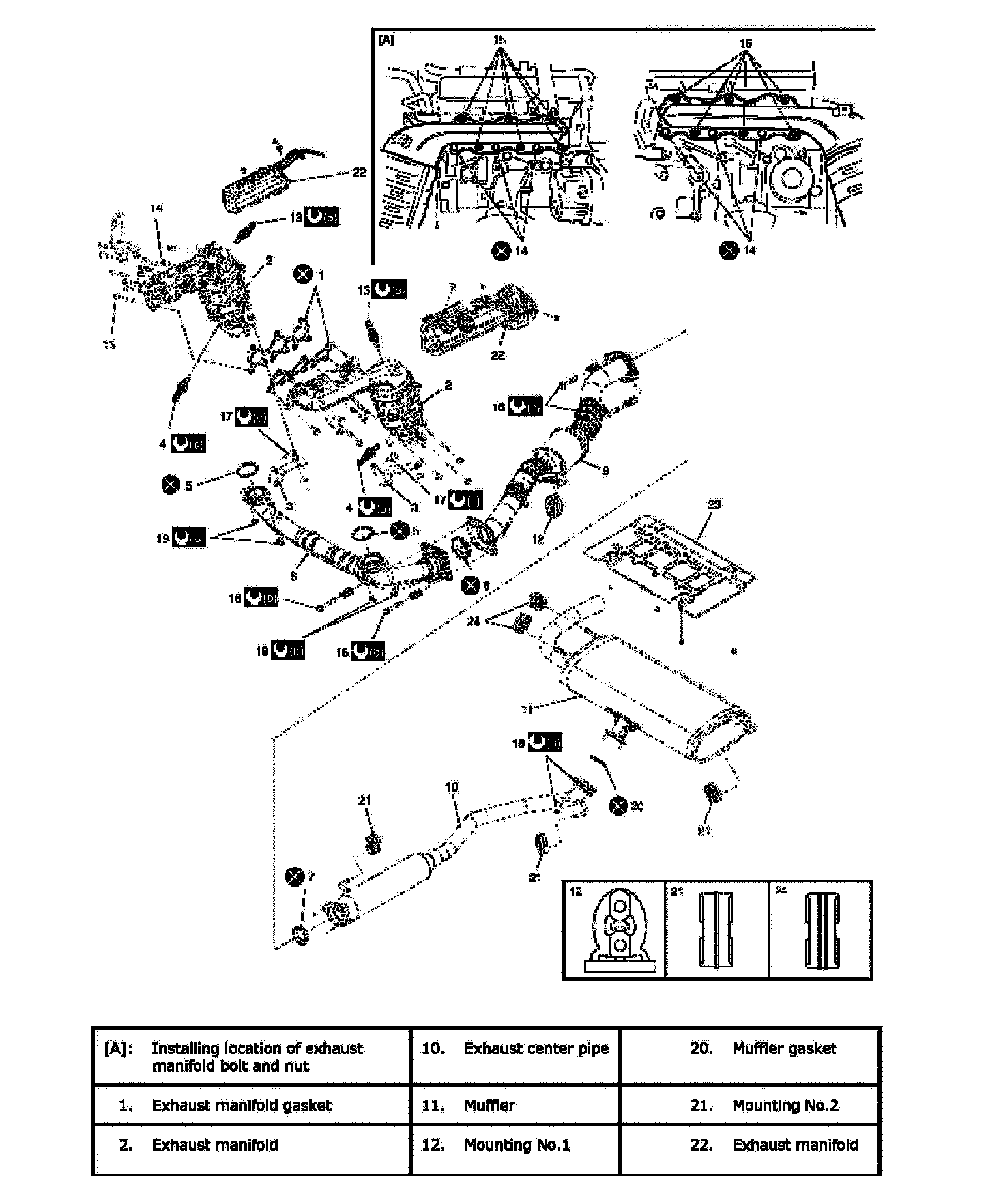

Exhaust System Components 2:

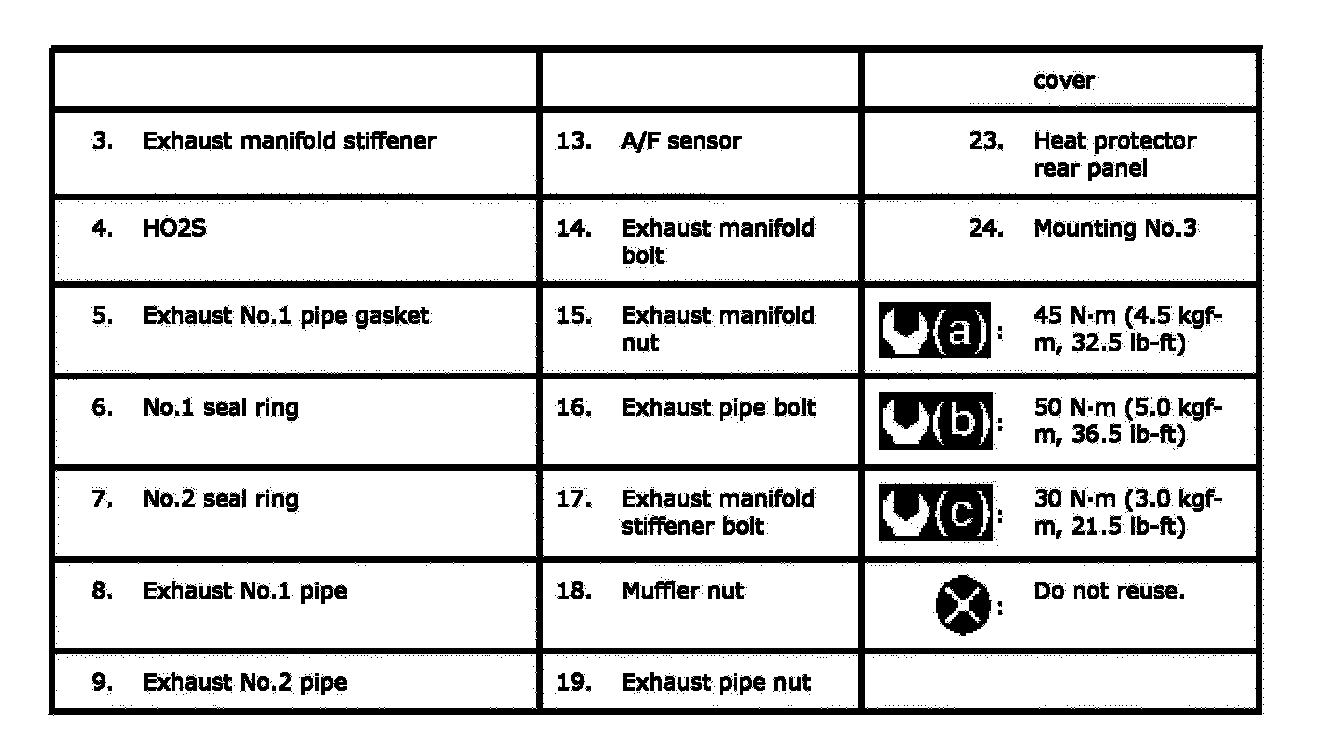

Exhaust System Components 3:
