K Connectors

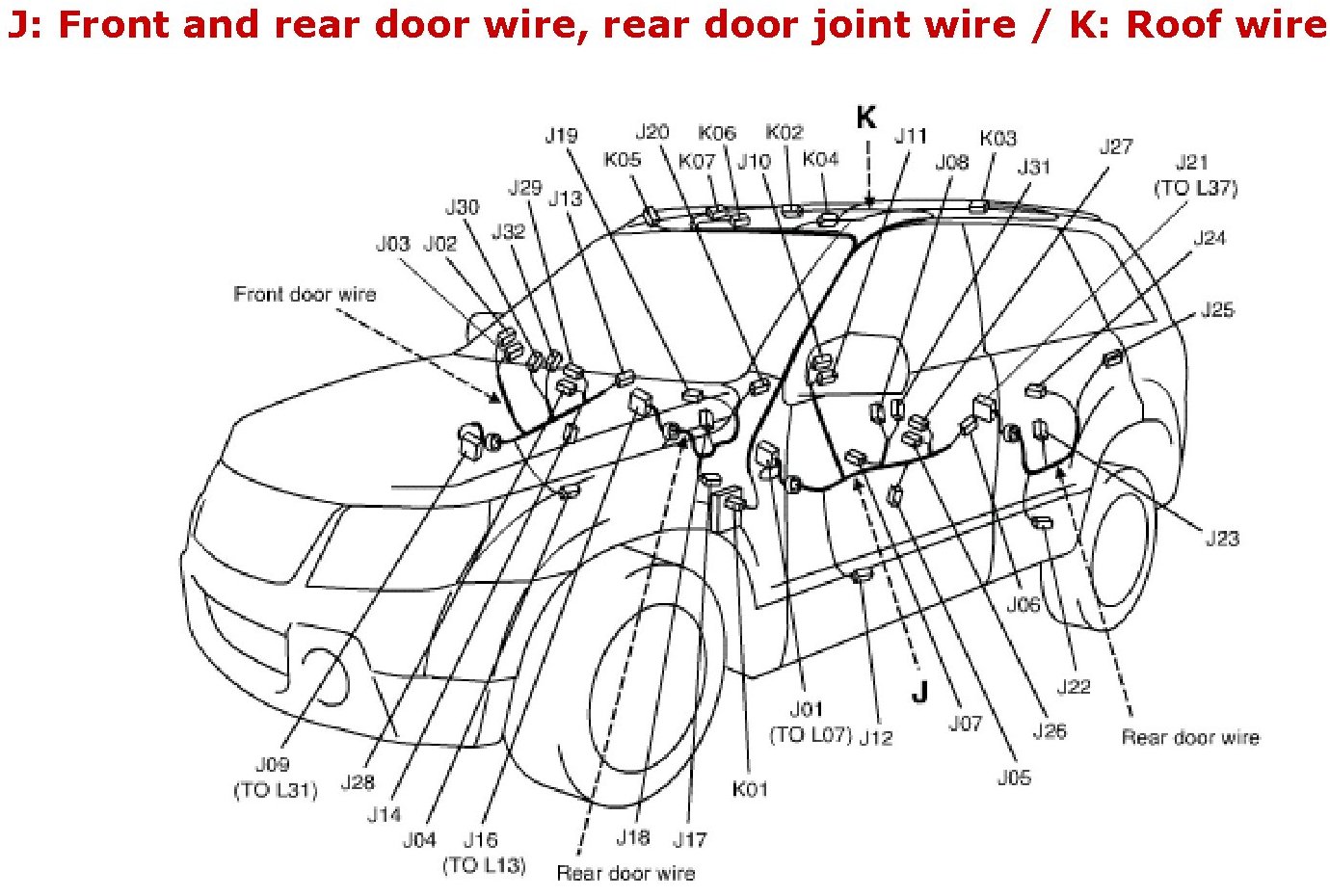

J Front And Rear Door Wire, Rear Door Joint Wire / K Roof Wire View:
K: Roof Wire Index:
