Keyless Entry: Locations

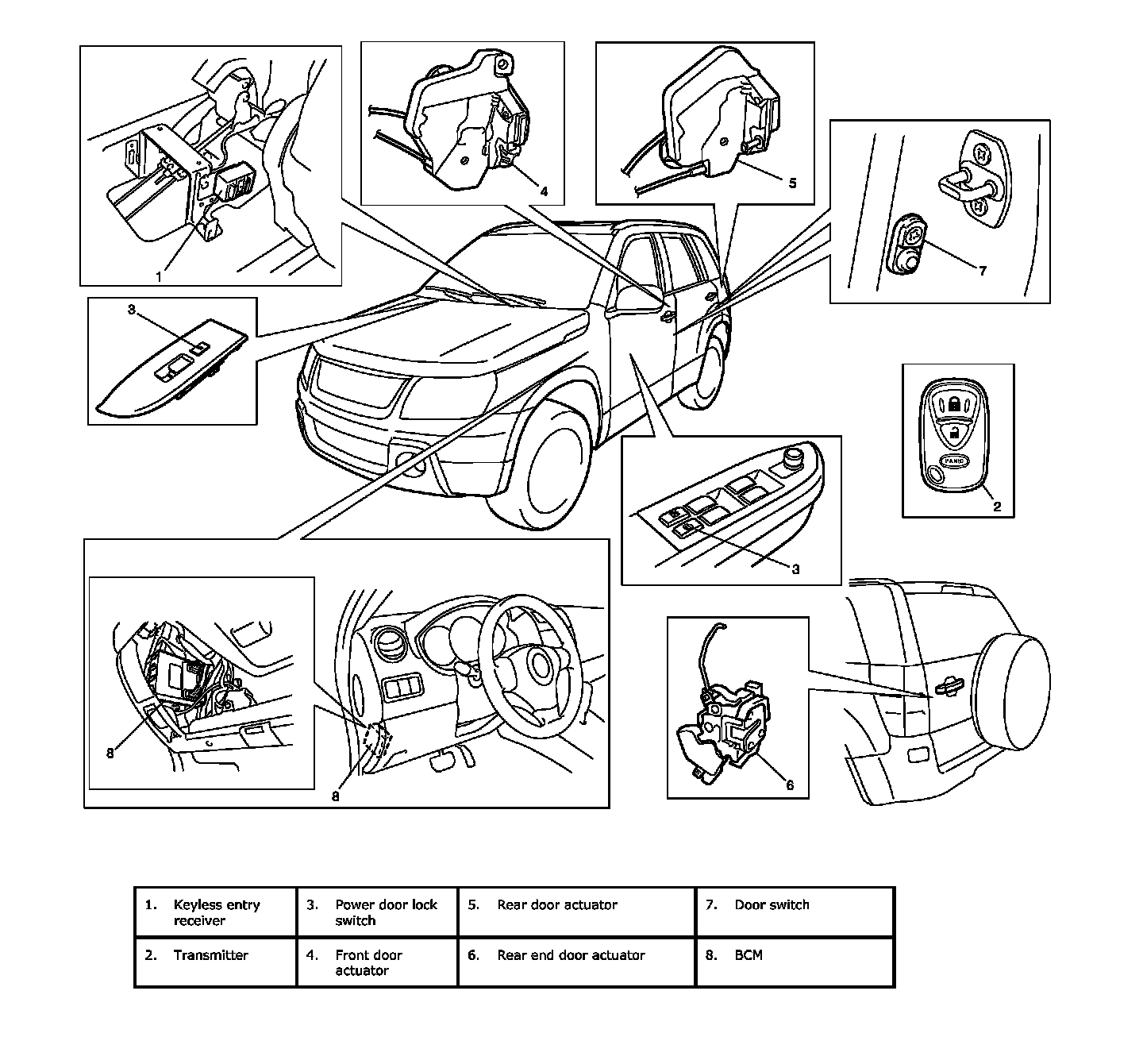

Power Door Lock And Keyless Entry System Component Location:

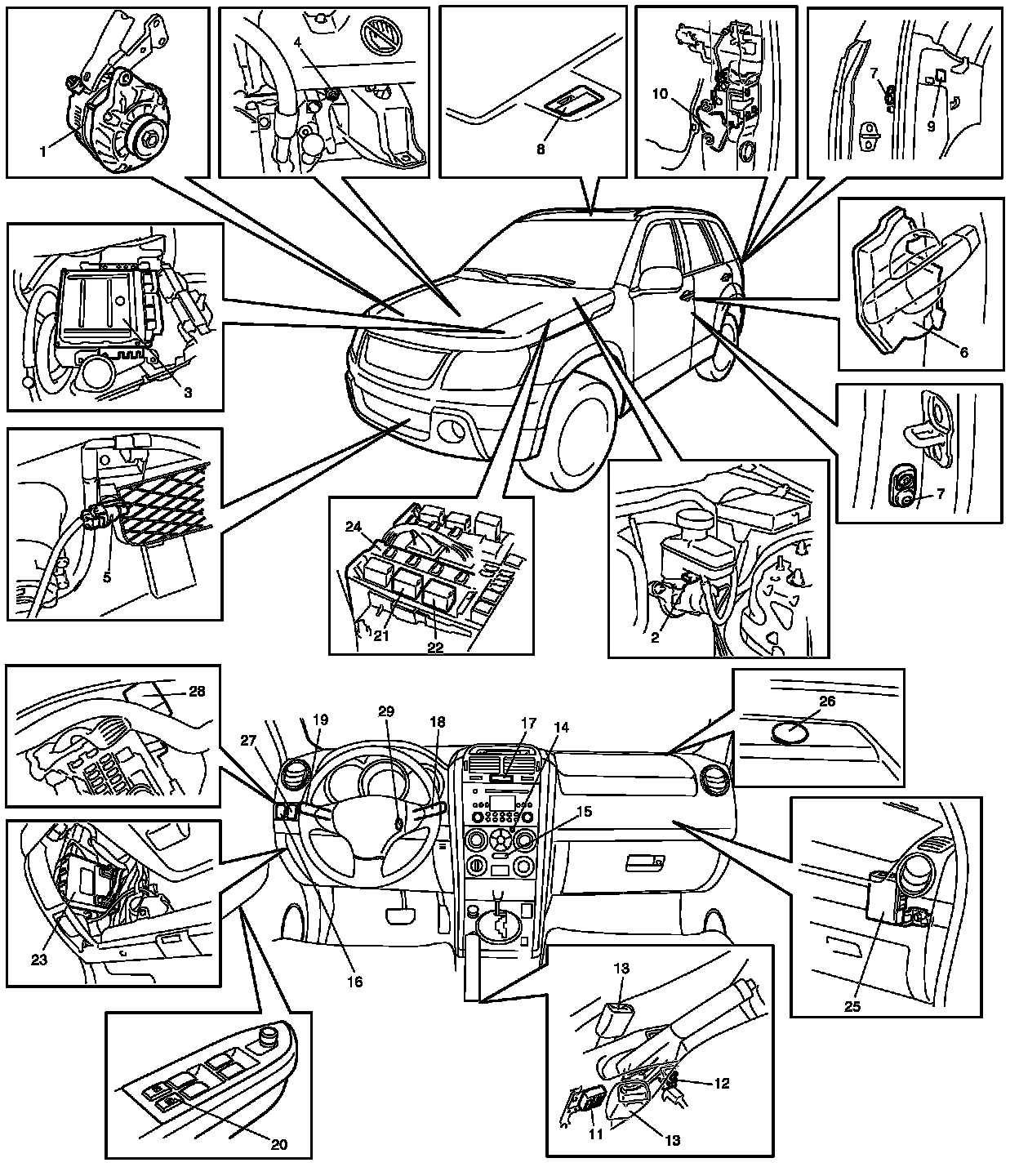

BCM And Related System Component Location Part 1:

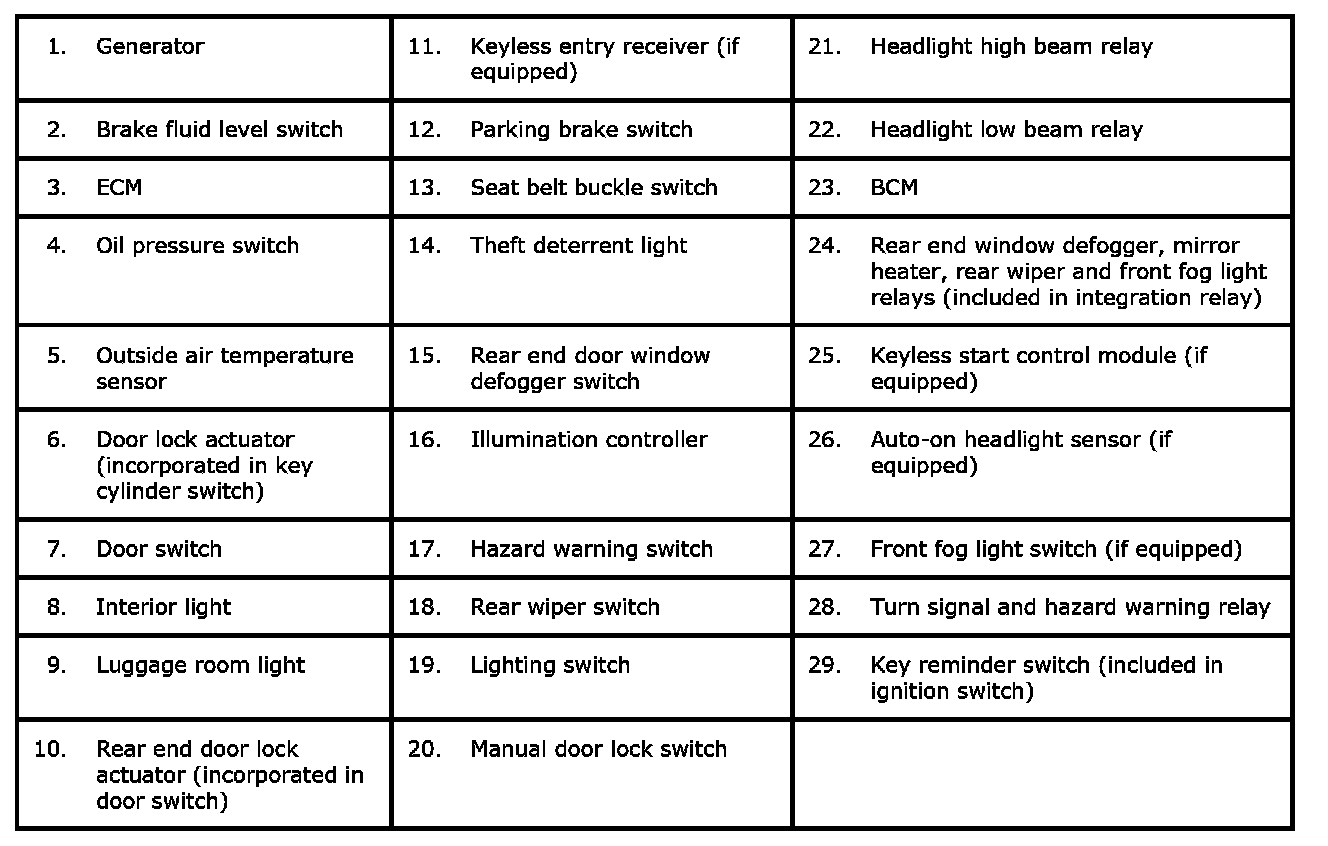

BCM And Related System Component Location Part 2:
