Front Differential Dismounting and Remounting

Front Differential Dismounting and Remounting
Dismounting
1. Lift up vehicle and drain front differential oil.
2. Remove front drive shafts.
3. Remove front suspension frame with front differential.

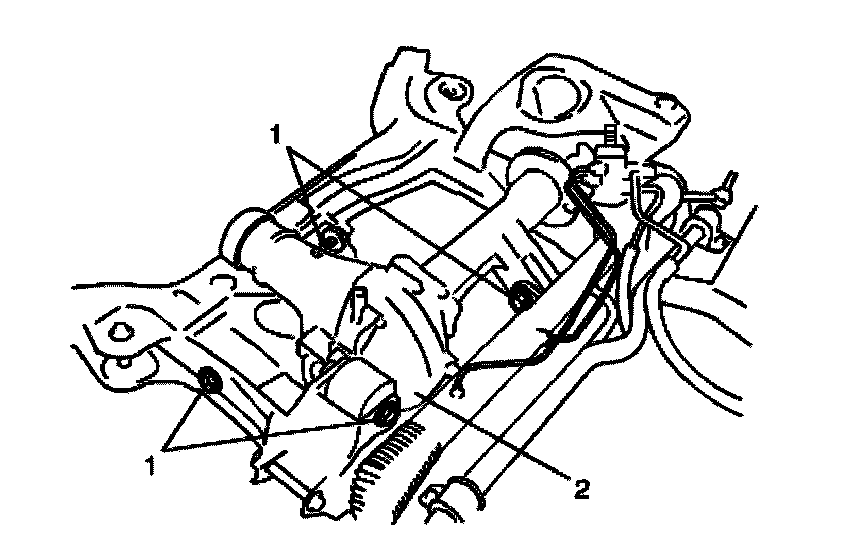

4. Remove mounting bolts (1), and then take off front differential from front suspension frame (2).





Remounting
Reverse dismounting procedure for remounting noting the following.
^ Tighten each bolts and nuts.
^ Fill front differential oil.
