Clutch Drum & Input Shaft Assembly Components

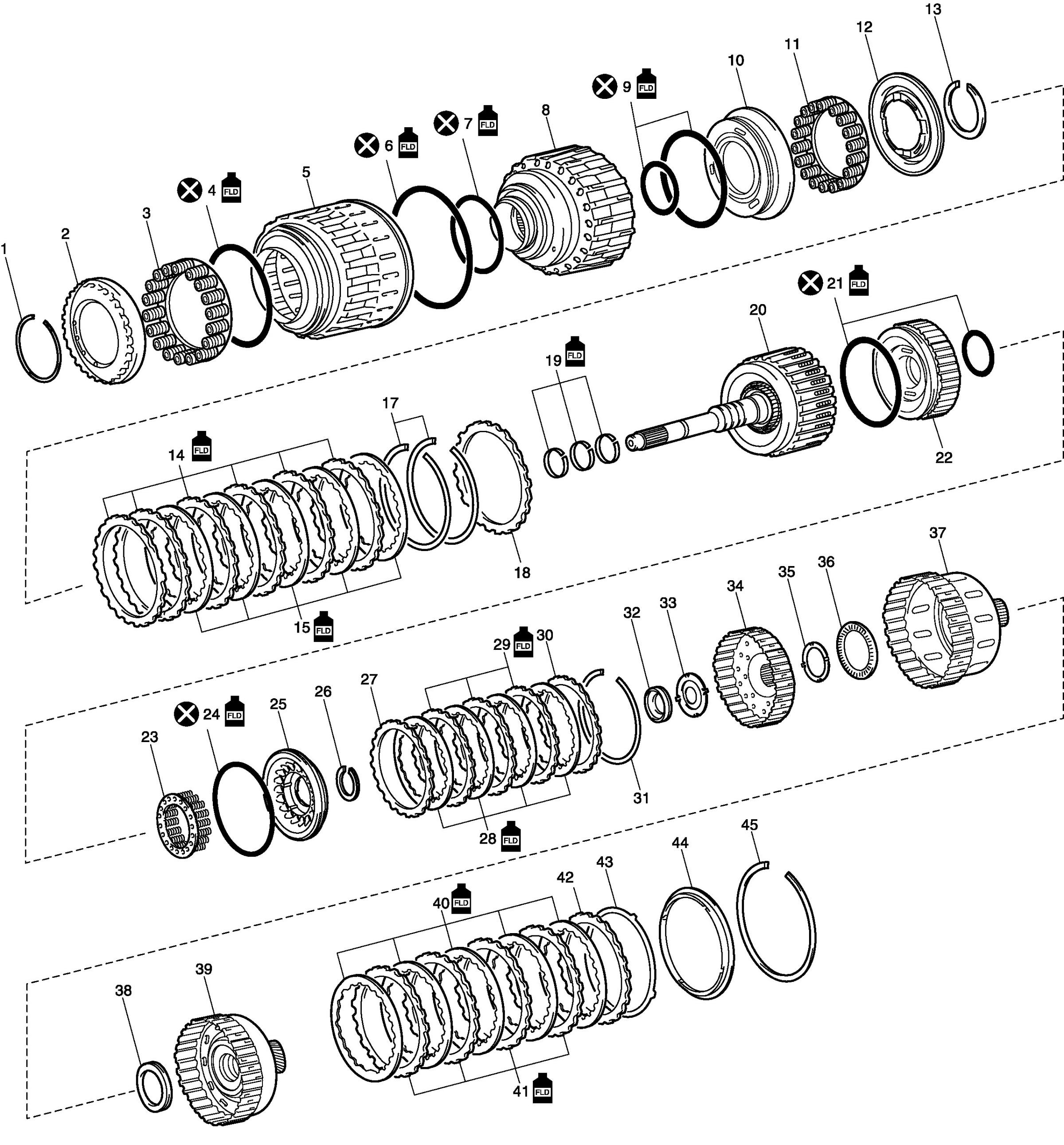

Clutch Drum & Input Shaft Assembly Components (part 1):



Clutch Drum & Input Shaft Assembly Components (part 2):
