"4" Position Switch Inspection
"4" Position Switch Inspection1. Disconnect negative cable at battery.
2. Remove front console box.
3. Disconnect manual selector connector (1).

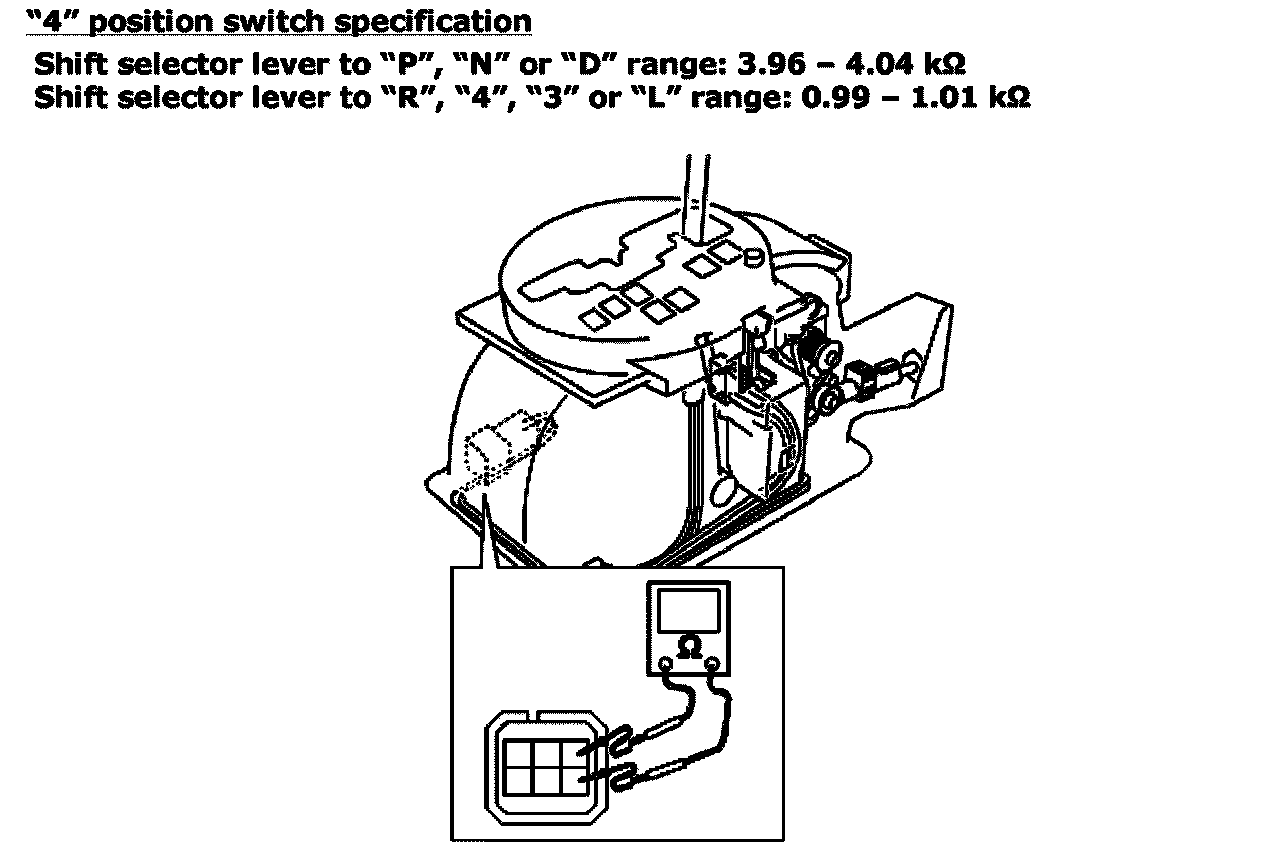

4. Measure resistance between 4 position switch terminals.
1. Disconnect negative cable at battery.
2. Remove front console box.
3. Disconnect manual selector connector (1).
4. Measure resistance between 4 position switch terminals.
