Restraints - Air Bag Inflator Module Connector Color
GRAND VITARASection Title: Restraints
TSB No. TS 04 02128
Division: Automotive
Category: Technical
SUBJECT:
SERVICE MANUAL UPDATE: CORRECTION OF AIRBAG SYSTEM INFLATOR MODULE CONNECTOR COLOR
MODEL(S):
GRAND VITARA (JB627)
YEAR:
2006~2007
CONDITION:
The connector color for the inflator module is described incorrectly in the service manual.
CAUSE:
N/A
CORRECTION:

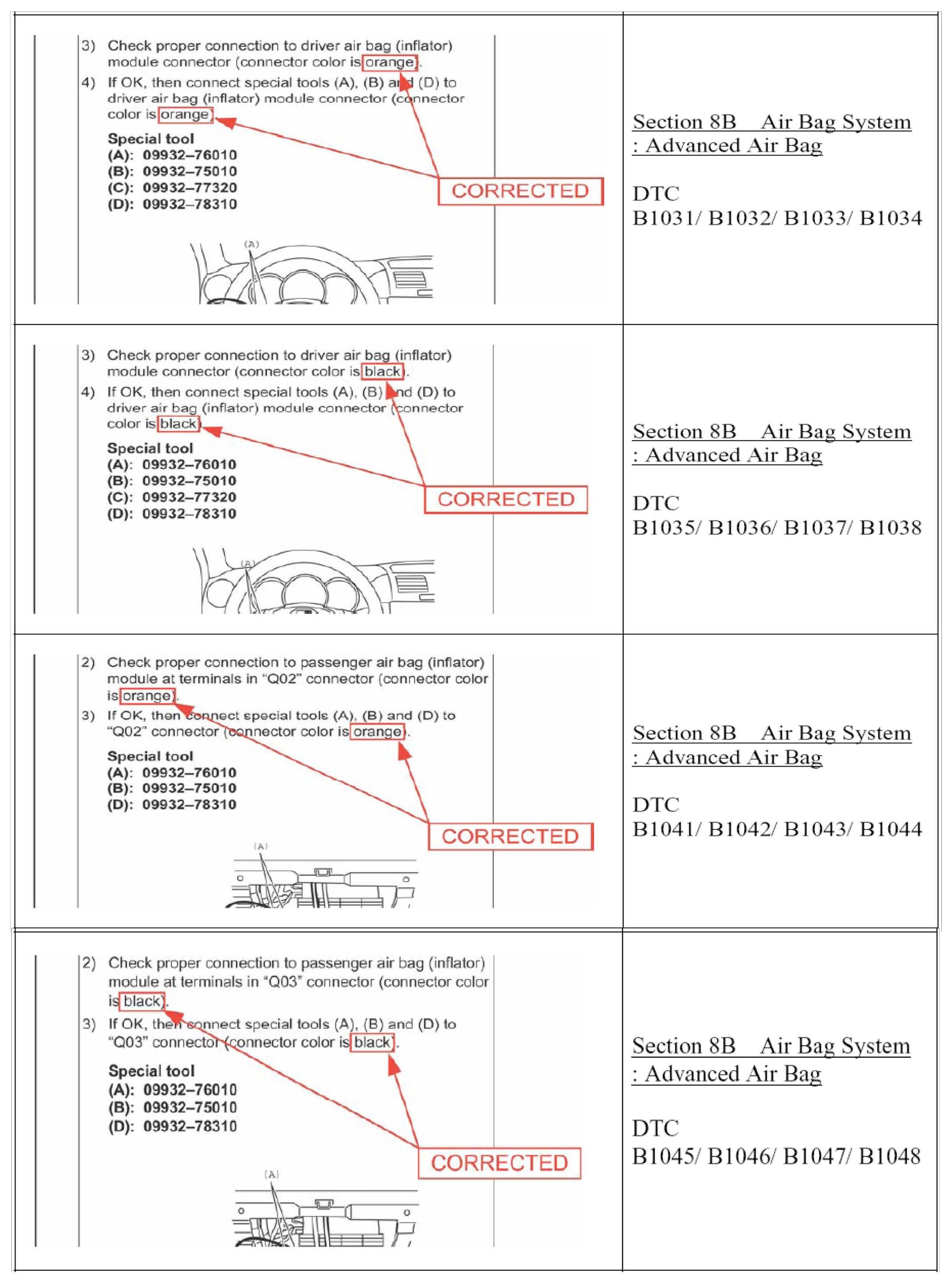

Please correct the inaccurate information in your service manual, or insert a copy of the attached page into your service manual, and refer to the above image for correct connector color when diagnosing DTC B1031, B1032, B1033, B1034, B1035, B1036, B1037, B1038, B1041, B1042, B1043, B1044, B1045, B1046, B1047, and B1048.
NOTE:
These updates will appear in future printings of the service manuals. If the reprint date on the inside back cover of the manual is later than the issue date of this bulletin, the manual will have been updated.
AFFECTED SERVICE MANUAL(S)
NOTE:
These updates will appear in future printings of the service manuals. If the reprint date on the inside back cover of the manual is later than the issue date of this bulletin, the manual will have been updated.
