Starting System - Wiring Diagram Revision

Division: Automotive

Category: Technical

Section Title: Body, Cab & Accessories

TSB No. TS 15 01126

SUBJECT:
SERVICE MANUAL UPDATE: CRANKING SYSTEM WIRING DIAGRAM

MODEL(S):
GRAND VITARA (JB627)

YEAR:
2006

CONDITION:

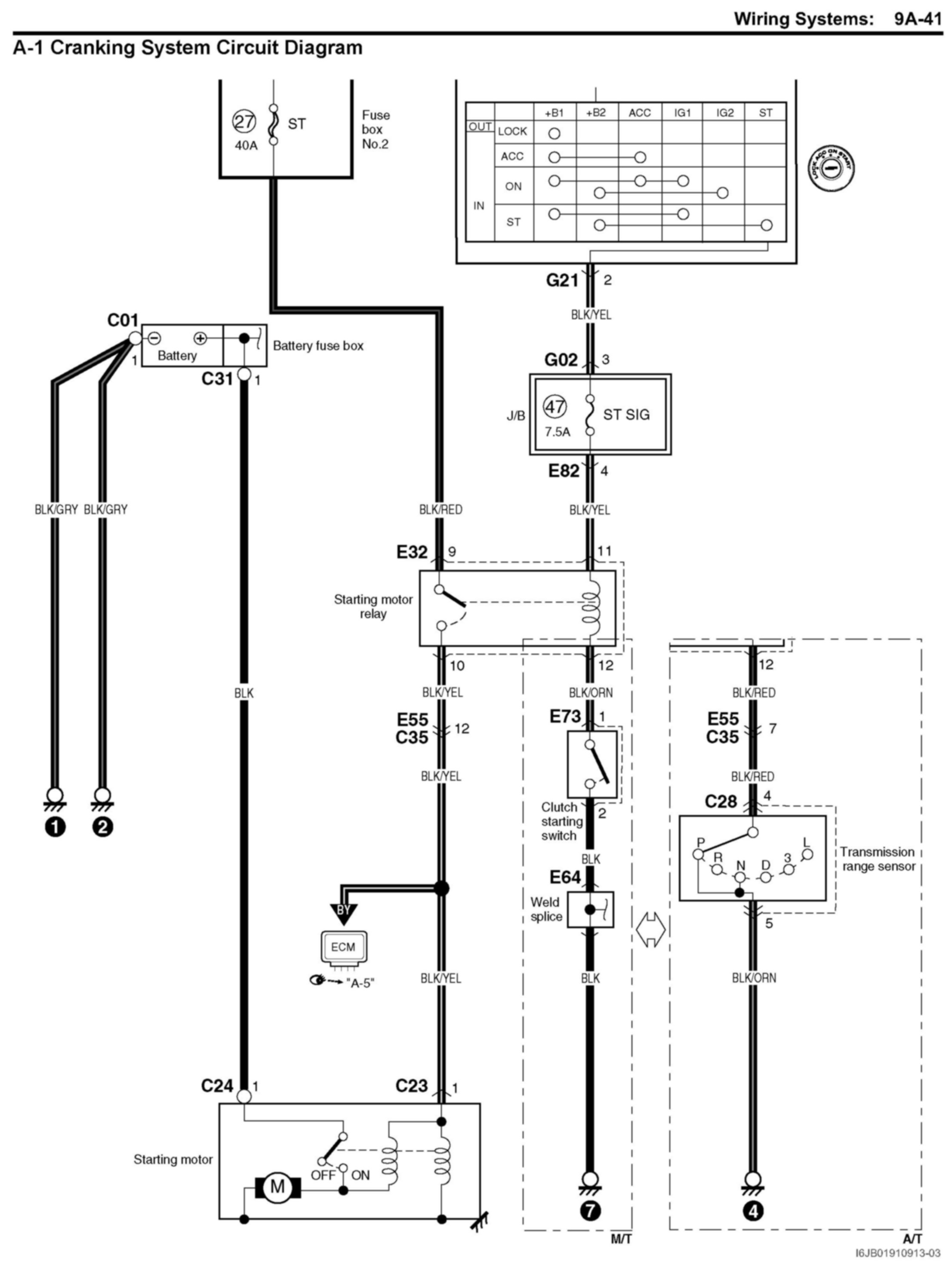

Cranking system wiring diagram has been changed.

CAUSE:
N/A

CORRECTION:





Please add the page shown to the appropriate section of your printed service manuals and disregard the old page.





AFFECTED SERVICE MANUAL(S)

NOTE:
These updates will appear in future printings of the service manuals. If the reprint date on the inside back cover of the manual is later than the issue date of this bulletin, the manual will have been updated.
