Malfunction Indicator Lamp

Malfunction Indicator Lamp Remains ON after Engine Starts

Wiring Diagram and Circuit Description
Refer to Malfunction Indicator Lamp Does Not Come ON with Ignition Switch ON and Engine Stop (but Engine Can Be Started). Malfunction Indicator Lamp Does Not Come on With Ignition Switch on and Engine Stop (But Engine Can Be Started)

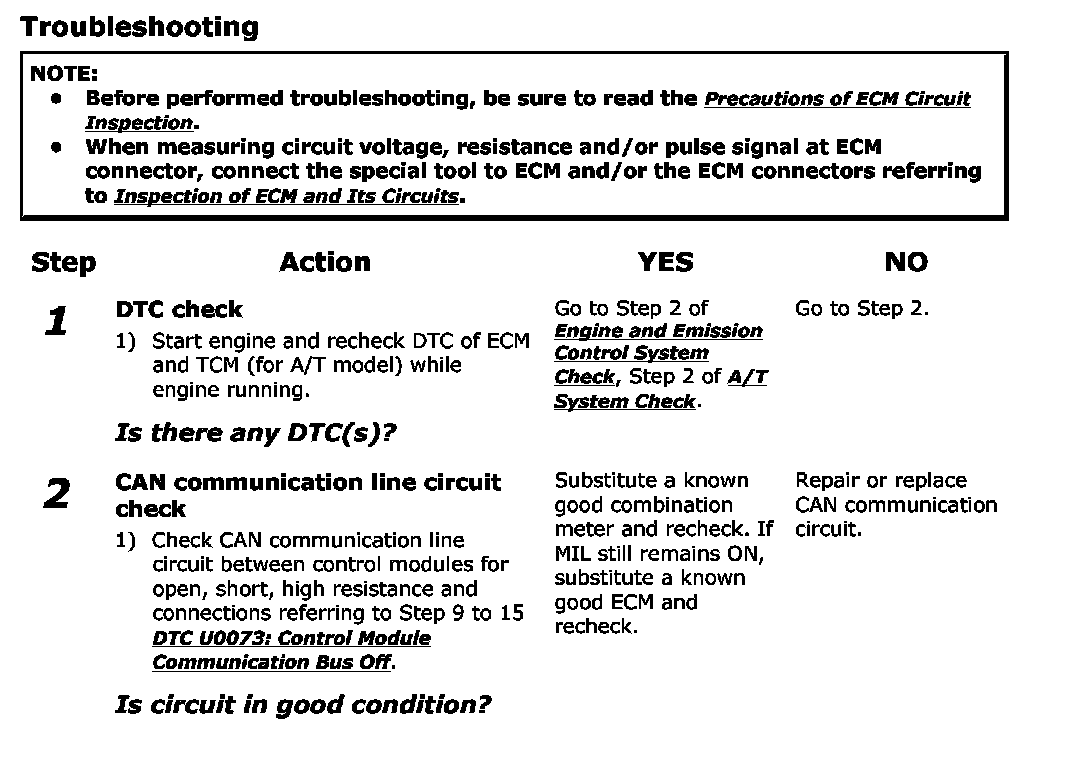

Step 1 - 2:

Troubleshooting
