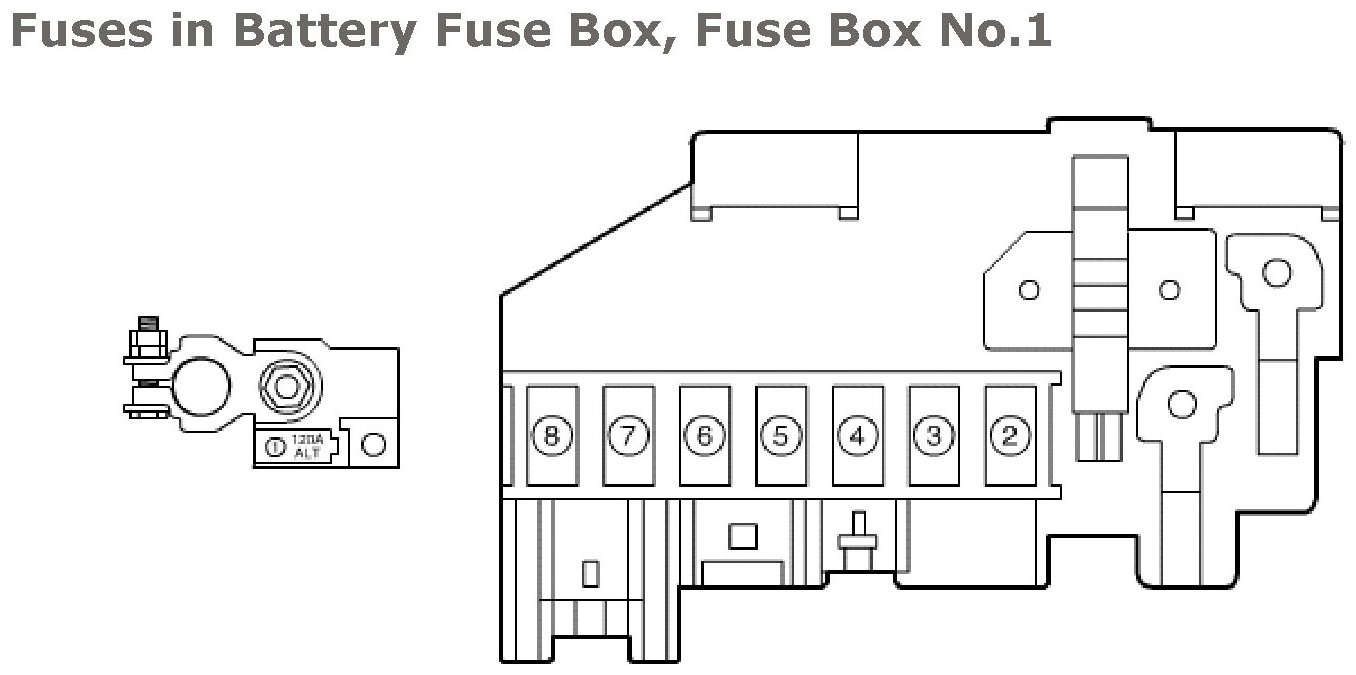

Fuse: Locations

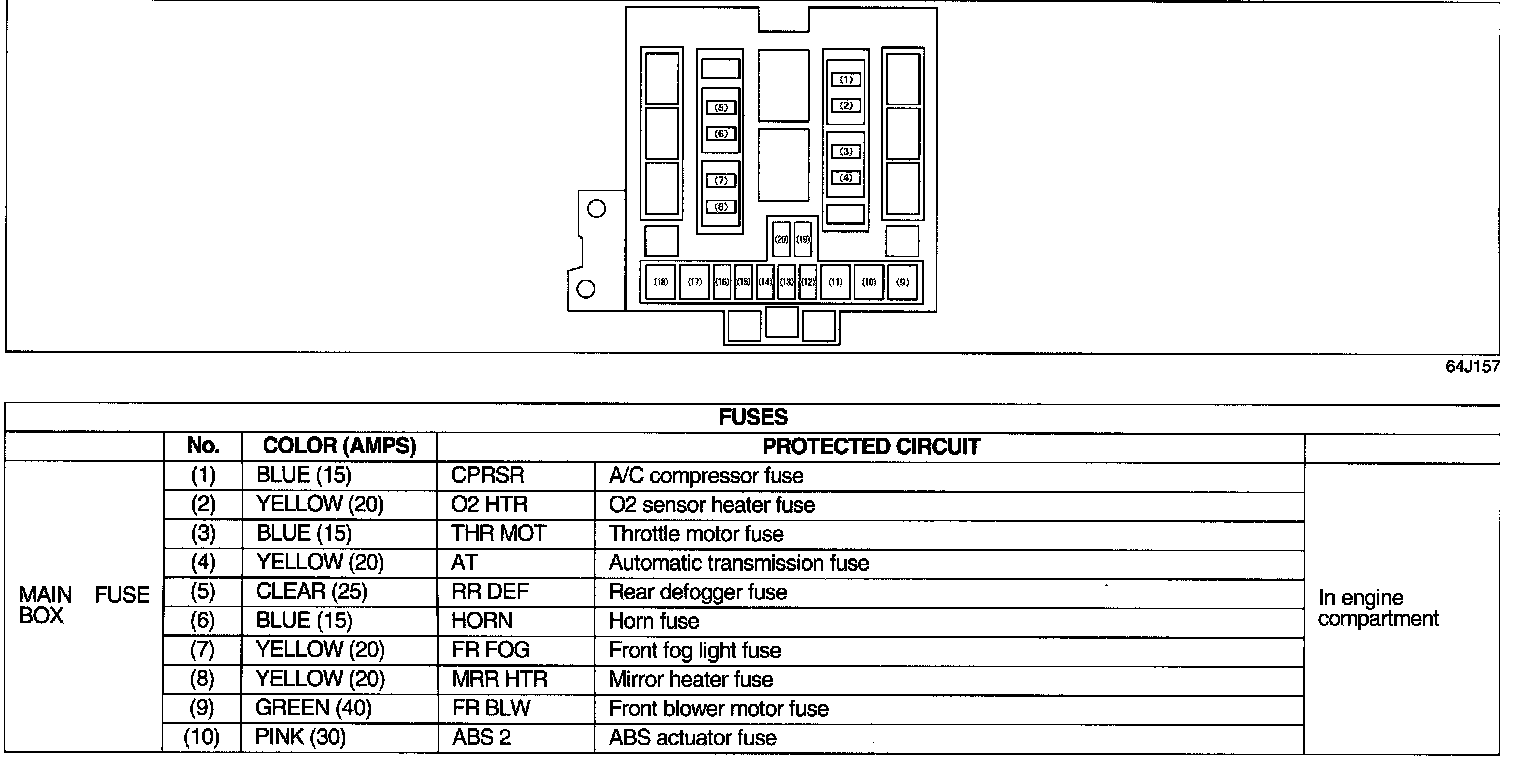

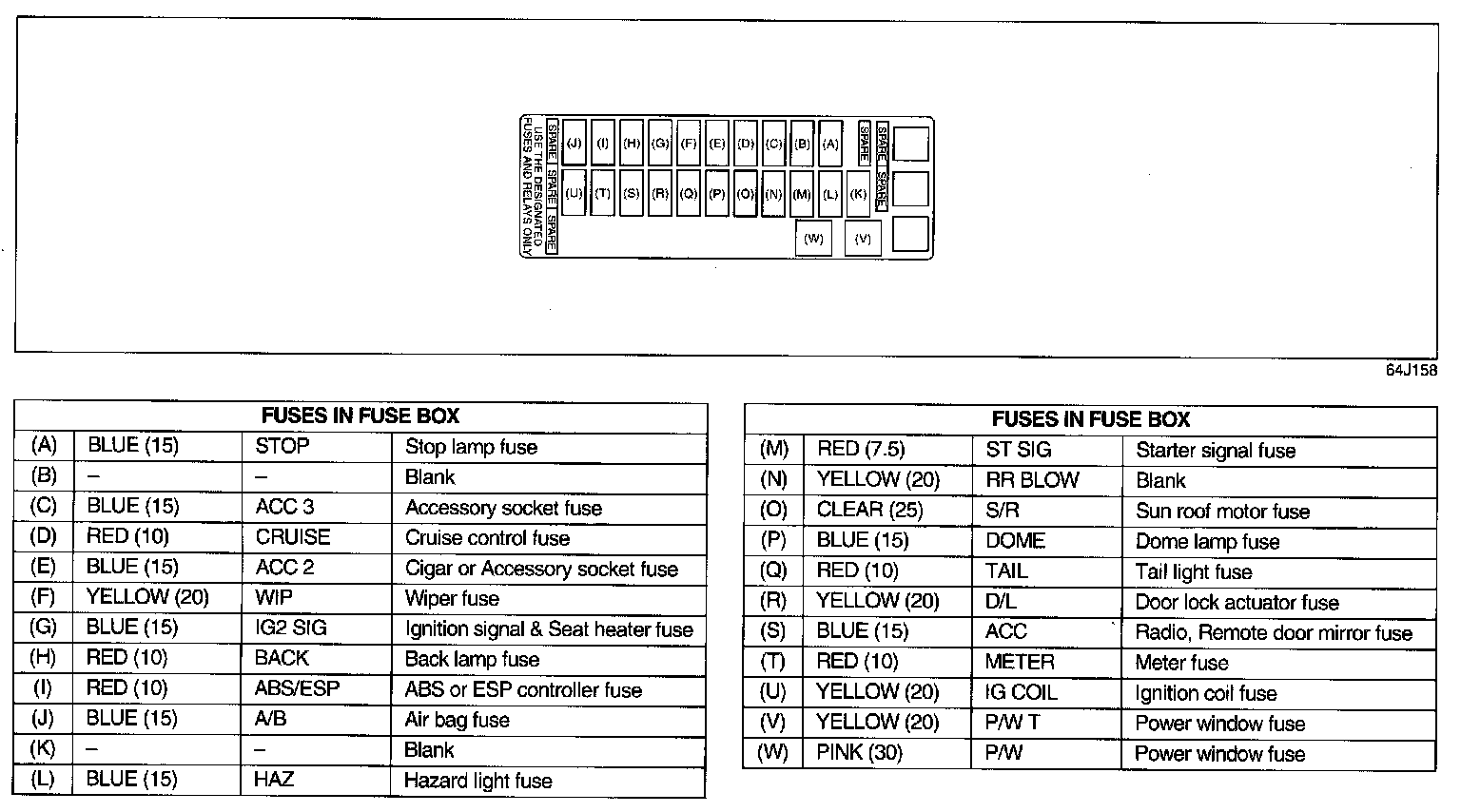

Application Table:





Application Table:





Application Table:



Application Table:

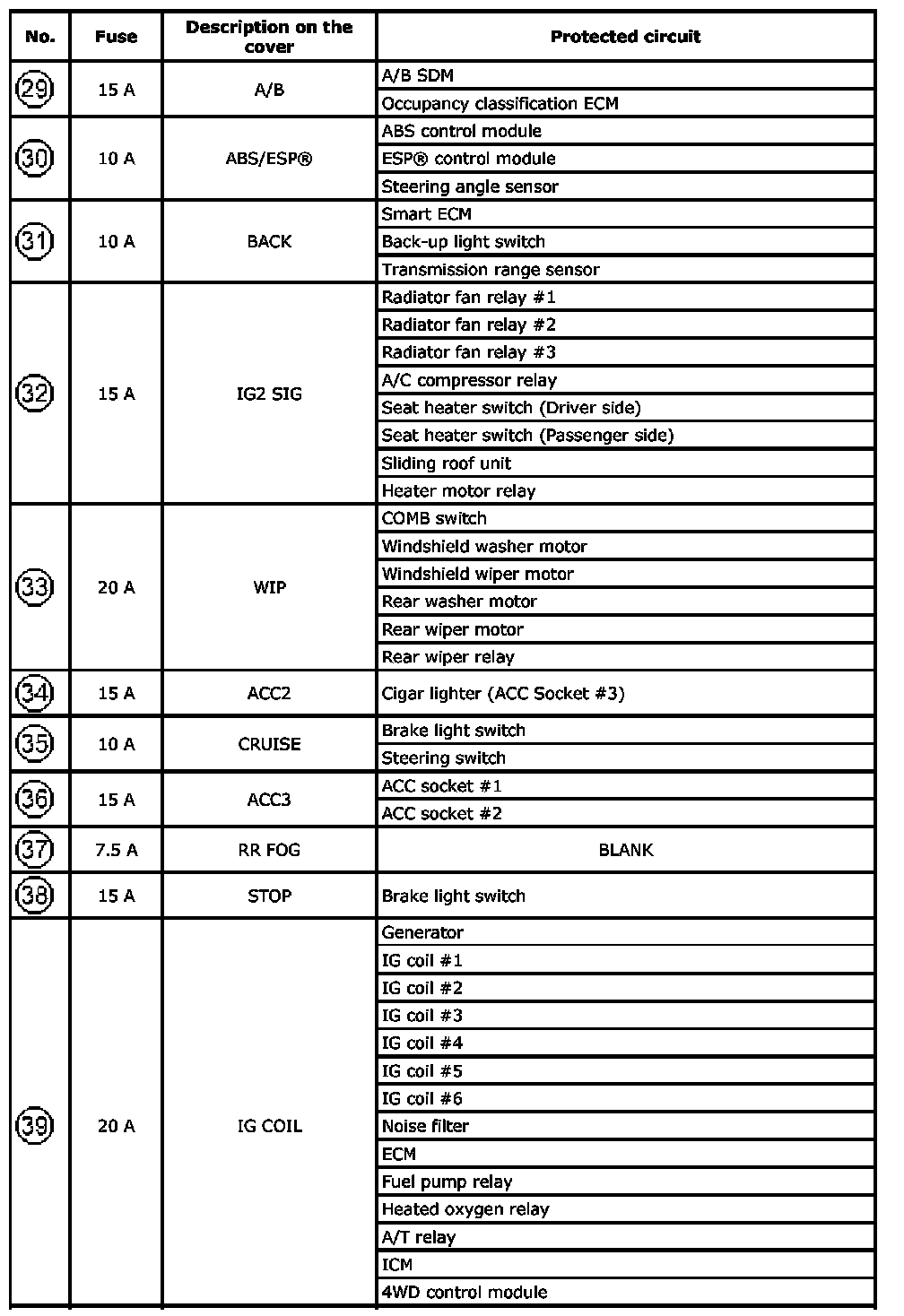

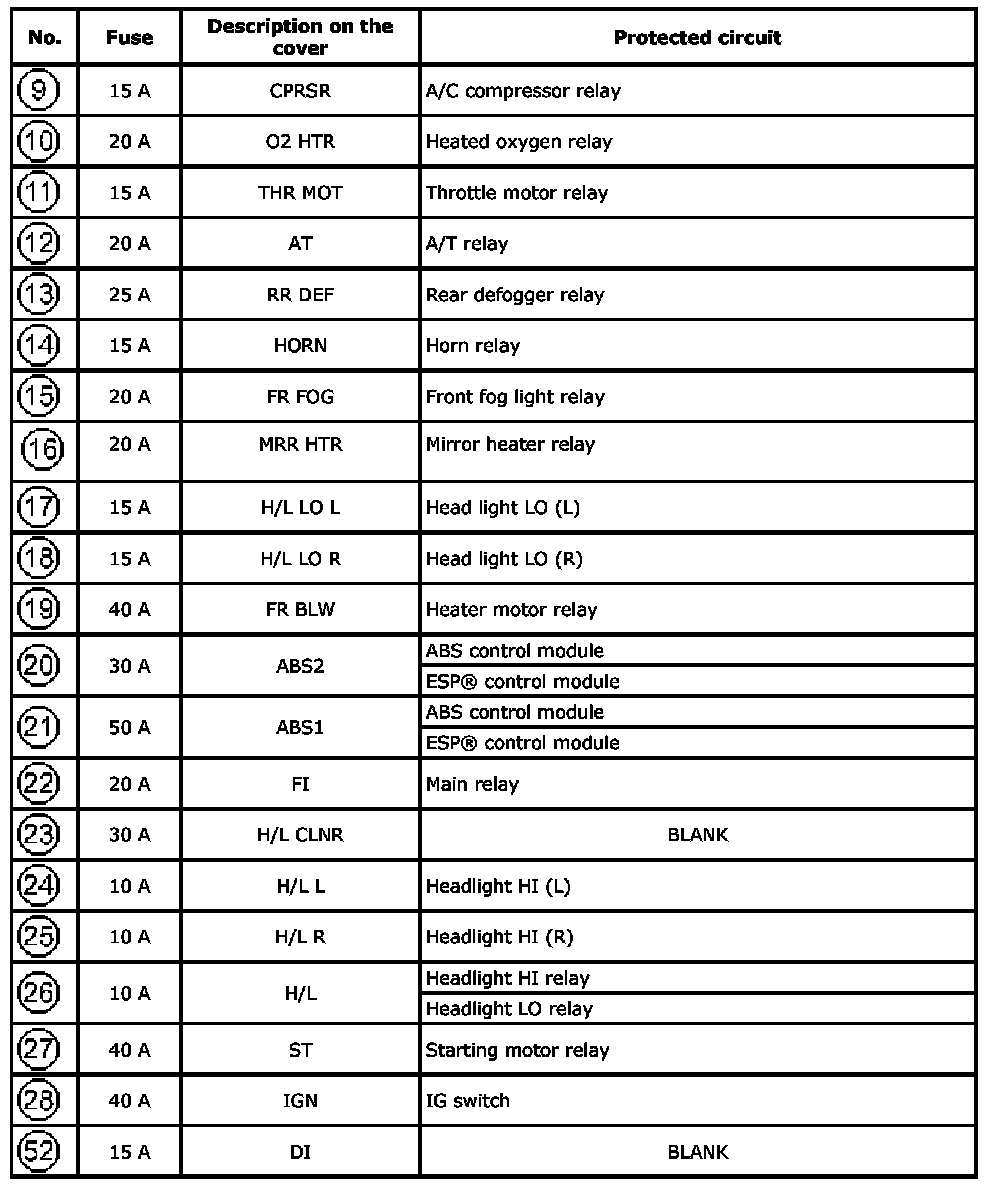

Fuses And Protected Circuits:

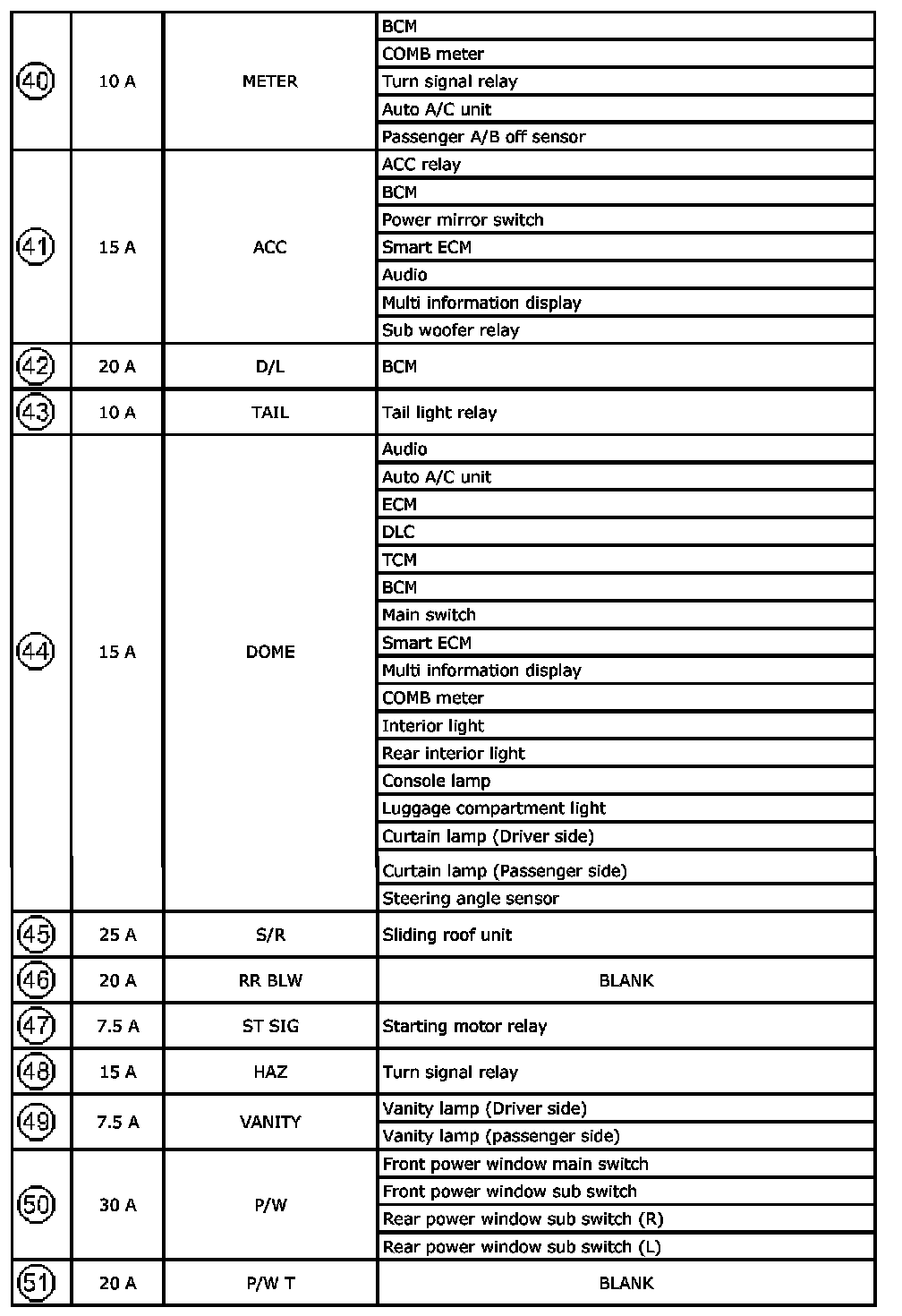

Fuses And Protected Circuits Part 2:
