Fog/Driving Lamp: Adjustments

Front Fog Light Aiming Adjustment with Screen (If Equipped)

Basic Aiming

NOTE:
- Unless otherwise obligated by local regulations, adjust front fog light aiming according to the following procedure.

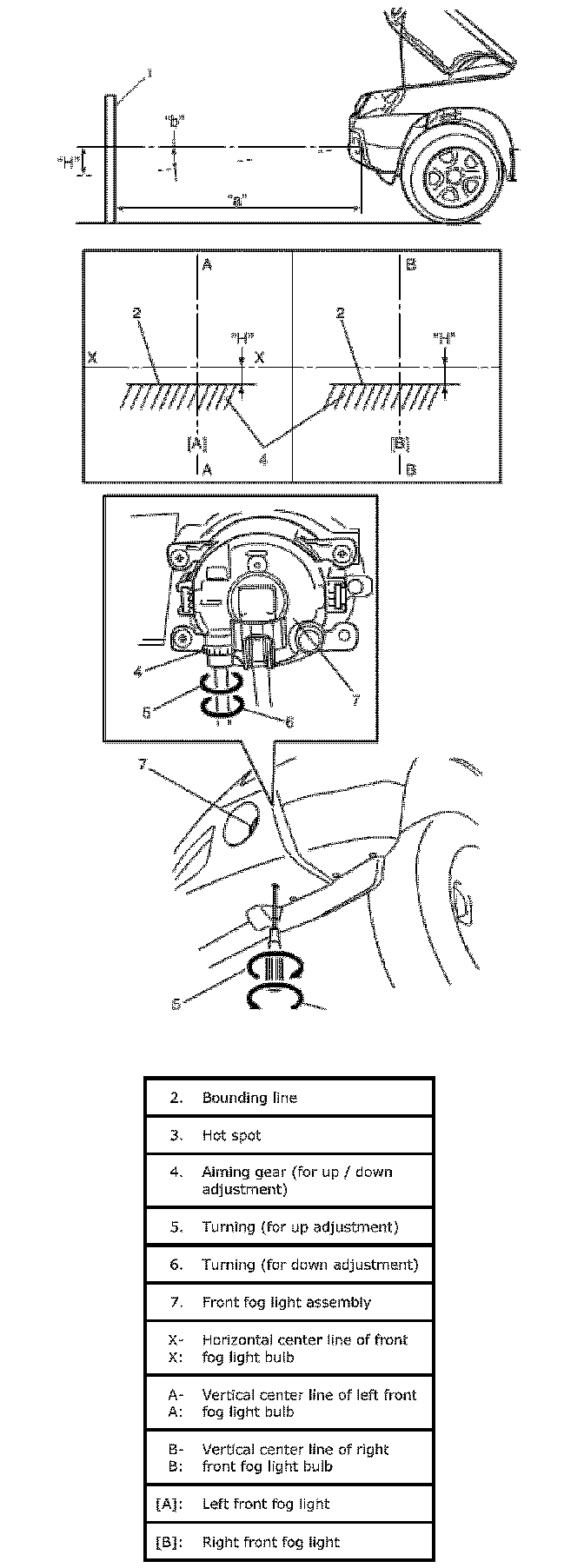

- An example in case that the light-to-wall distance 10 m is shown in the illustration. The beam descending distance "H" is calculated when "a" is 10 m with the specification angle "b" (1.75 degree).

1. Make sure the following items.
- Place vehicle on a flat surface in front of blank wall (screen) (1) ahead of front fog light surface.

Distance between screen and front fog light
"a": 10 m (32.8 ft.)

- Adjust air pressure of all tired to the specified value respectively.
- Bounce vehicle body up and down by hand to stabilize suspension.
- Carry out aiming with a driver aboard.

Driver's weight
68 kg (150 lb)

2. Check to see if hot spot (high intensity zone) of each front fog light axis falls as shown in the figure.

Hot spot specification
Angle "b": 1.75 degree (Specification)
Calculated distance "H": Approx. 300 mm (11.81 in.)




3. If it is not set properly, align front fog light to specification by rotating aiming gear.
