Cooling System

The content of this article / image reflects the changes identified in TSB TS 18 Cooling Fan Circuit Diagram Revision.

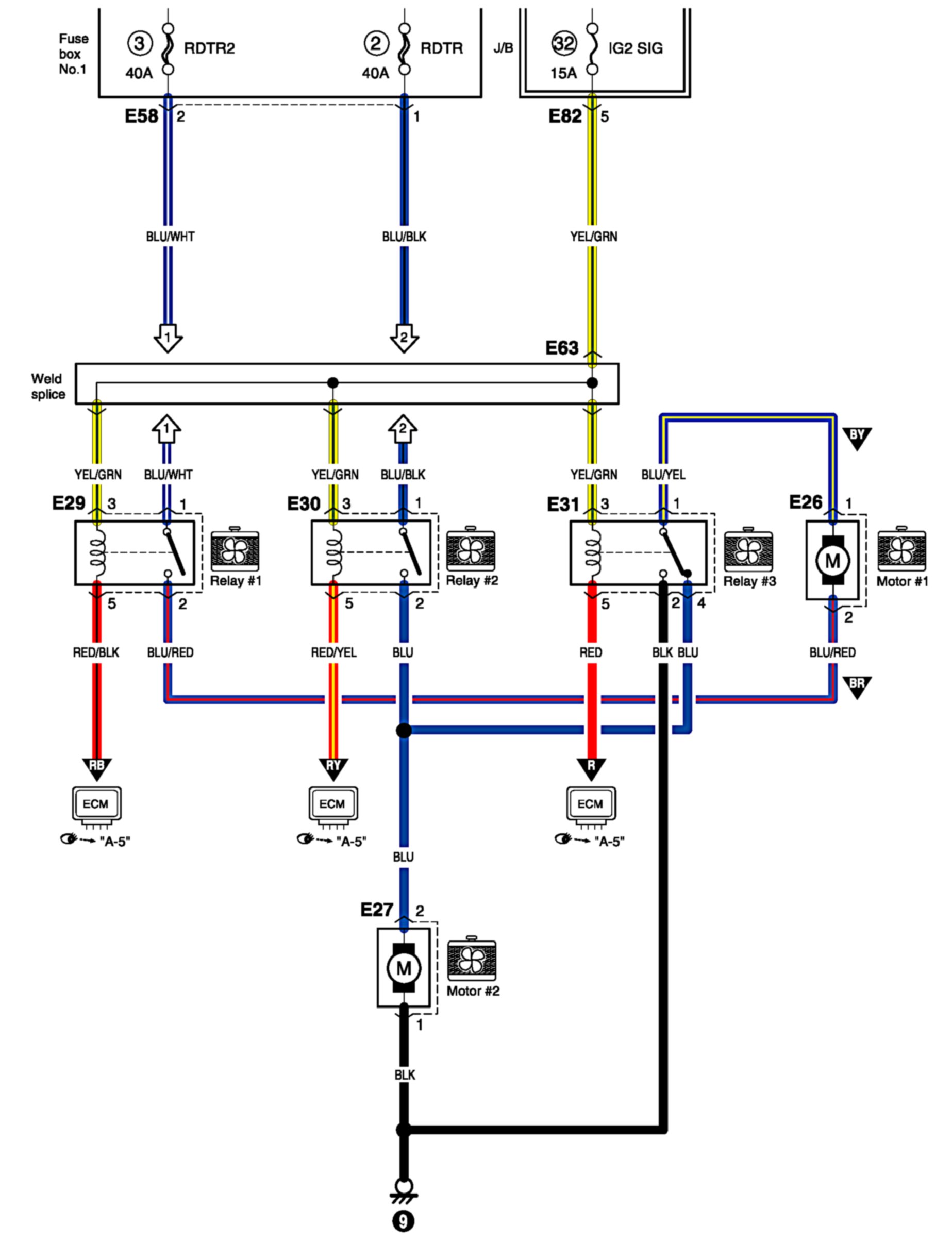

Cooling System Circuit Diagram:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
