System Schematic

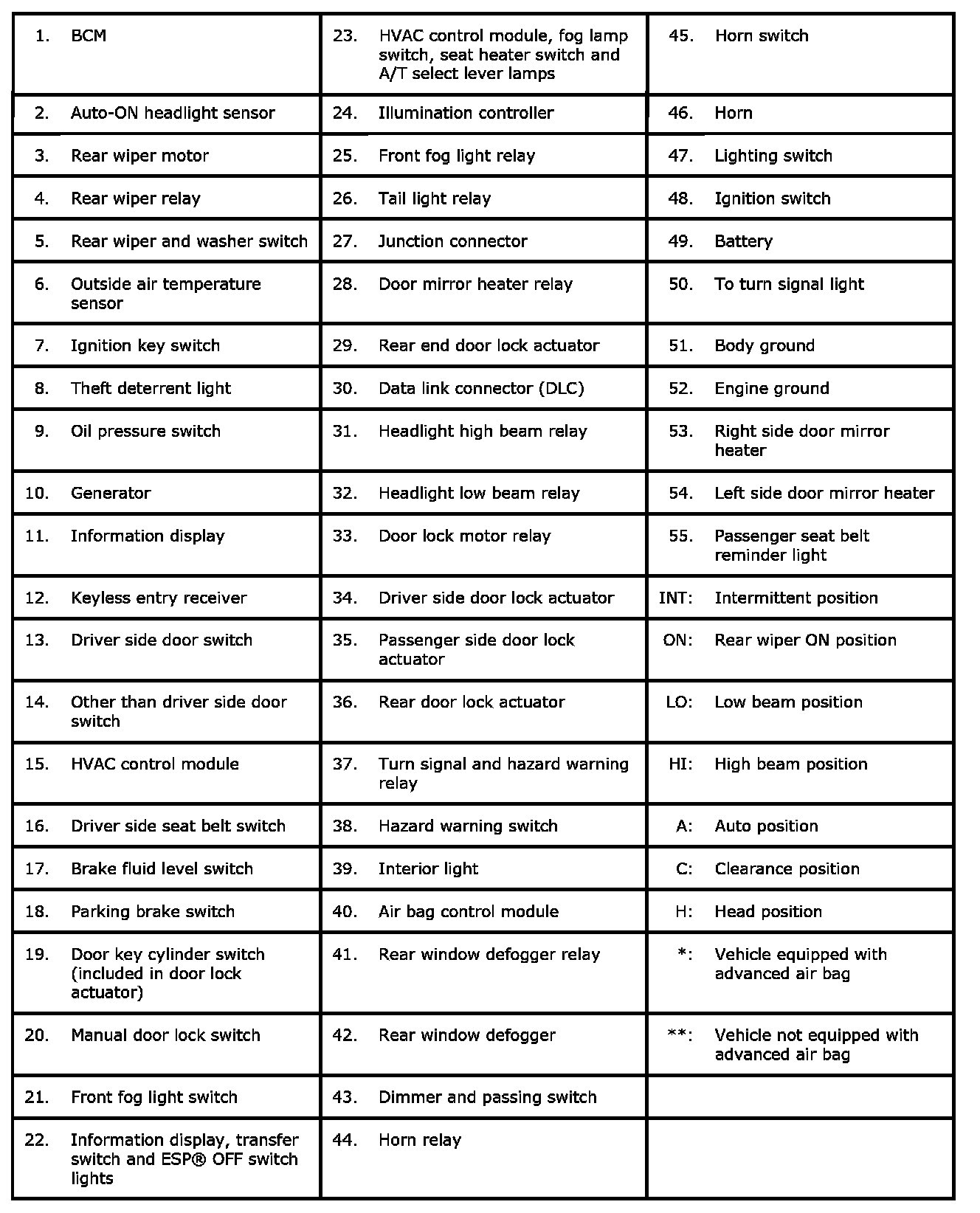

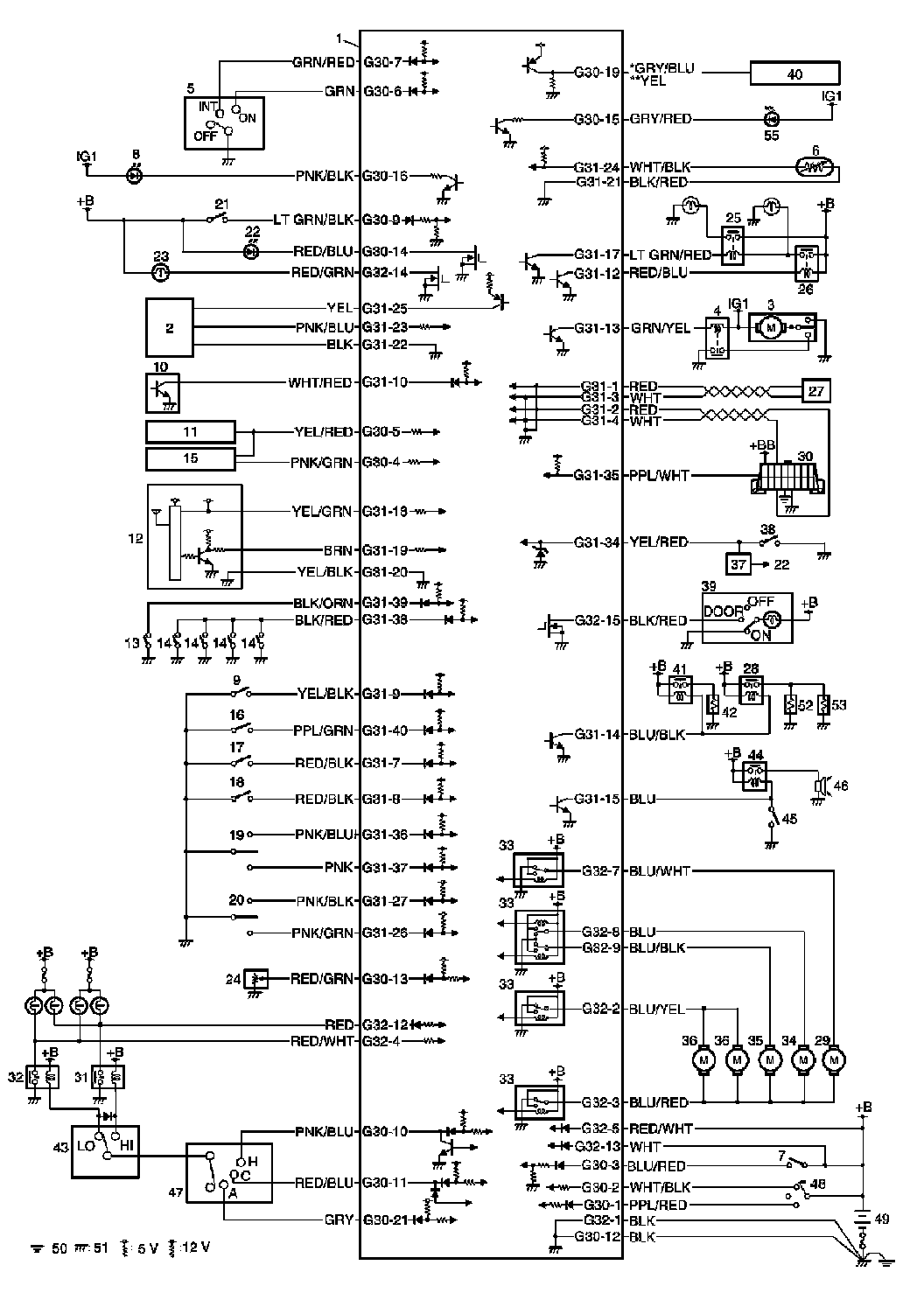

Body Electrical Control System Wiring Circuit Diagram Part 1:



Body Electrical Control System Wiring Circuit Diagram Part 2:
