Rear End Door Lock Assembly Components
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

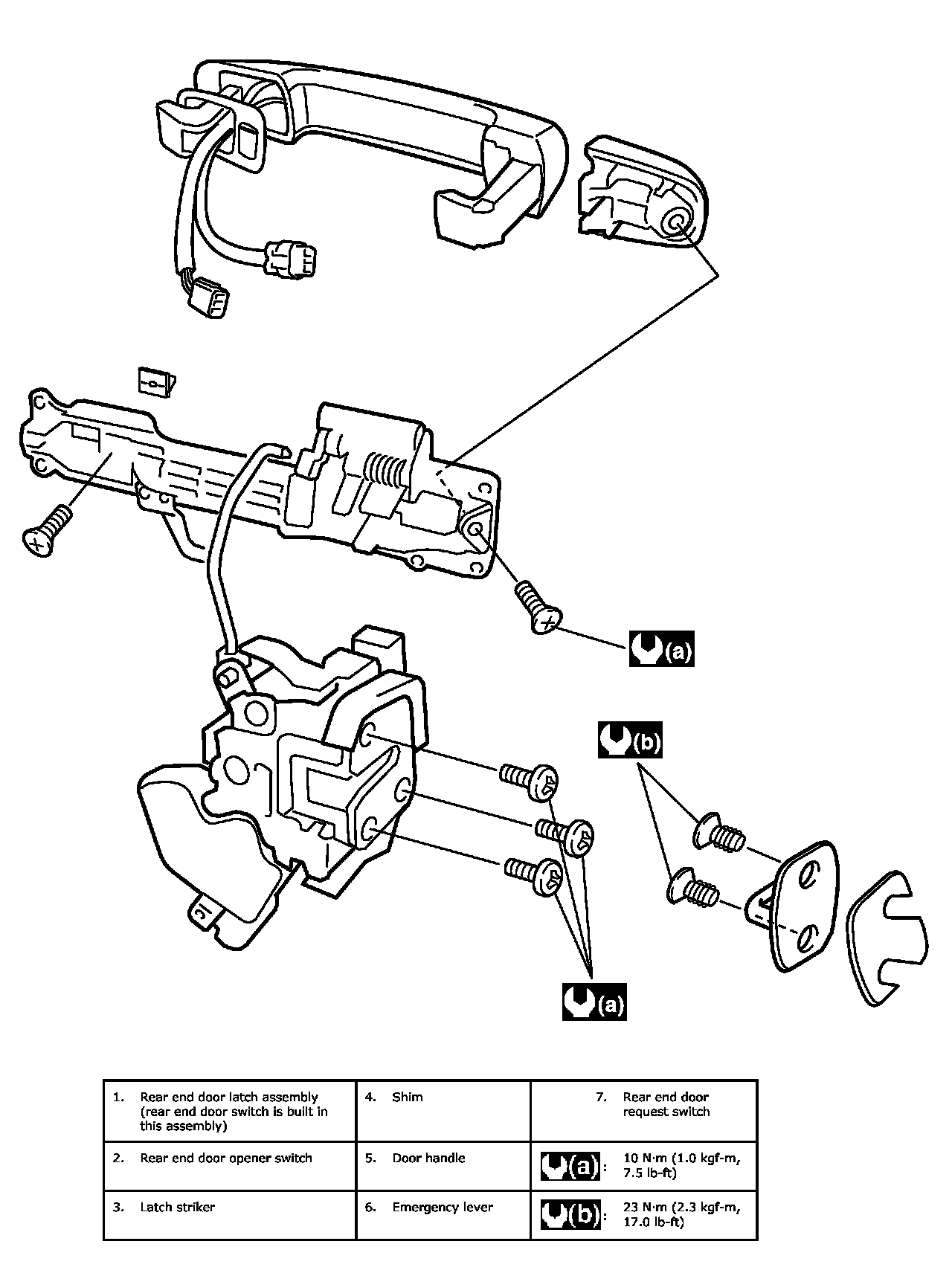

Rear End Door Lock Assembly Components
Rear End Door Lock Assembly Components:
