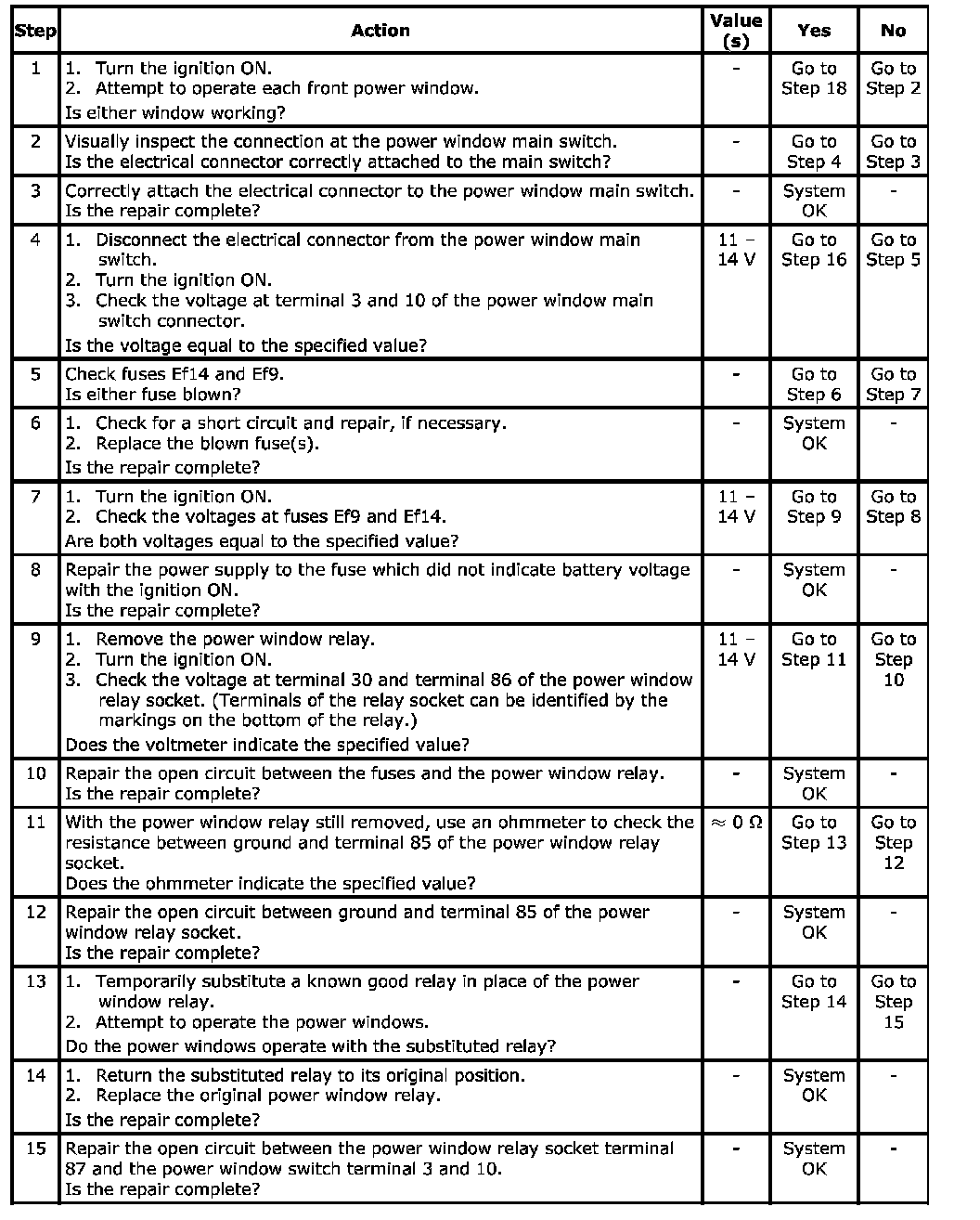

System With Front and Rear Power Windows, One or Both Front Windows Are Inoperative

System with Front and Rear Power Windows, One or Both Front Windows Are Inoperative

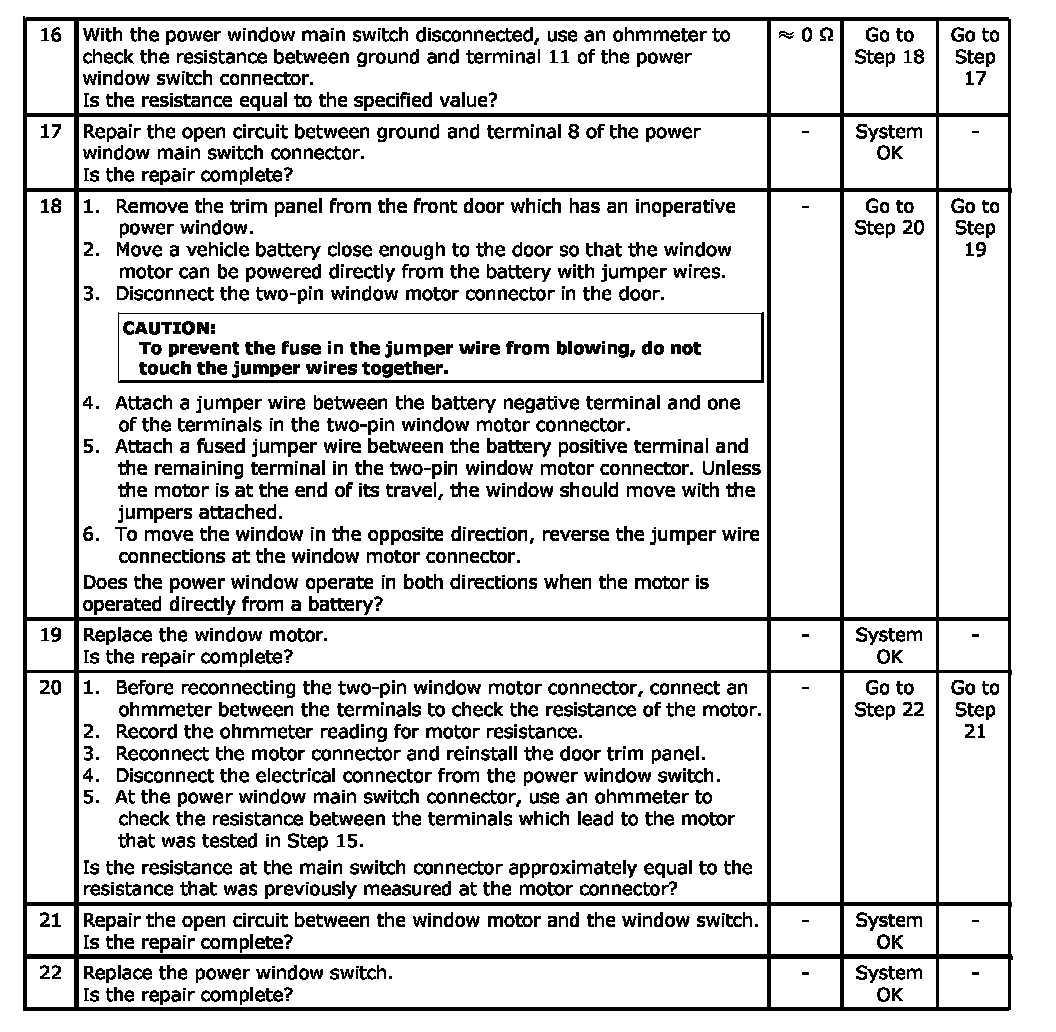

Step 16 - 22:





CAUTION: When powering the window motors directly from a battery with jumper wires, make sure one of the jumper wires contains a fuse. If the jumpers are accidentally touched together, the fuse will prevent sparking and burns from sudden terminal heating.
