Shift Speed Chart
Shift Speed Chart
Up Shift Speed
Down Shift Speed

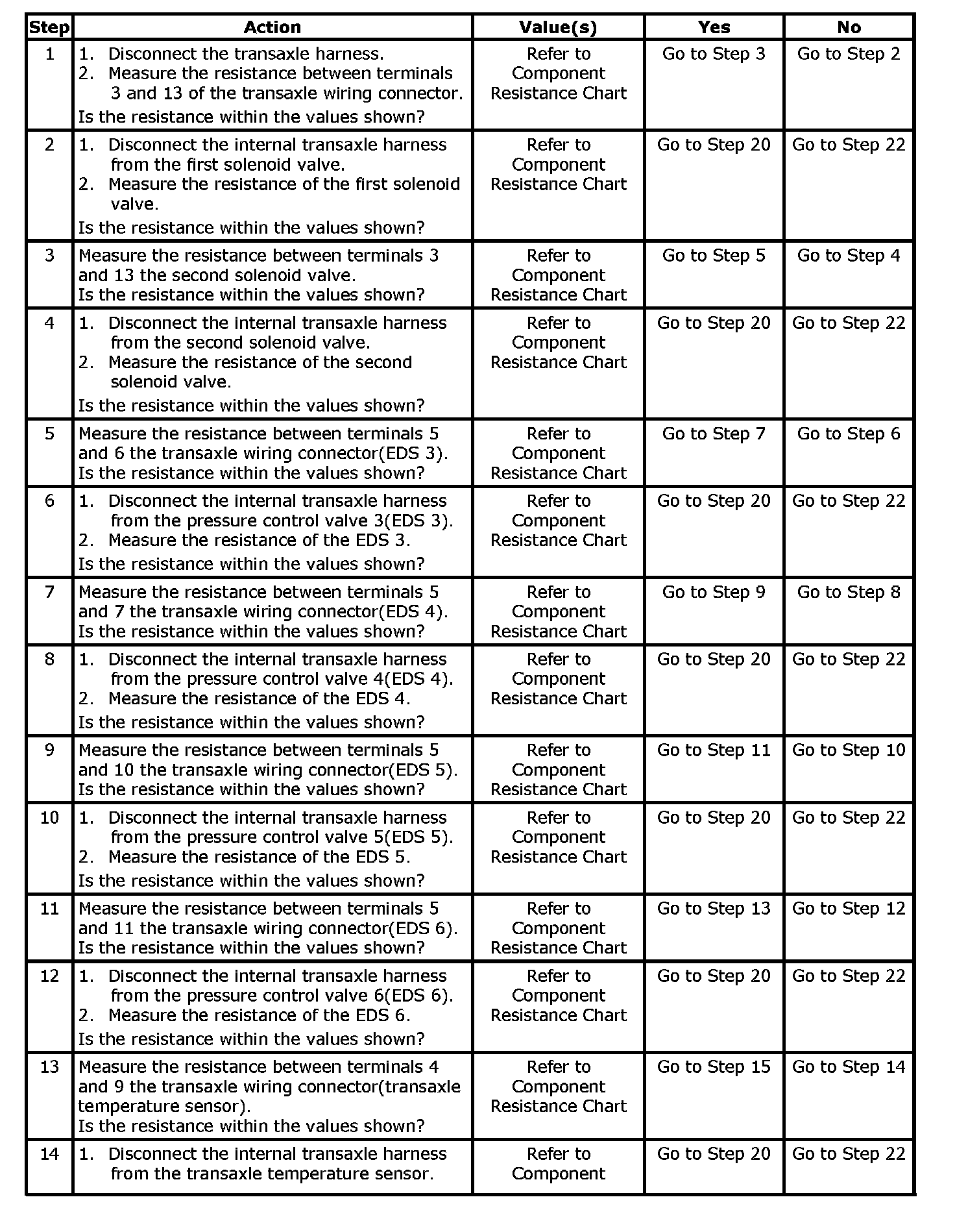

Steps 1-14:

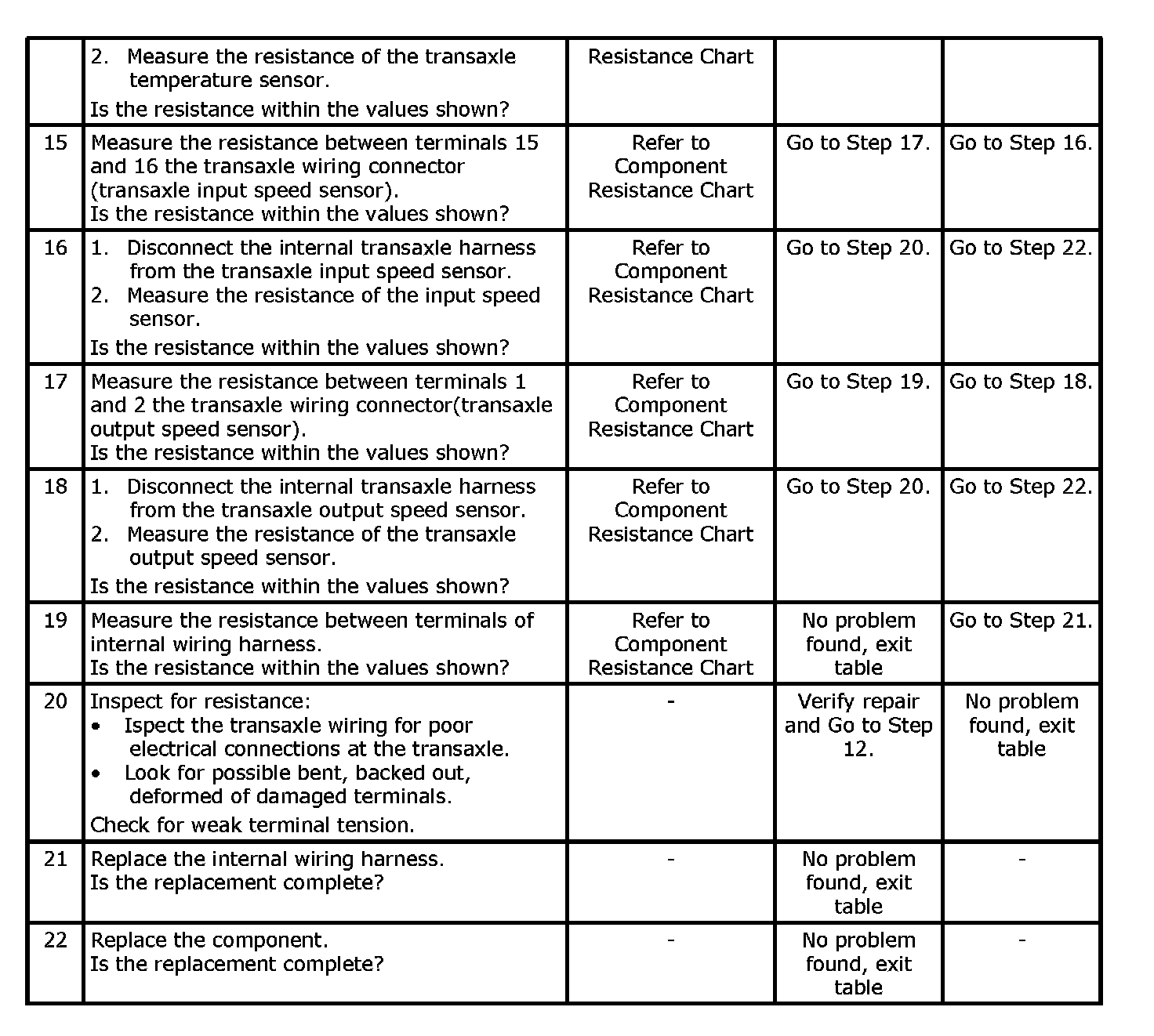

Steps 14 (continued)-22:
Internal Wiring Harness Check
