For Notchback Model
EVAP Canister Purge Solenoid, EVAP Vent. Solenoid, CMP Sensor, Cluster and VSS Circuit (For NOTCHBACK Model):

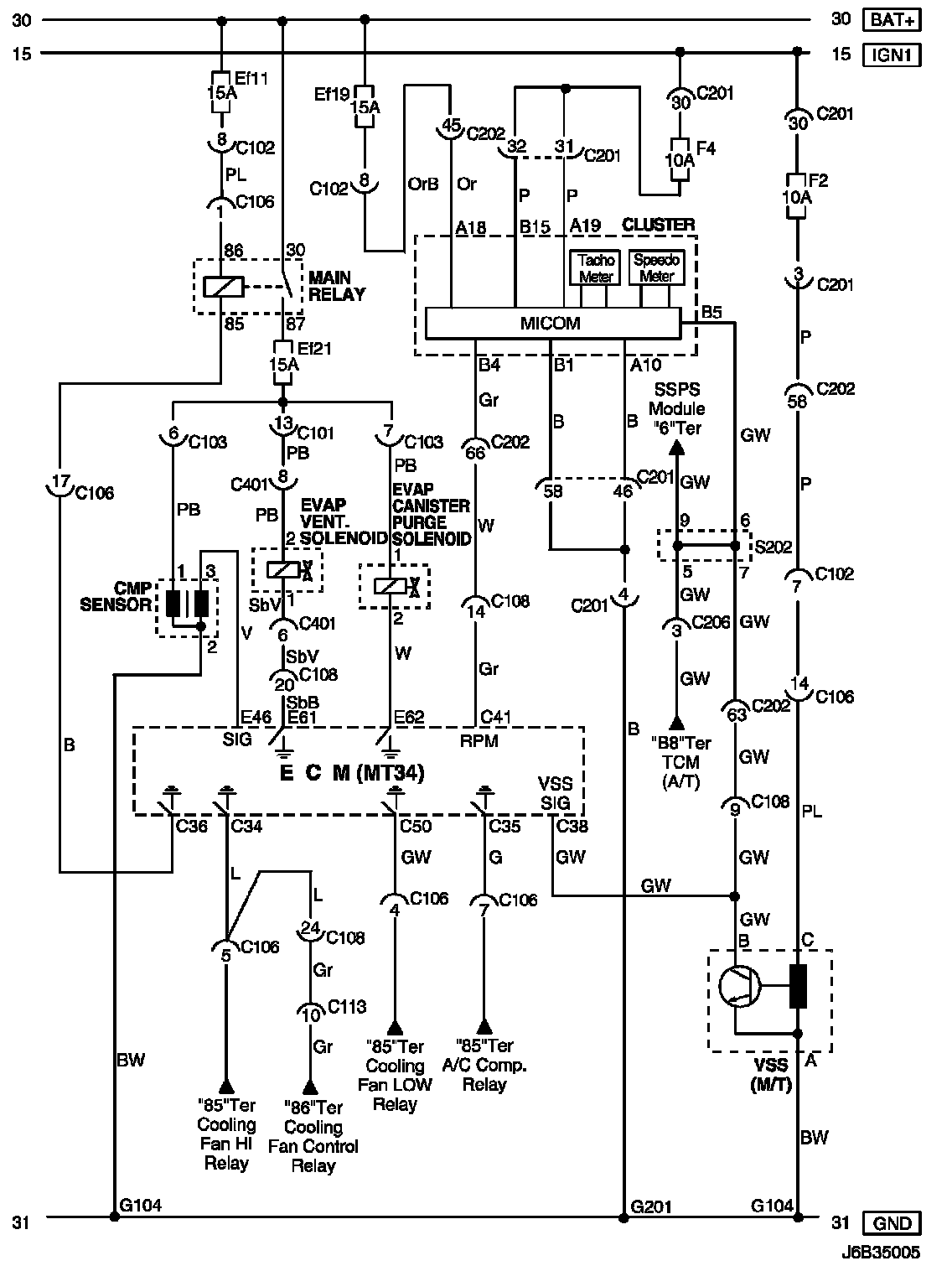

WIRING DIAGRAM
C101 - G201:
CONNECTOR INFORMATION

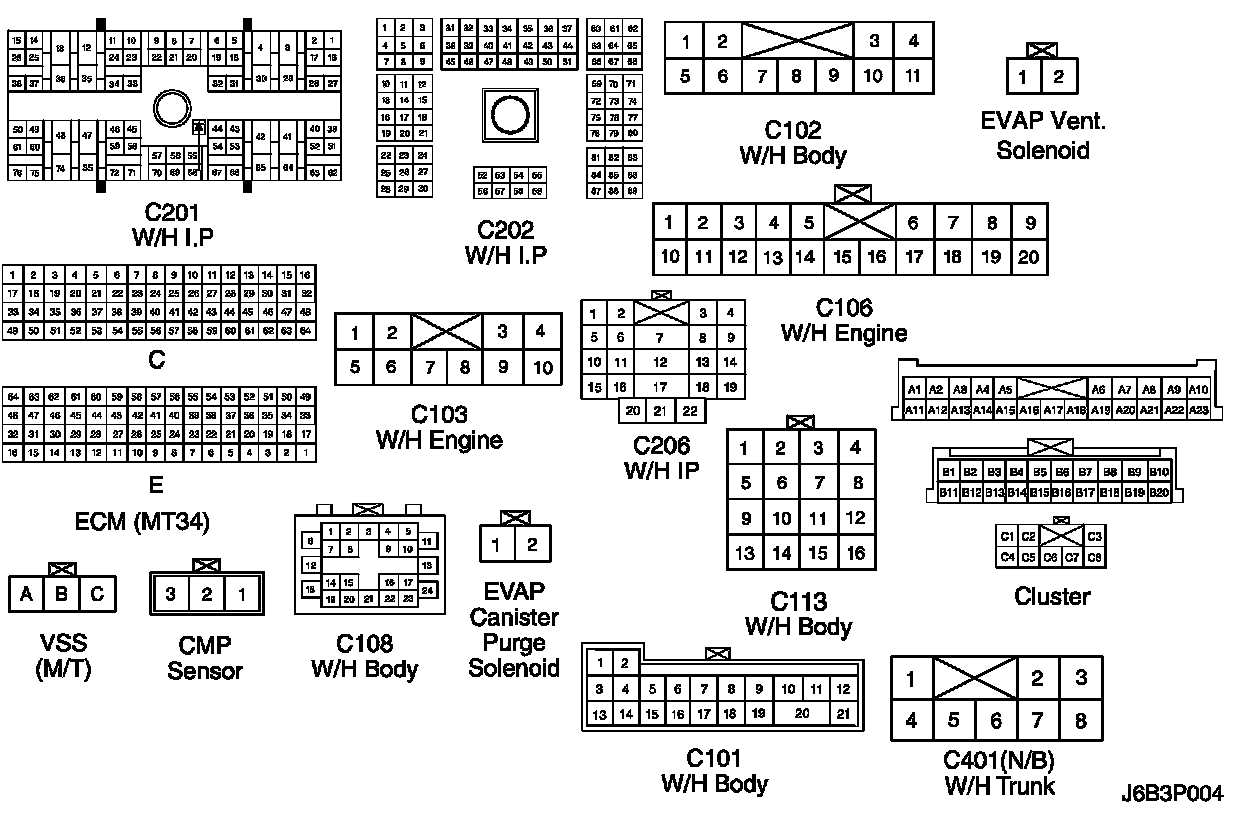

Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

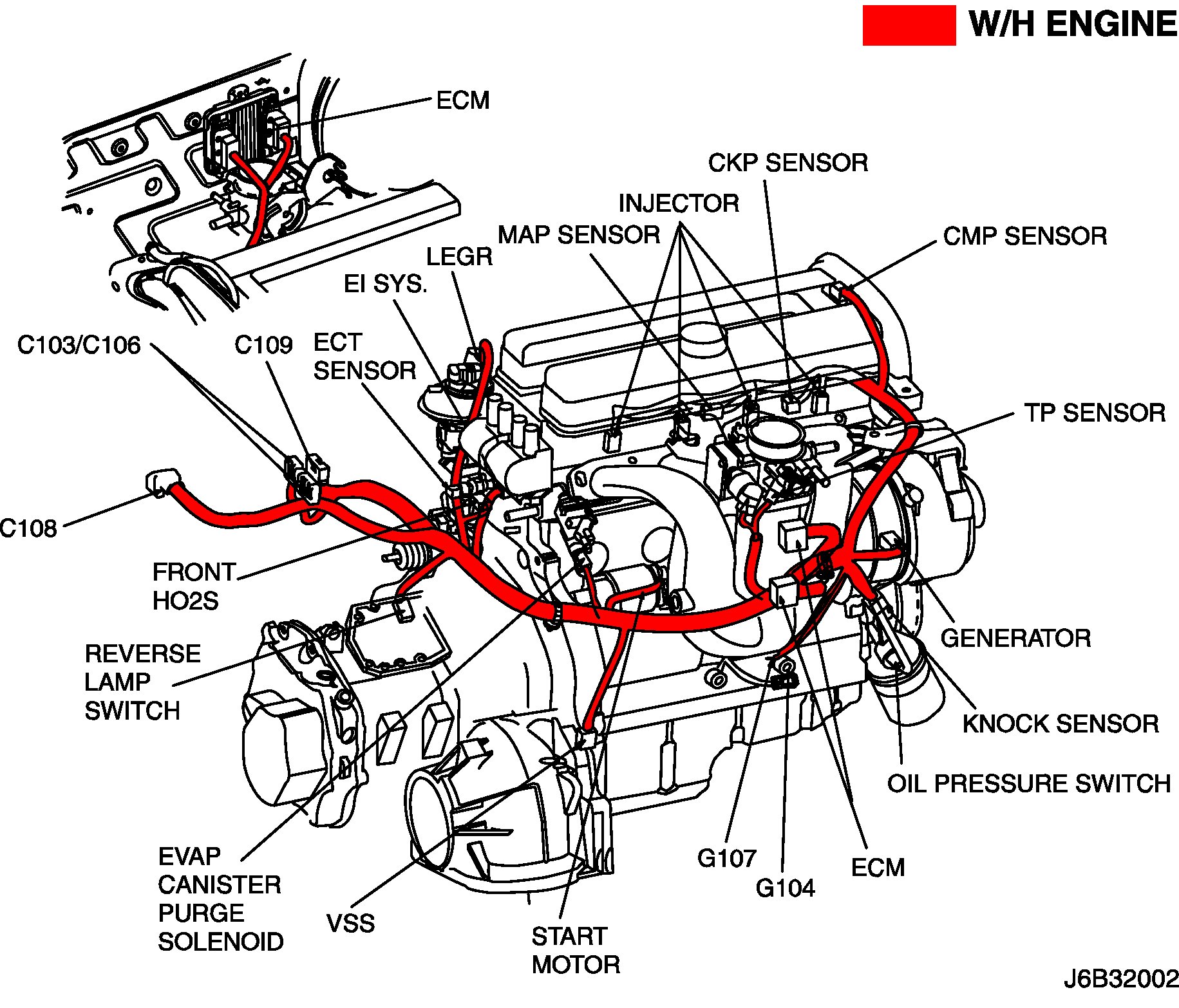

W/H ENGINE:

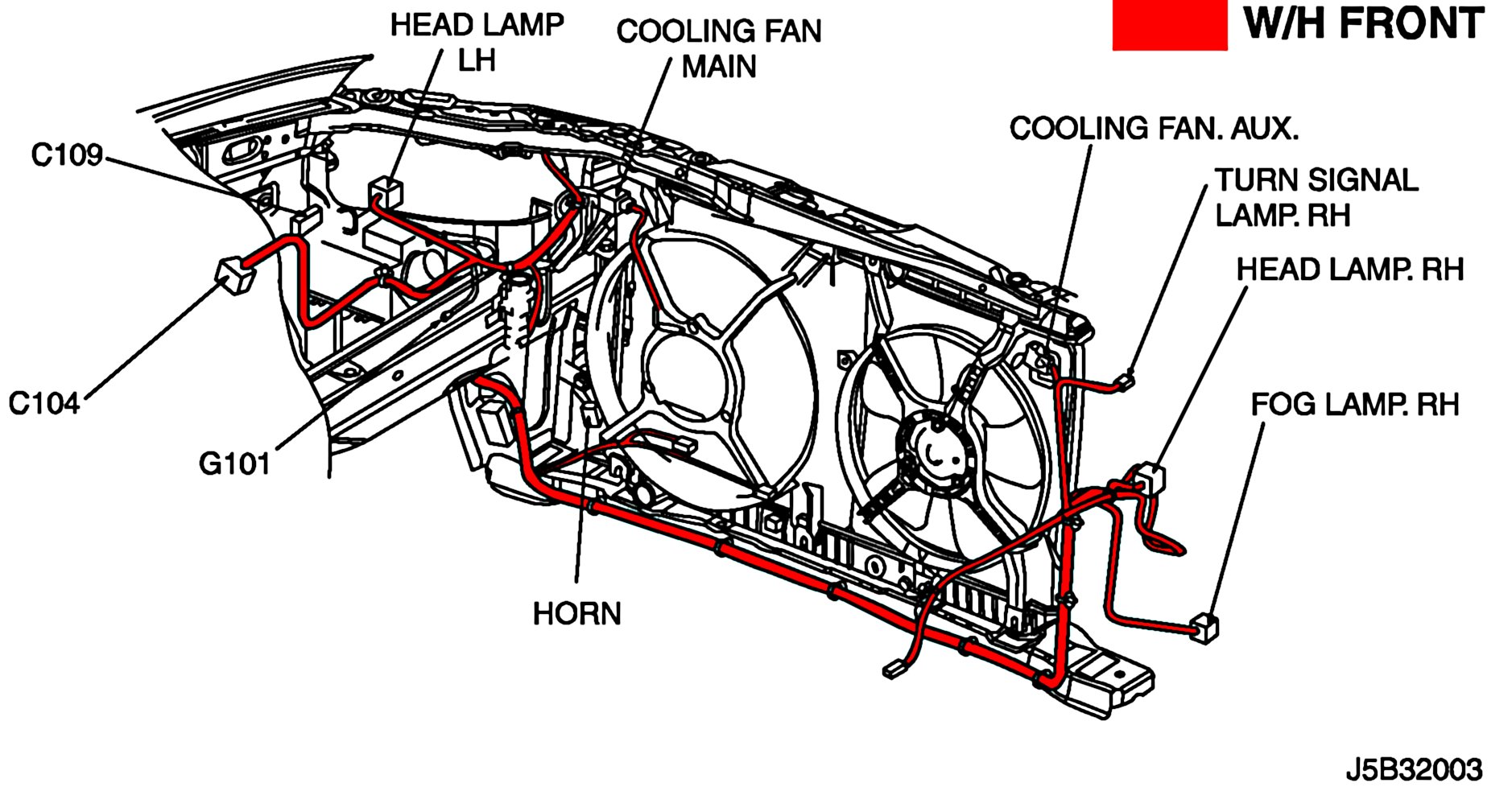

W/H Front:
POSITION OF CONNECTORS AND GROUNDS
S202:
SPLICE PACK
