Engine Controls - Diagram Update For Various DTC's

SECTION TITLE: ENGINE

TSB NO.: TS 20 10278

DIVISION: AUTOMOTIVE

CATEGORY: TECHNICAL

SUBJECT:
SERVICE MANUAL UPDATE: WIRING DIAGRAM UPDATE FOR DTC P2122, P2123, P2127, P2128, 2138, ECM DIAGRAM 6/7, AND ACCELERATOR PEDAL POSITION (APP) SENSOR CIRCUIT DIAGRAM

MODEL(S):
FORENZA (RQ420)

YEAR(S):
2006~2008

CONDITION:

When referencing the service manual for the above listed DTC diagrams, the incorrect connector number is giving in the APP sensor.

CAUSE:

Mis-print in the service information.

CORRECTION:

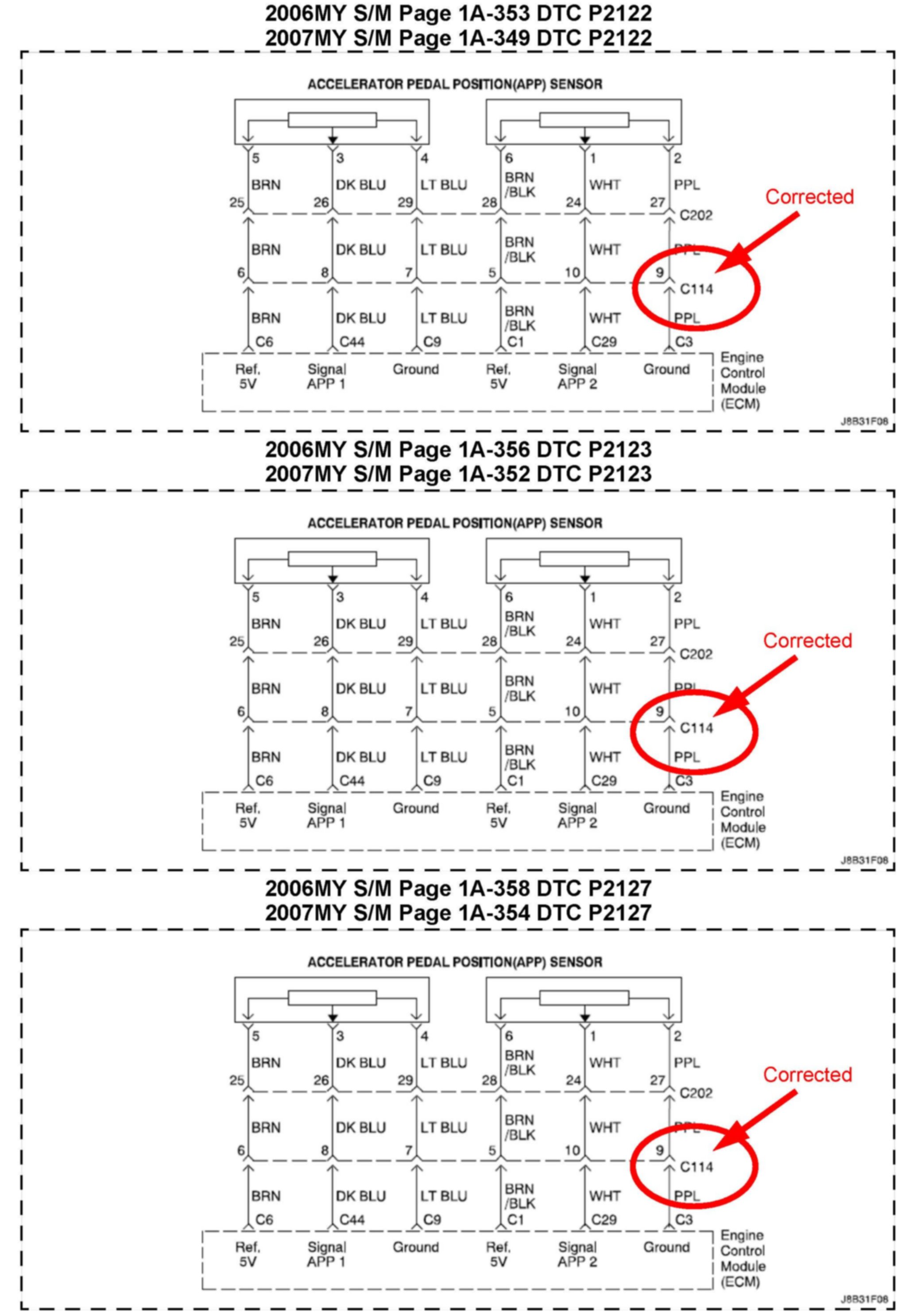

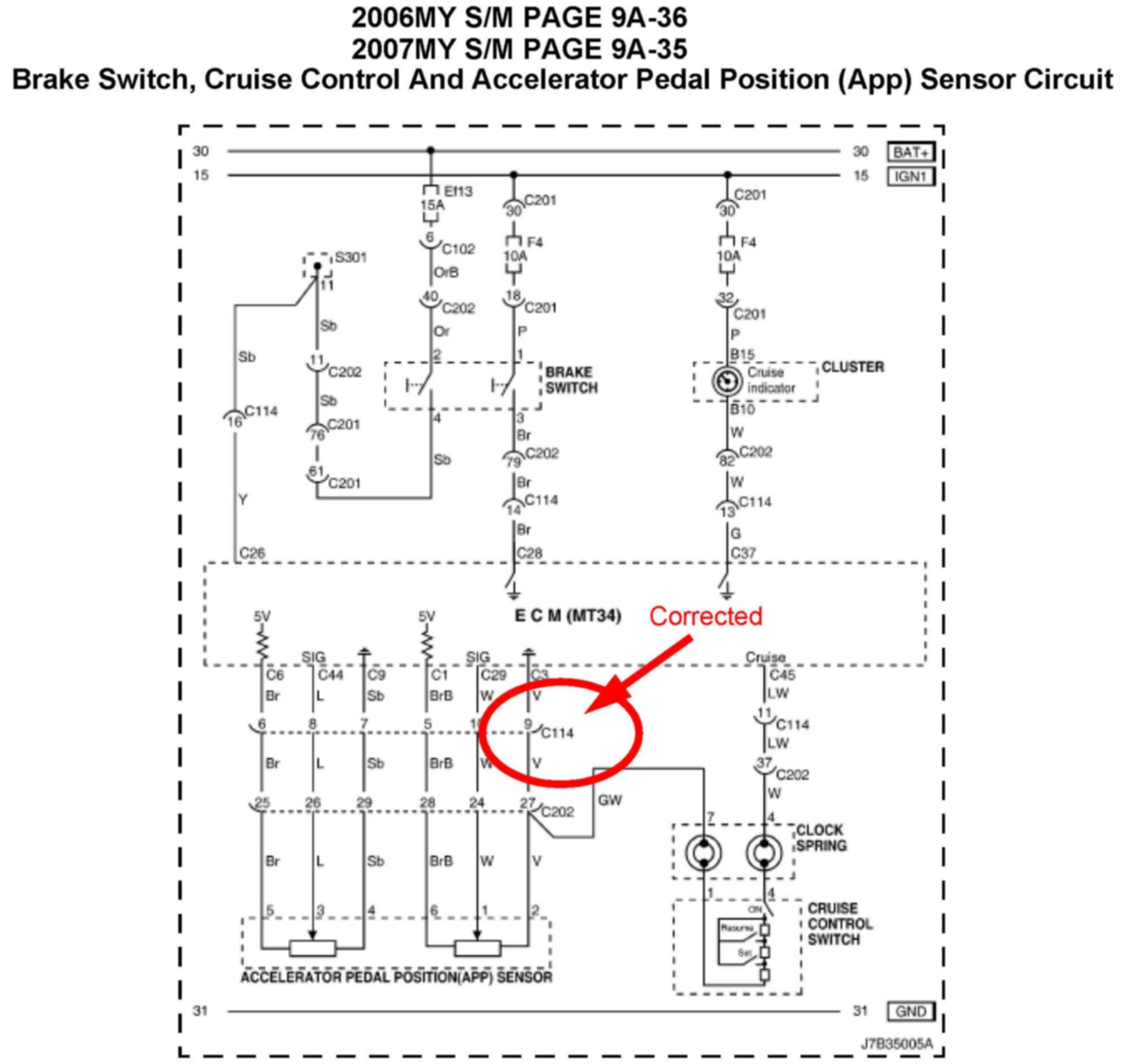

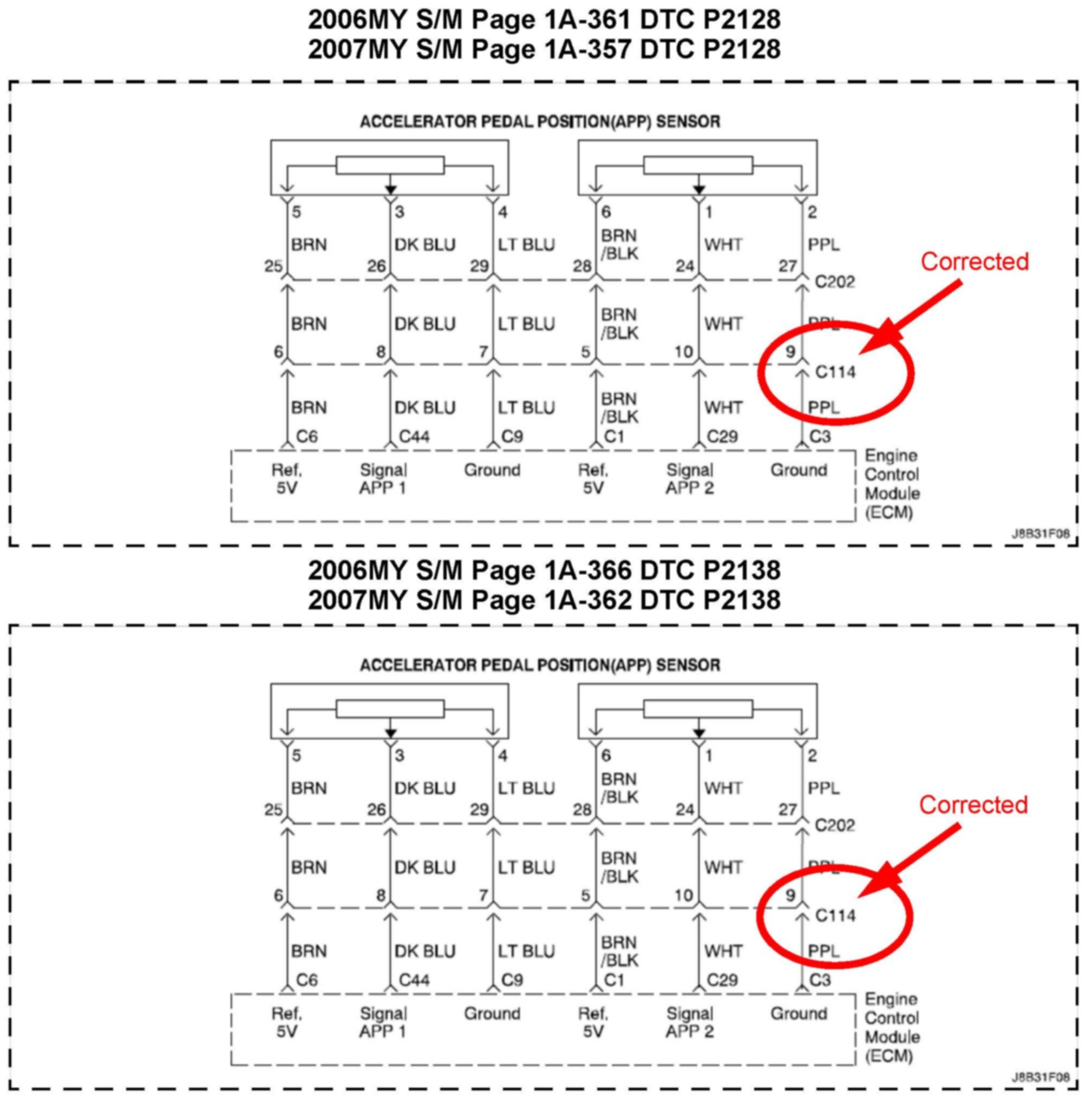

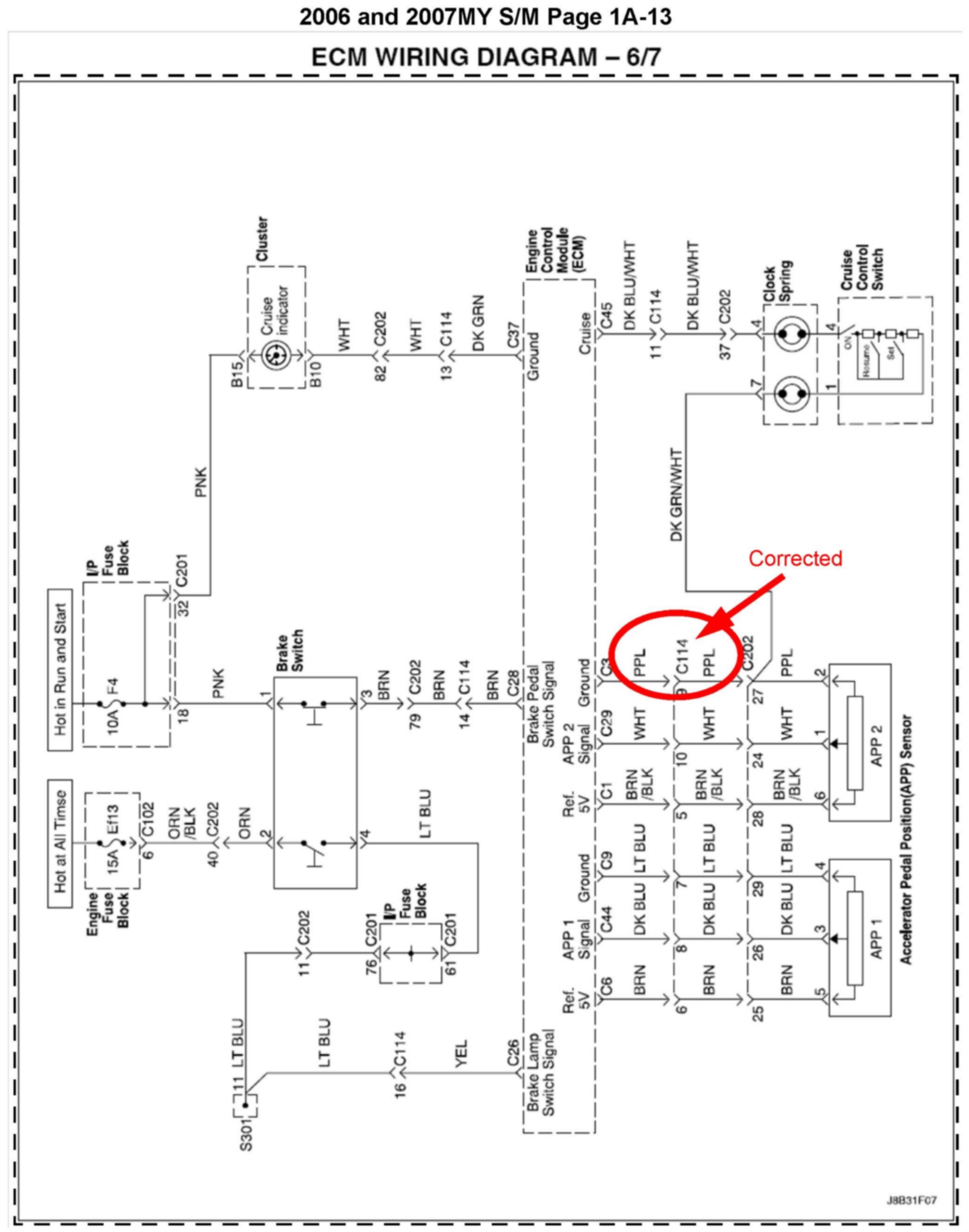

Please refer to below diagrams of this bulletin when diagnosing any of the listed DTCs.

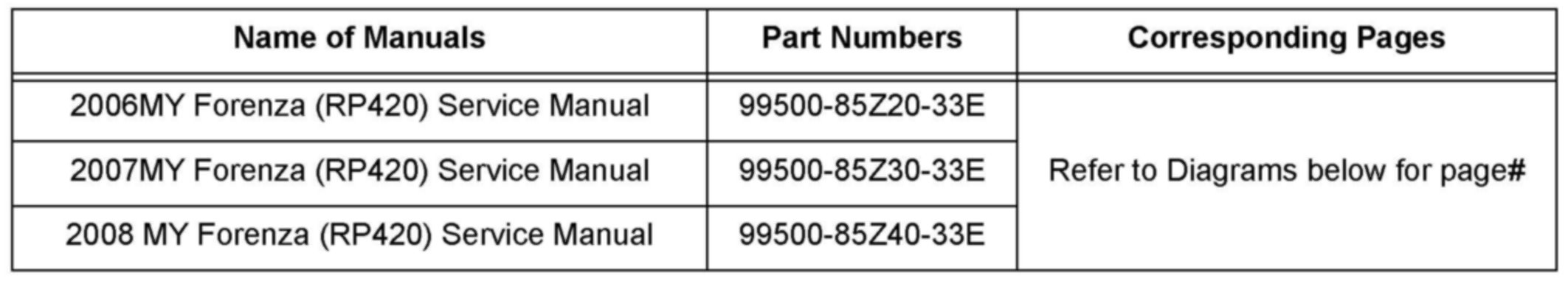

AFFECTED SERVICE MANUALS














NOTE:
These updates will be reflected in future printings of the service manuals. If the reprint date on the inside back cover of the manual is later than the issue date of this bulletin, the manual will have been updated.
