Insufficient Cooling Diagnosis

Insufficient Cooling Diagnosis

Test Description
The numbers below refer to steps on the diagnostic table.
1. See the Important below.
2. See the Important below.

NOTE:
^ Perform this test under garage conditions with the air temperature at 21 - 32 degrees C (70 - 90 degrees F), and no sun load. Follow this test carefully for accurate results.
^ Perform this test exactly as described to obtain accurate results.

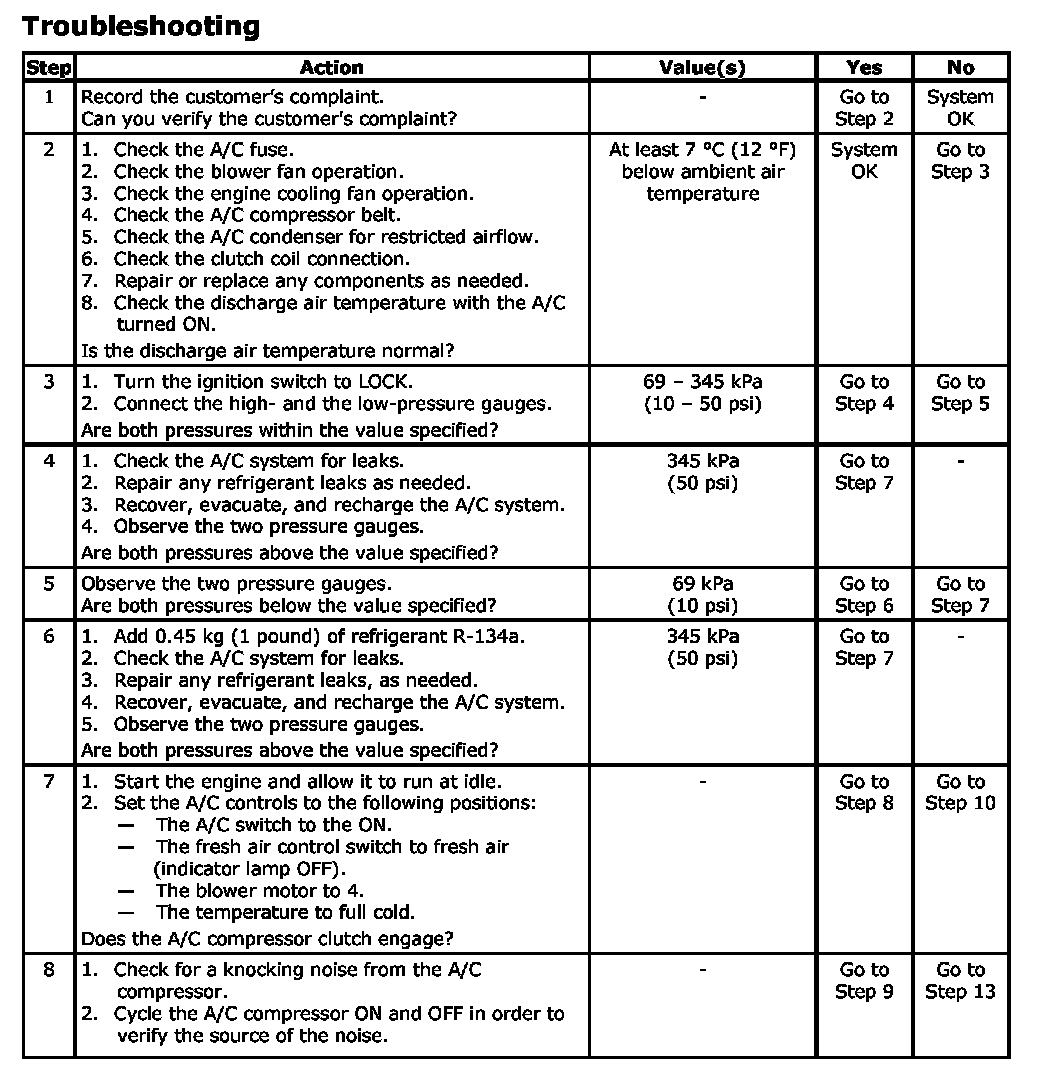

Step 1 - 8:

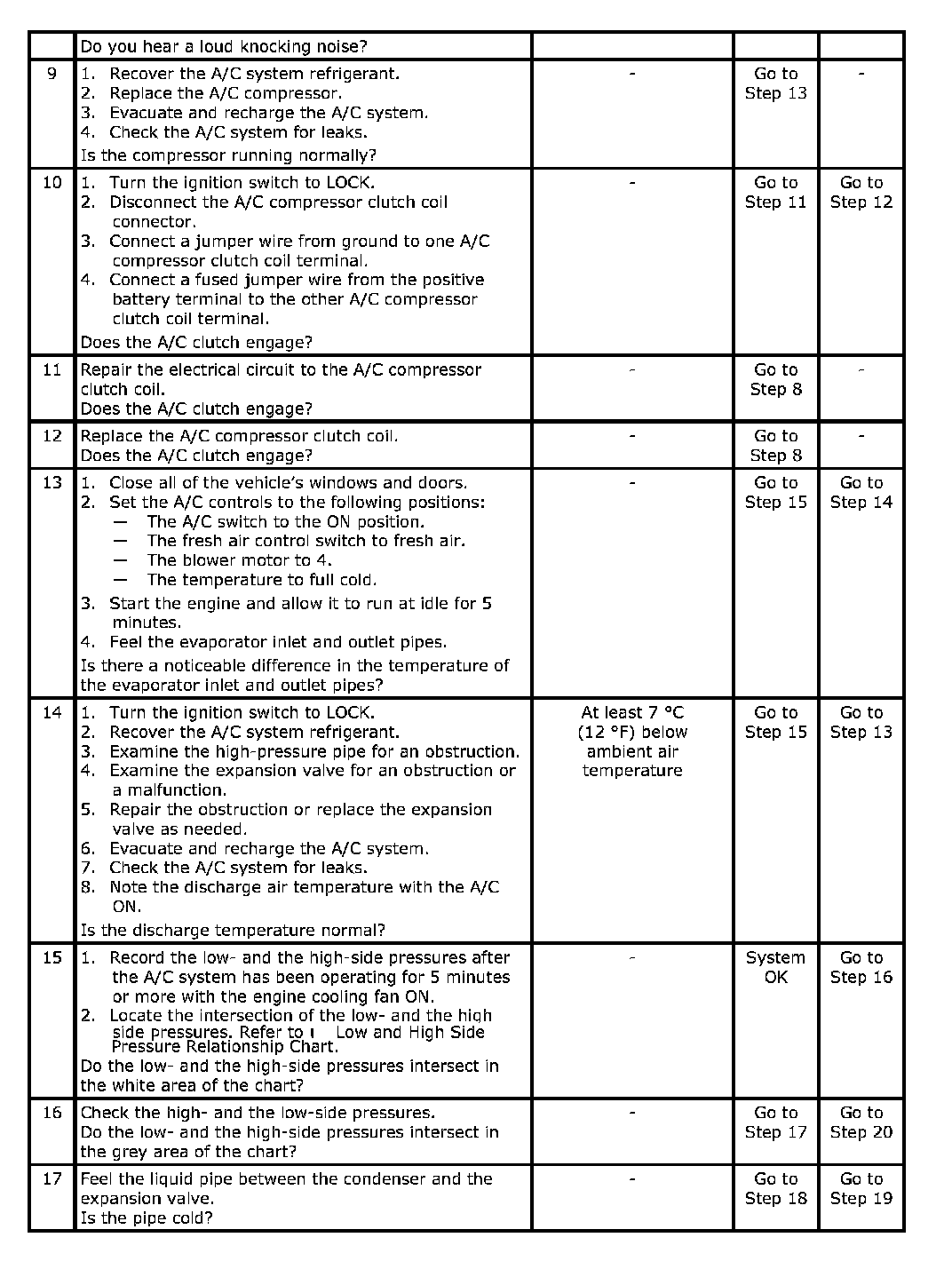

Step 8 (Continued) - 17:

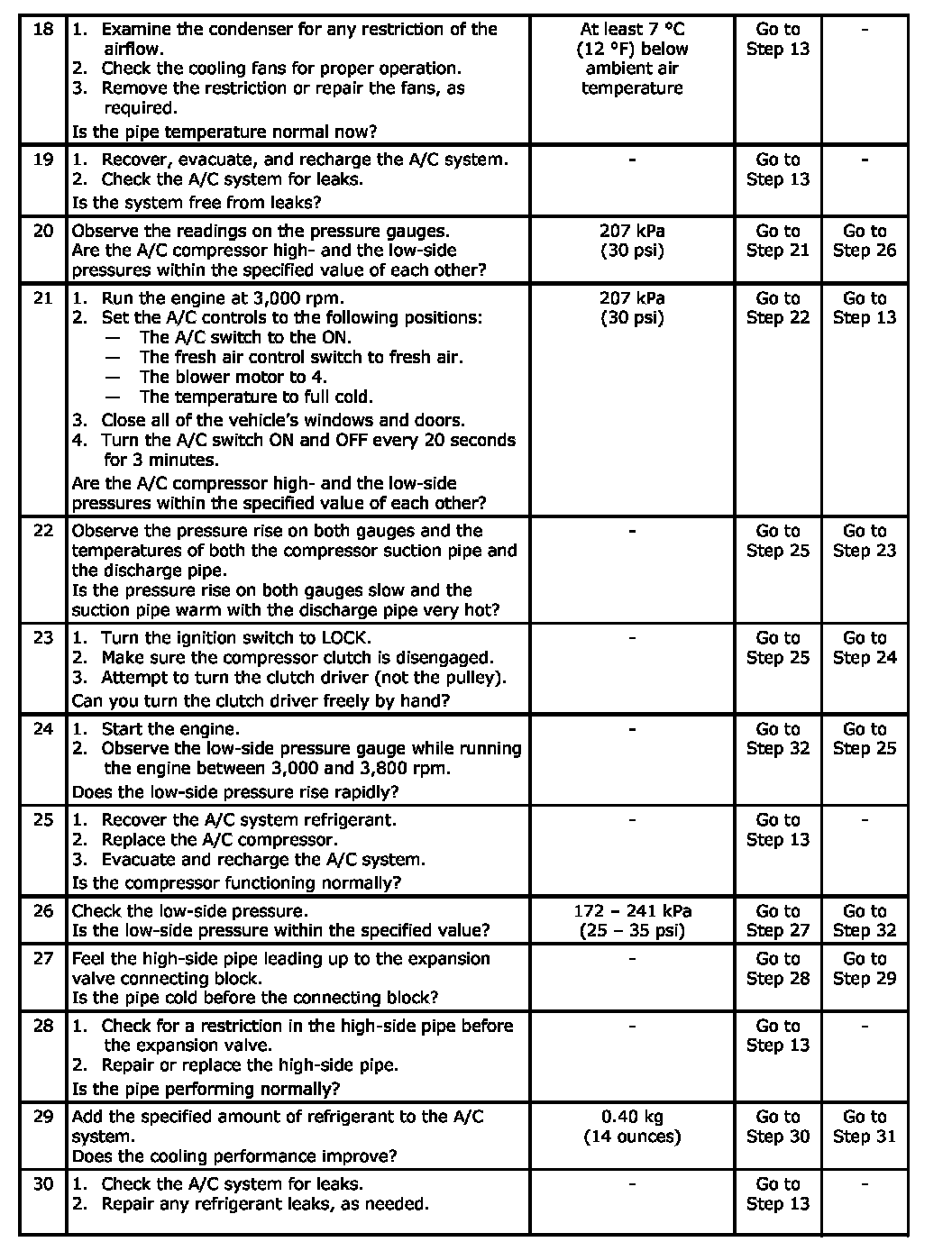

Step 18 - 30:

Step 30 (Continued) - 33:

Troubleshooting
