For Station Wagon Model With Rear Intermittent

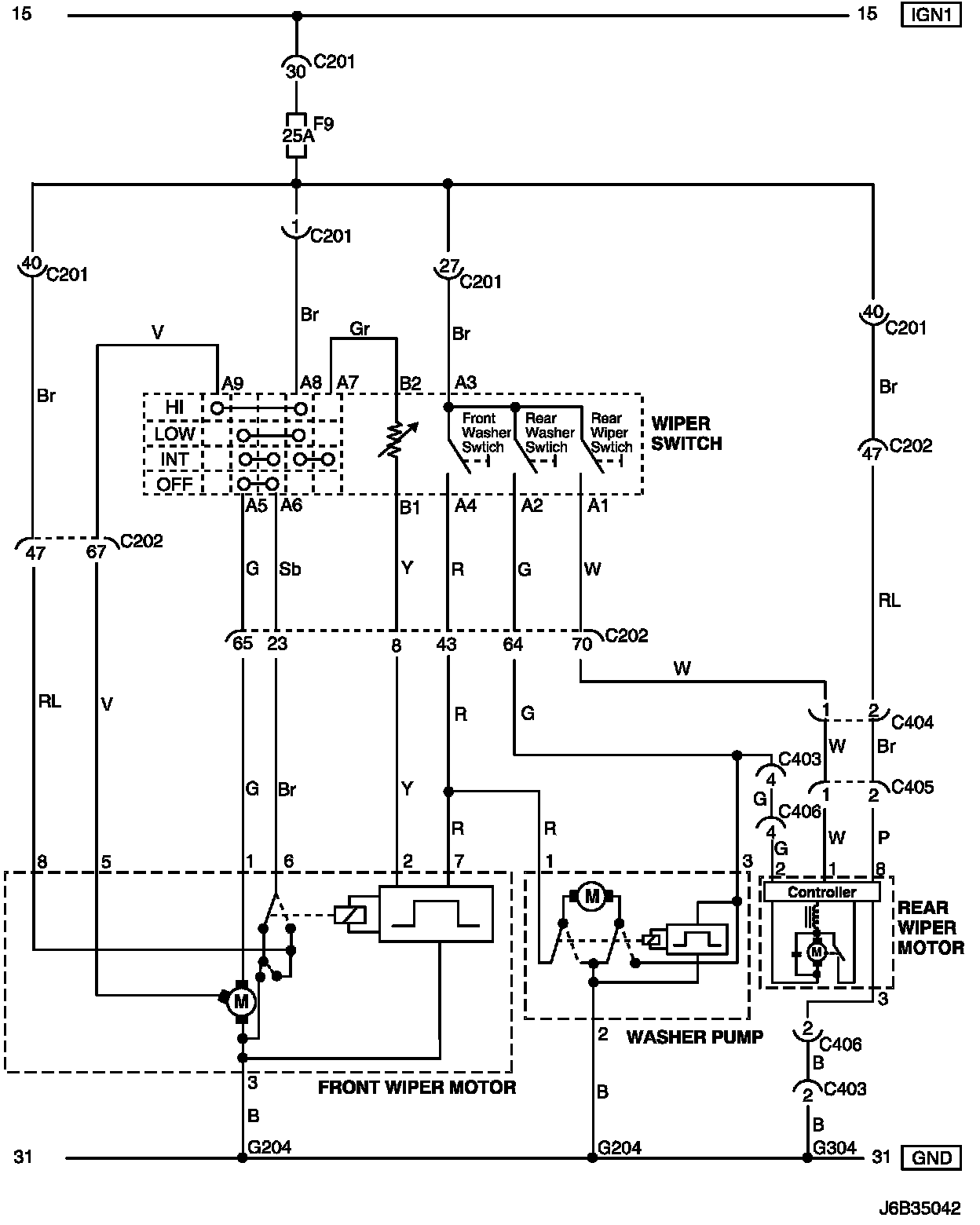

Wiper Circuit Wiring Diagram (For STATION WAGON Model with Rear Intermittent):
WIRING DIAGRAM
C201 - G304:
CONNECTOR INFORMATION

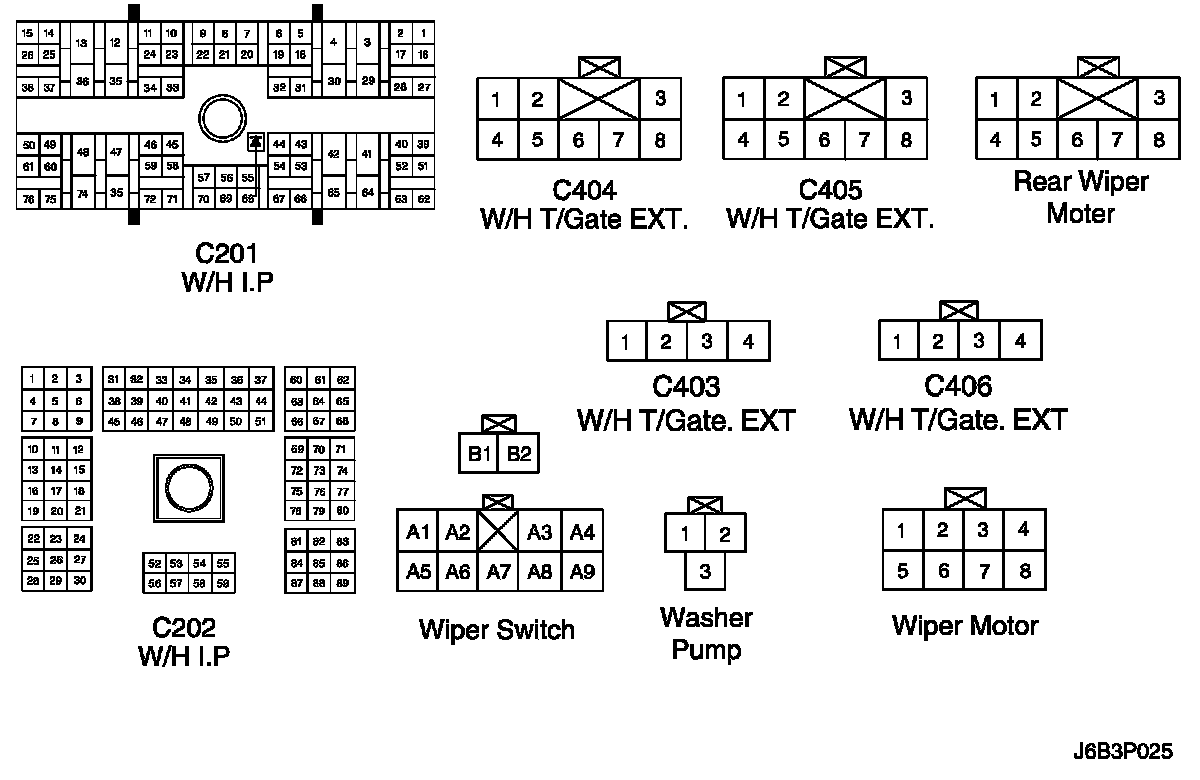

Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

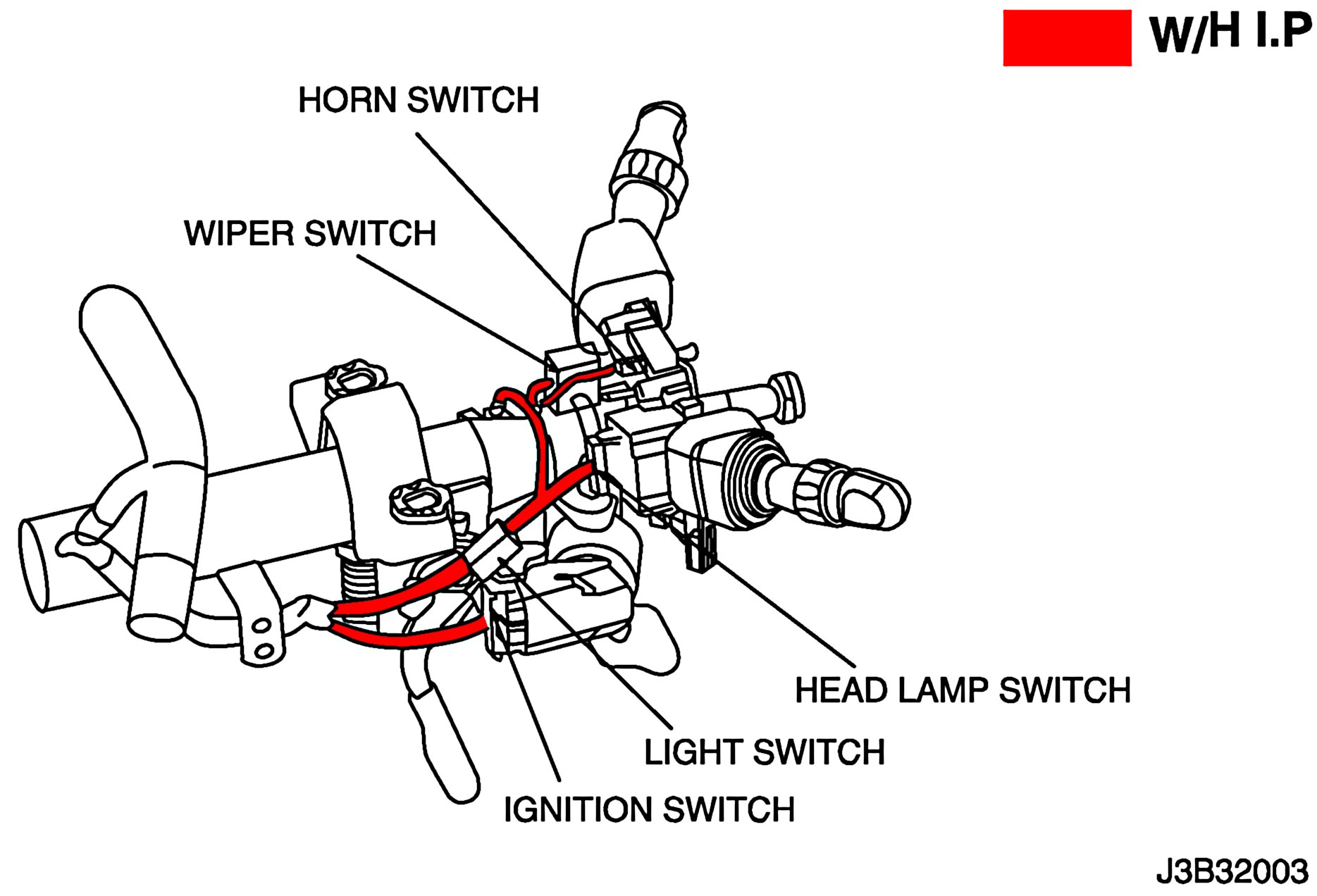

W/H INSTRUMENT PANEL (Part 1):

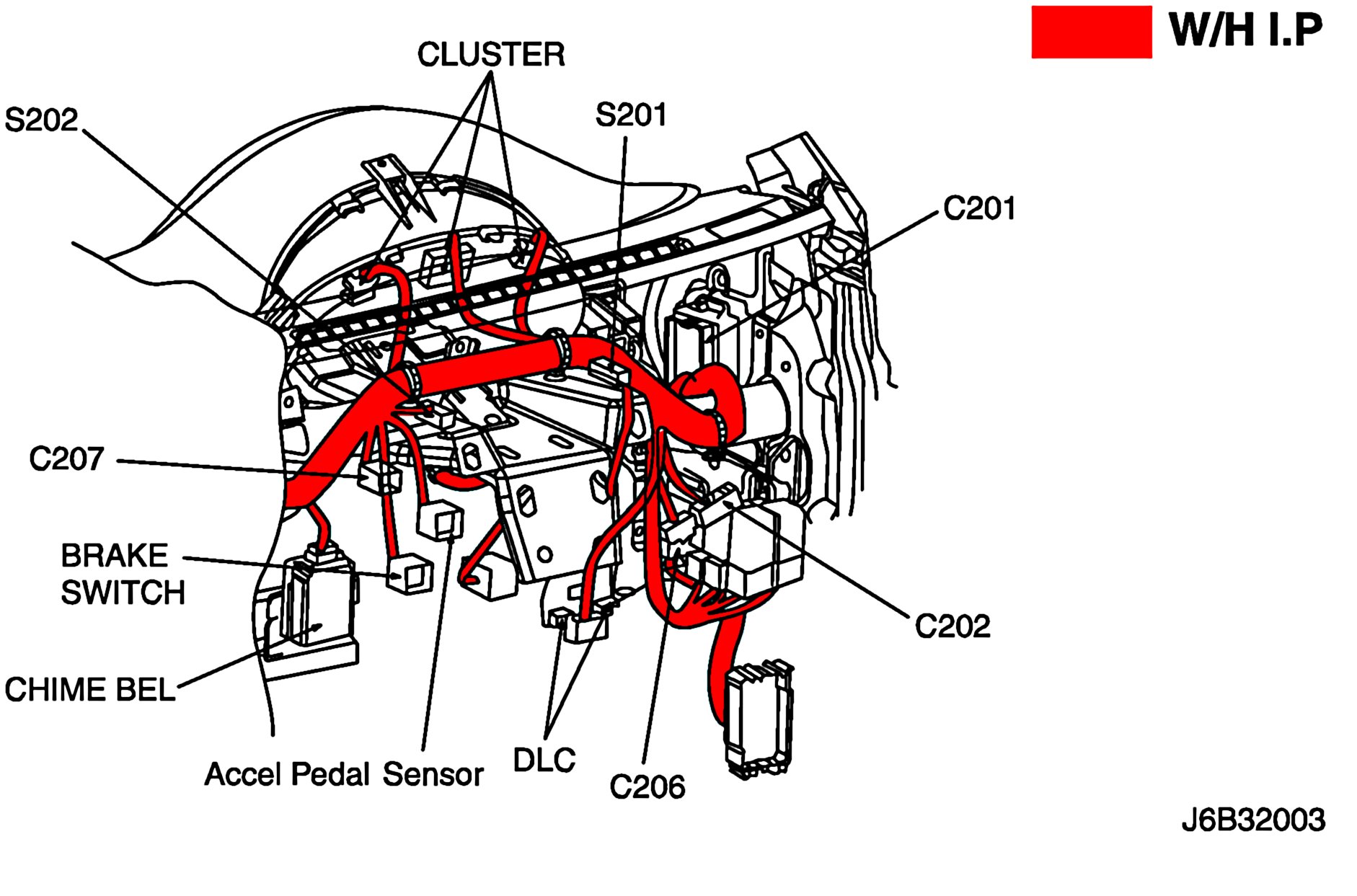

W/H INSTRUMENT PANEL (Part 2):

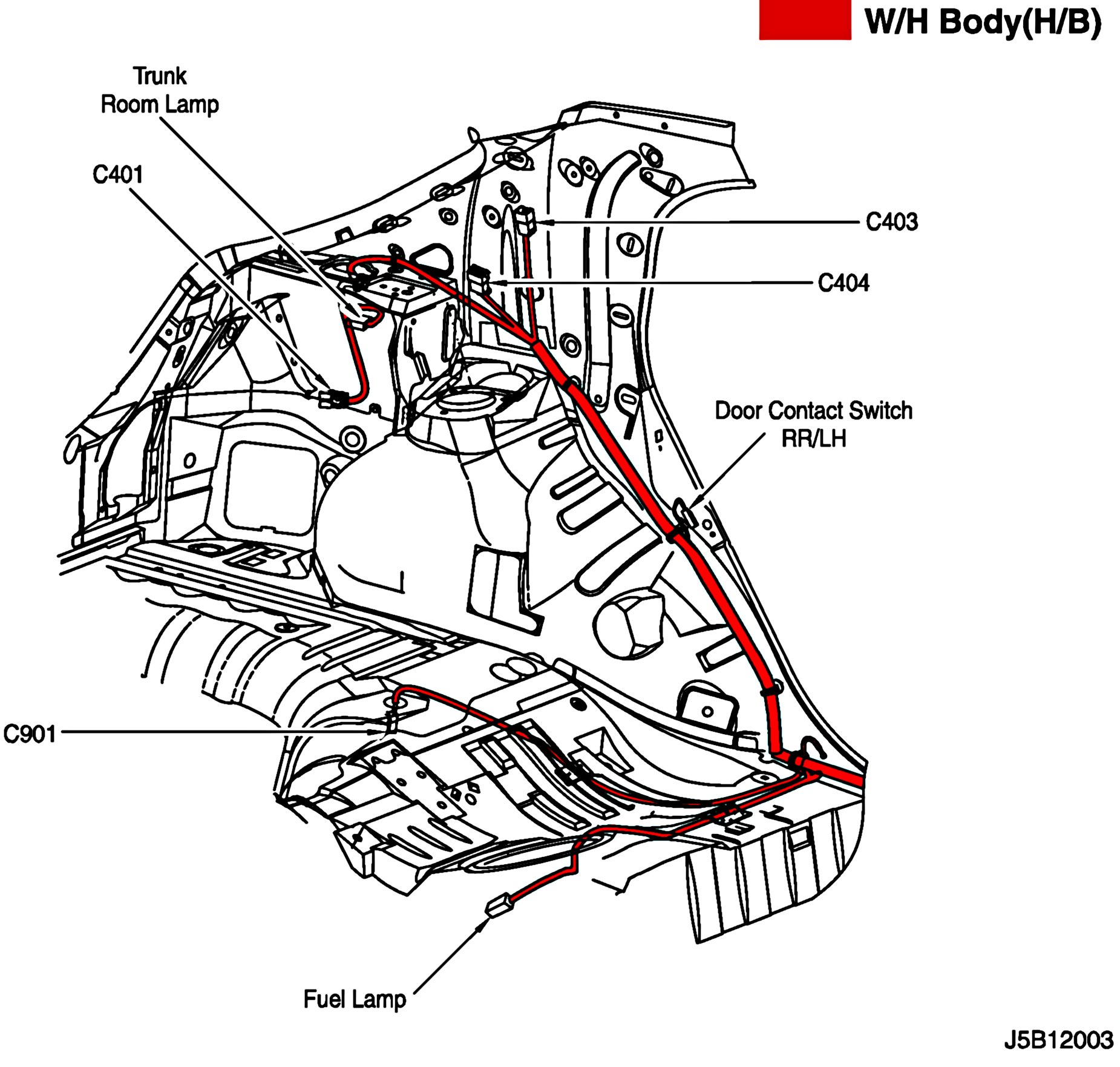

W/H BODY:
POSITION OF CONNECTORS AND GROUNDS
