Cluster, Fuel Pressure Sensor, Fuel Pump and TCM Circuit
Cluster, Fuel Pressure Sensor, Fuel Pump and TCM Circuit:

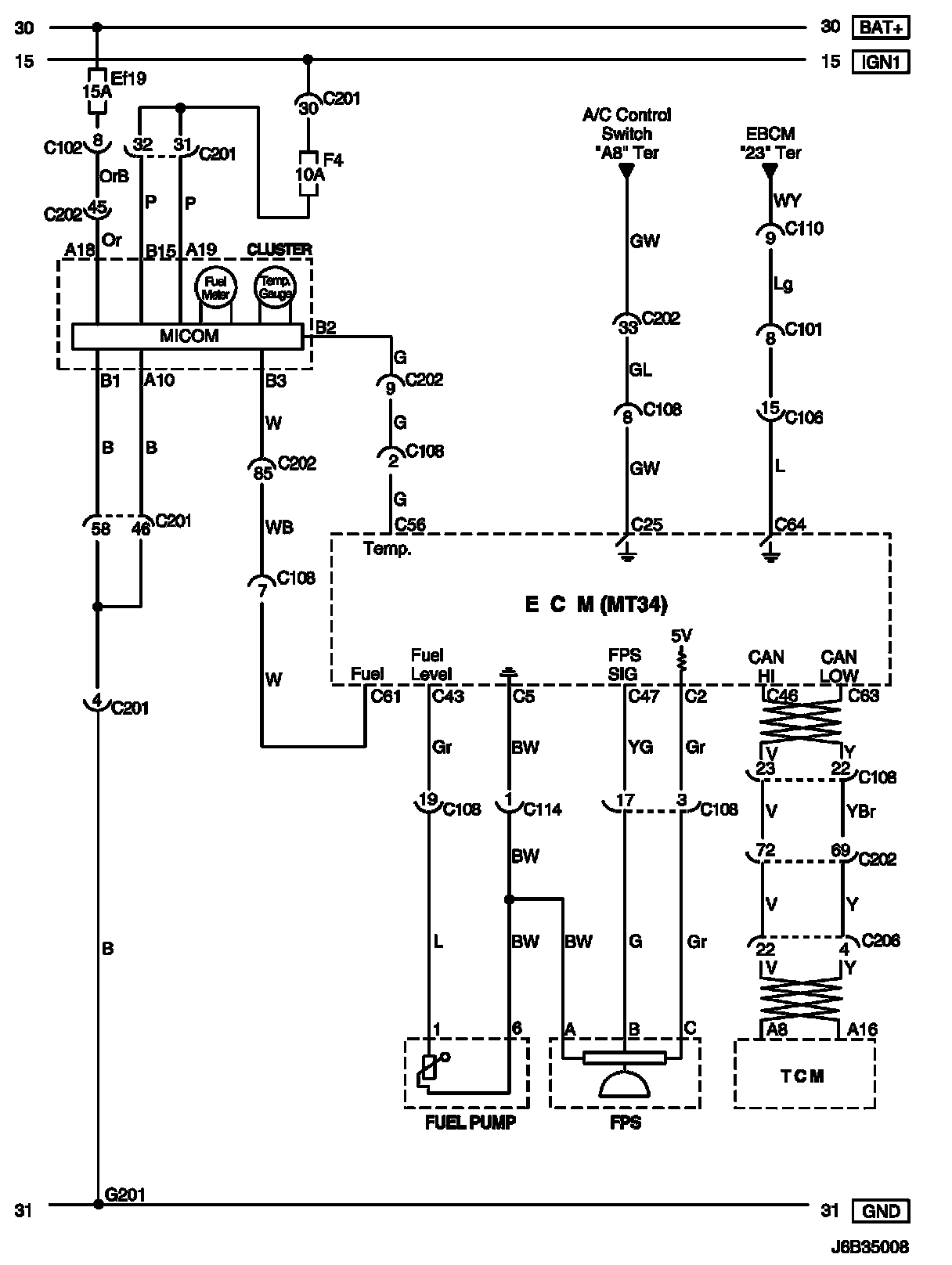

WIRING DIAGRAM
C101 - G201:
CONNECTOR INFORMATION

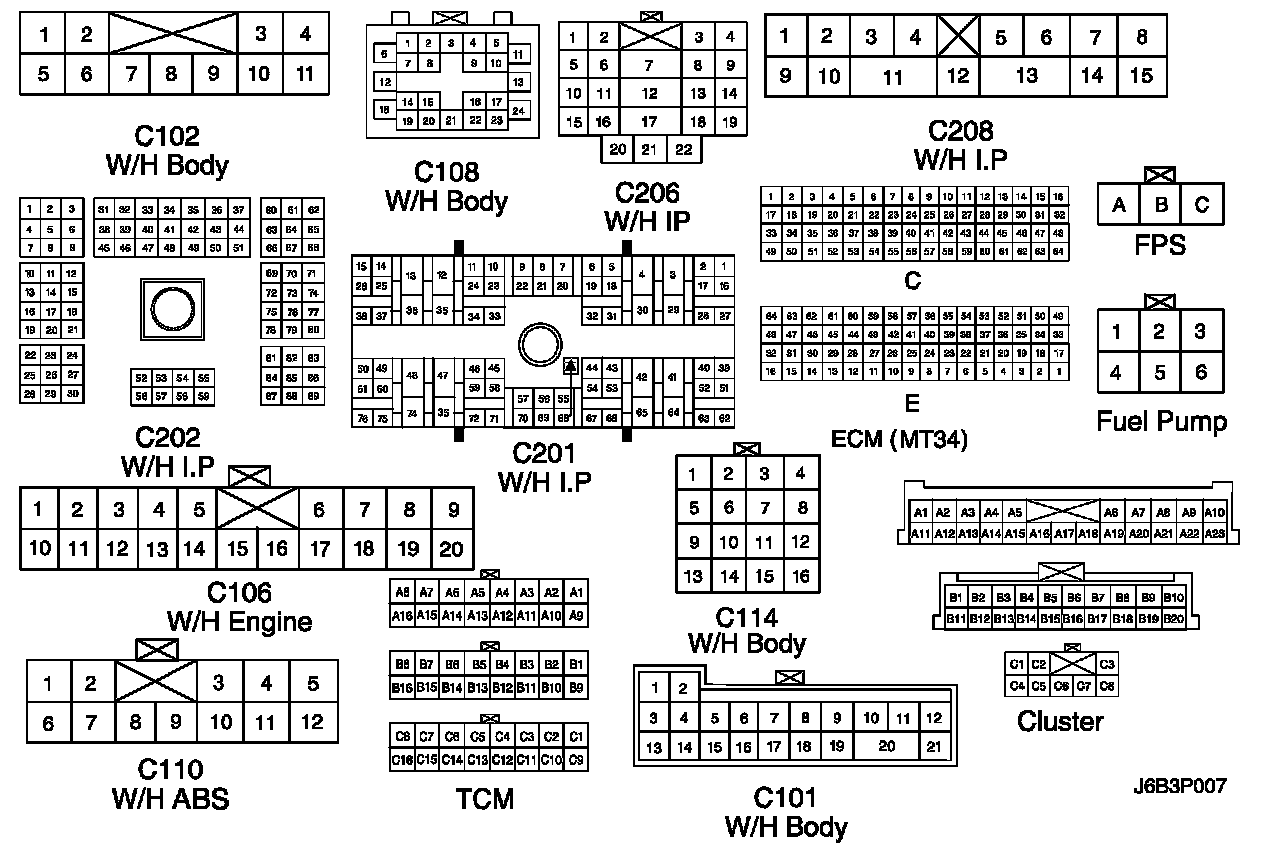

Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

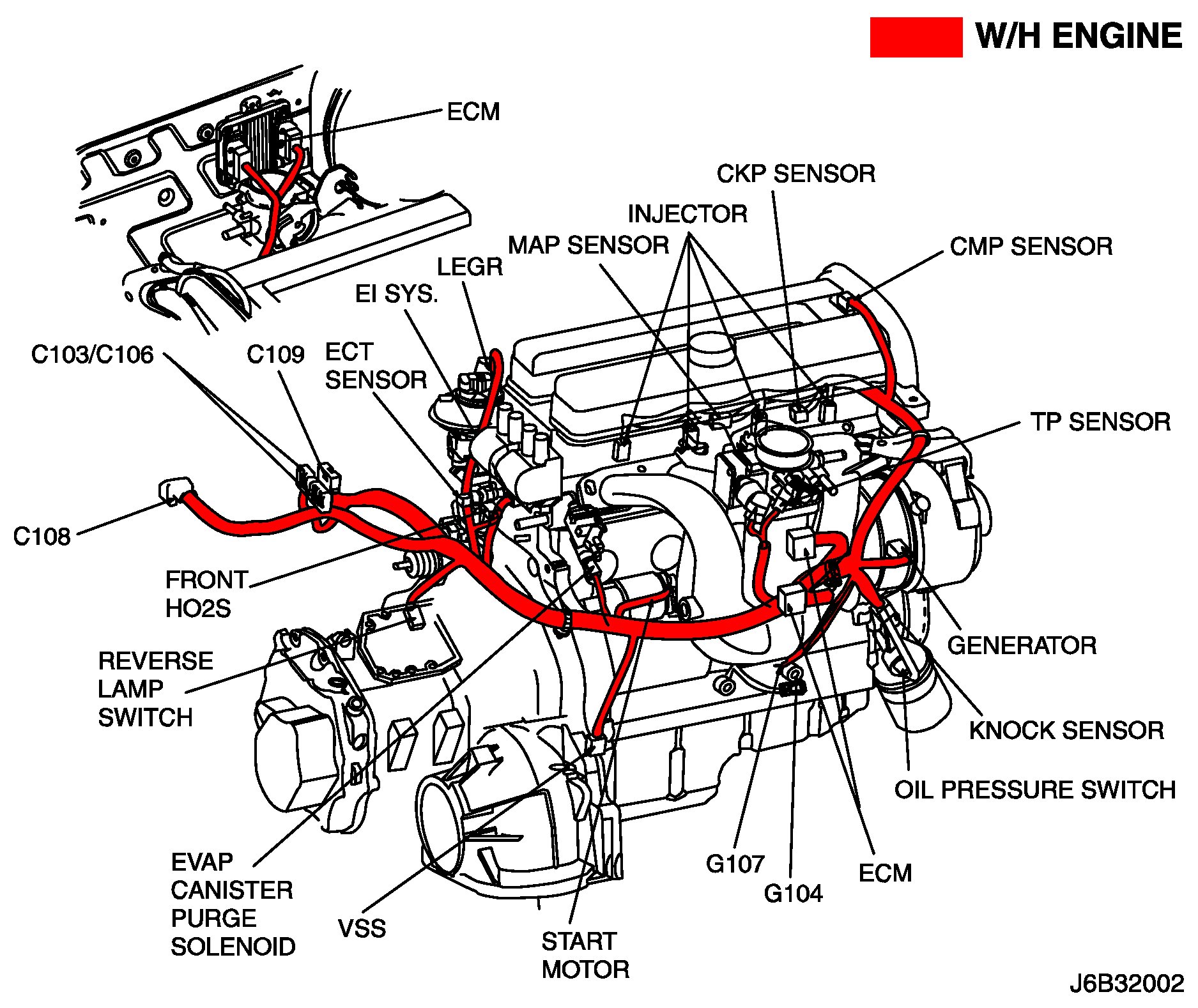

W/H ENGINE:

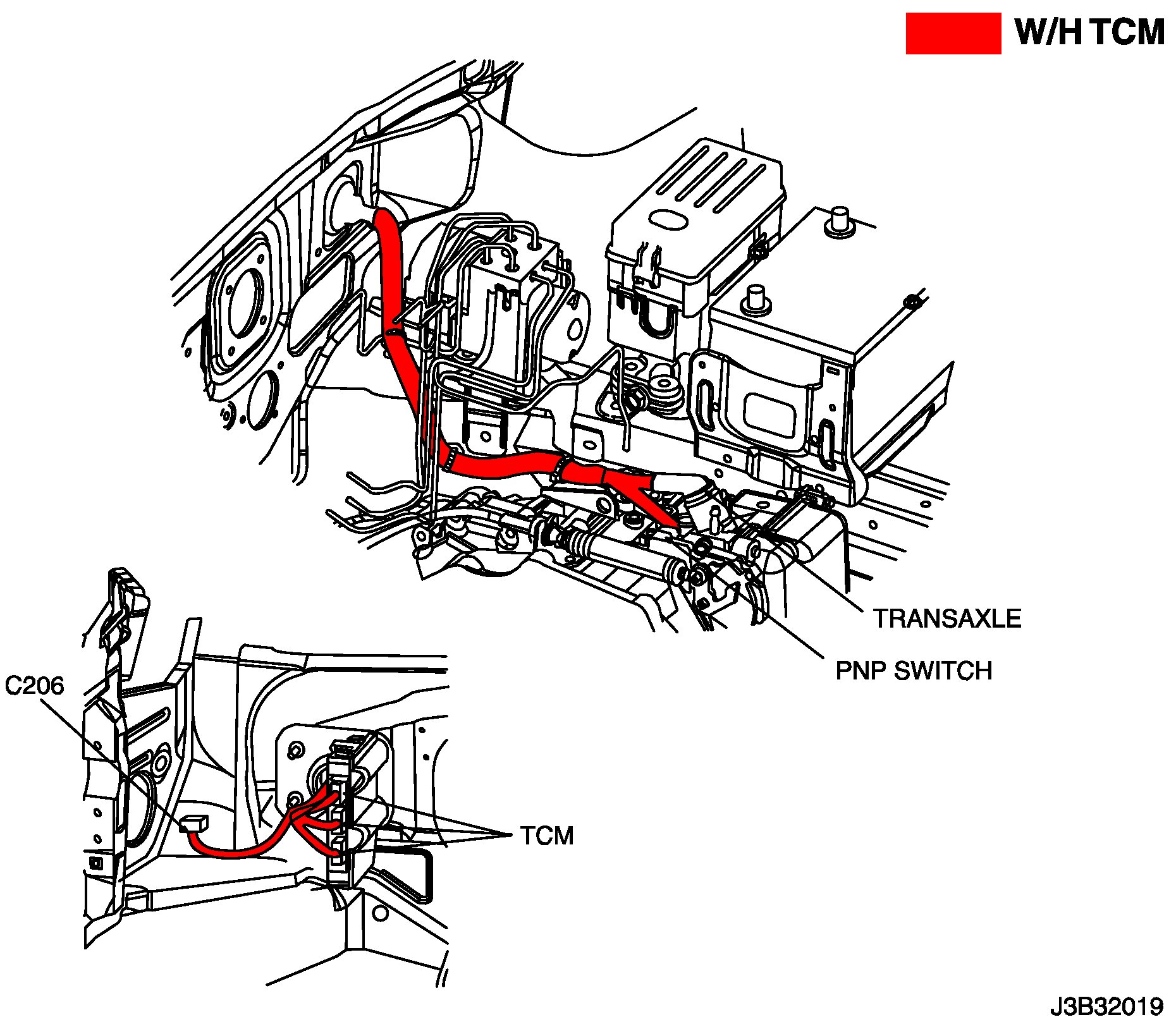

W/H TCM:
POSITION OF CONNECTORS AND GROUNDS
