A/T: Notchback and Hatchback Model

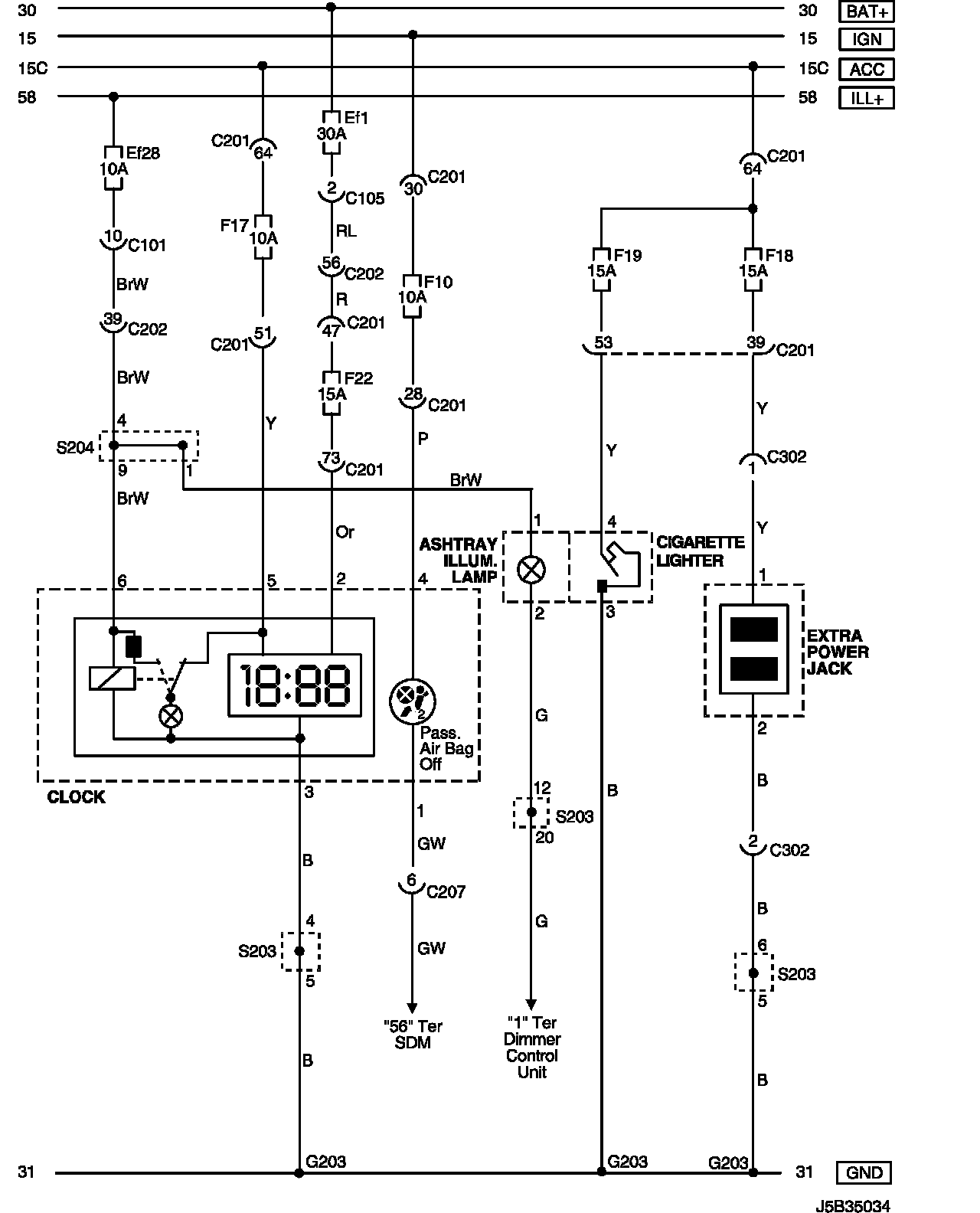

Clock, Cigar Lighter, Ashtray Illum. Lamp and Extra Power Jack Circuit Wiring Diagram (A/T: NOTCHBACK and HATCHBACK Model):
WIRING DIAGRAM
C101 - G203:
CONNECTOR INFORMATION
Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

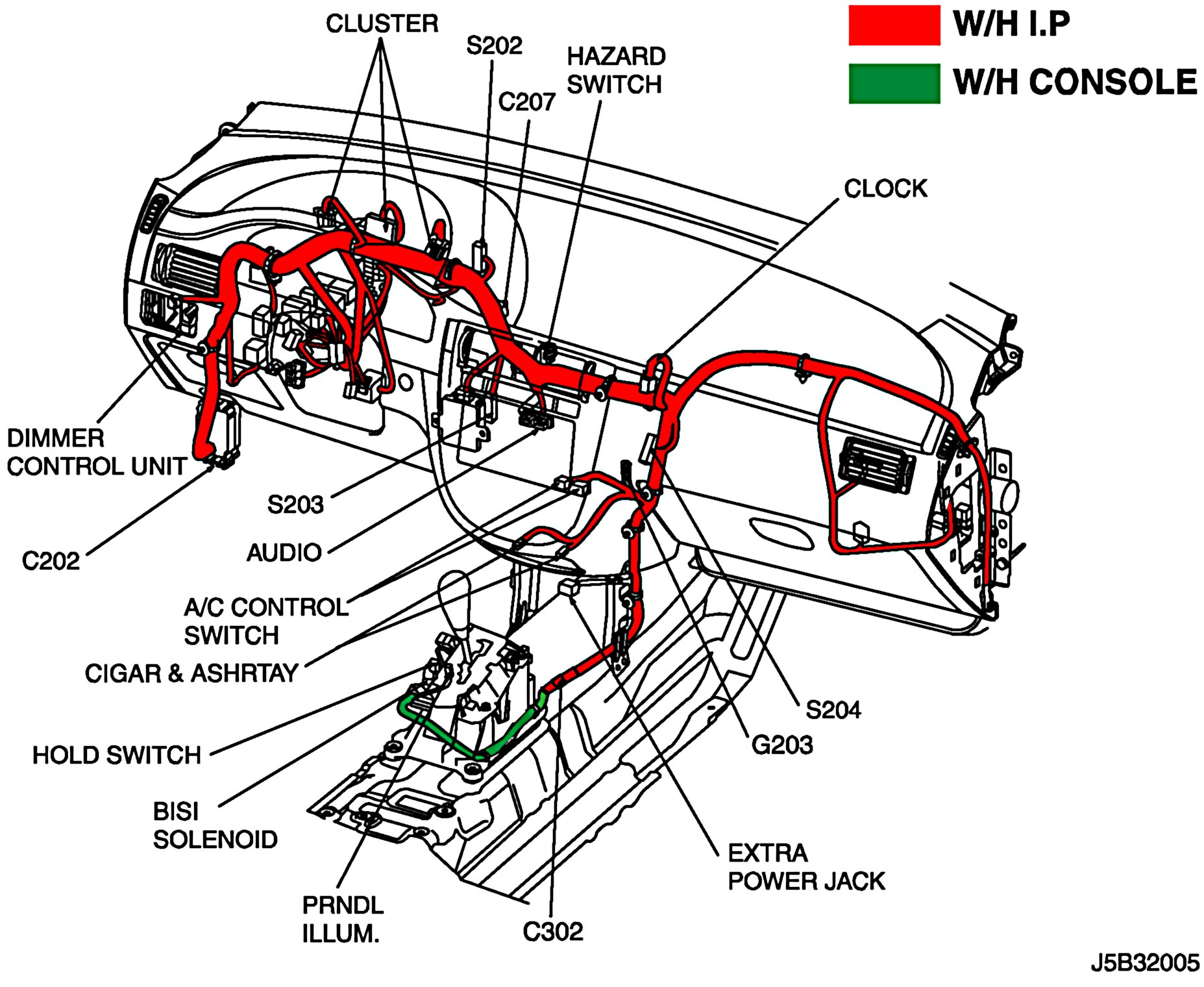

W/H INSTRUMENT PANEL:
POSITION OF CONNECTORS AND GROUNDS
S203:
S204:
SPLICE PACK
