For Notchback and Hatchback Model

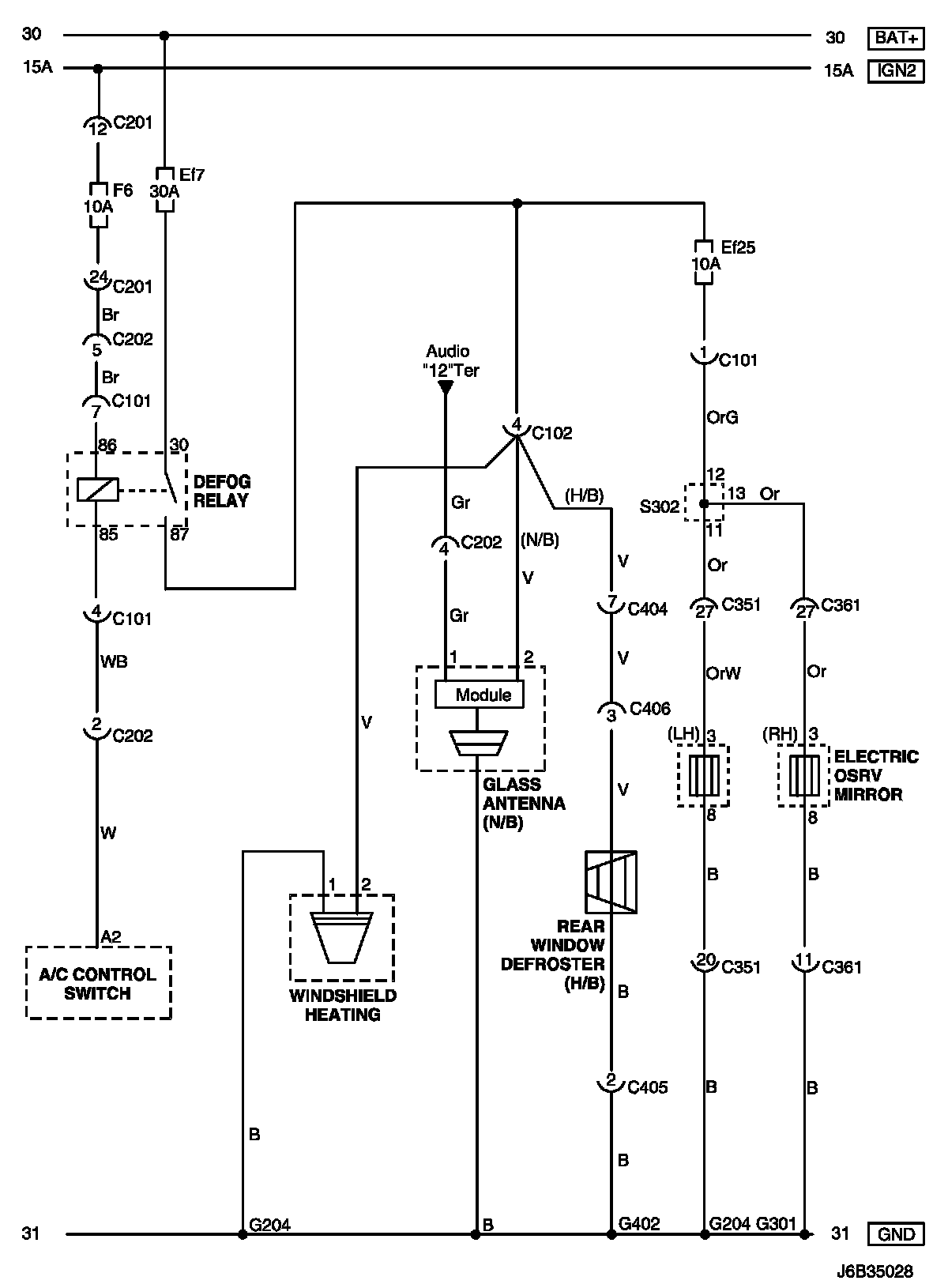

Font/Rear Window Defroster and OSRV Mirror Heating System Circuit Wiring Diagram (For NOTCHBACK and HATCHBACK Model):
WIRING DIAGRAM
C101 - G402:
CONNECTOR INFORMATION

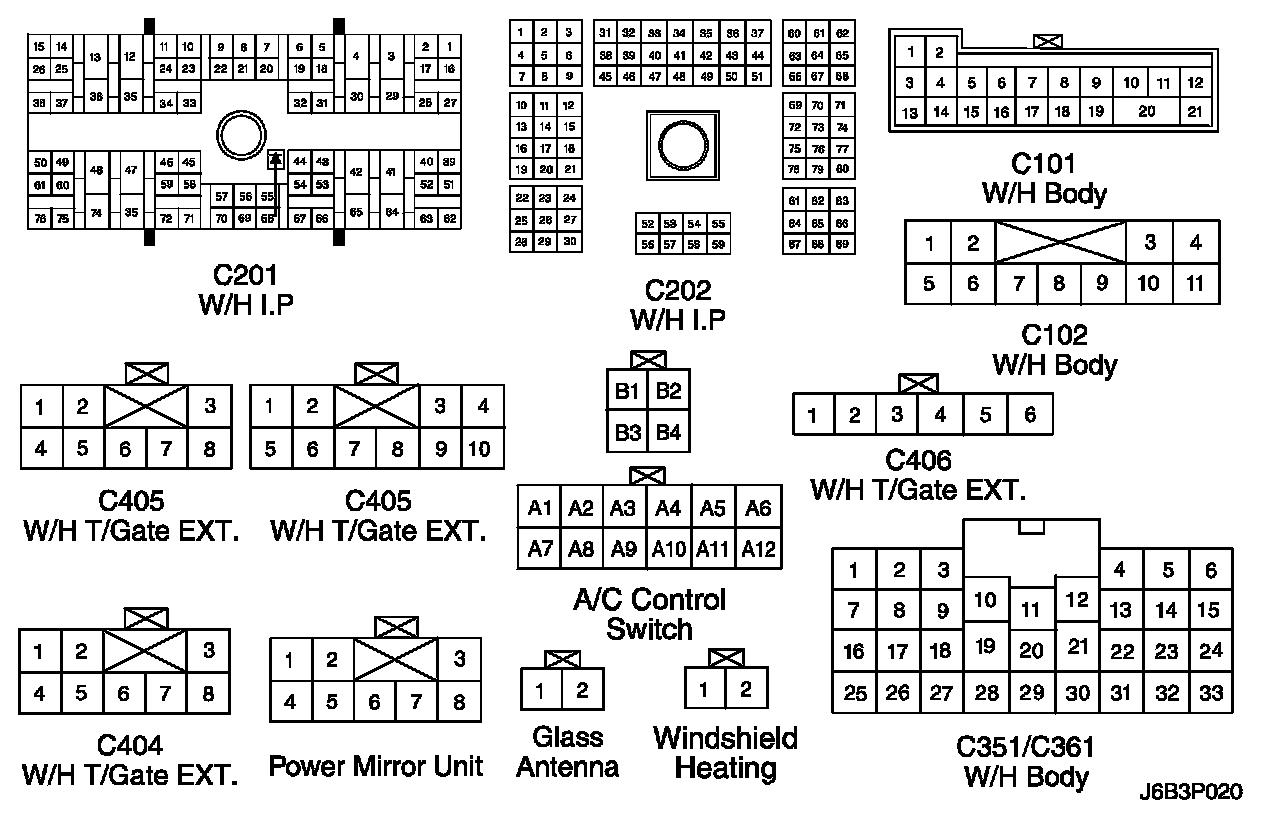

Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

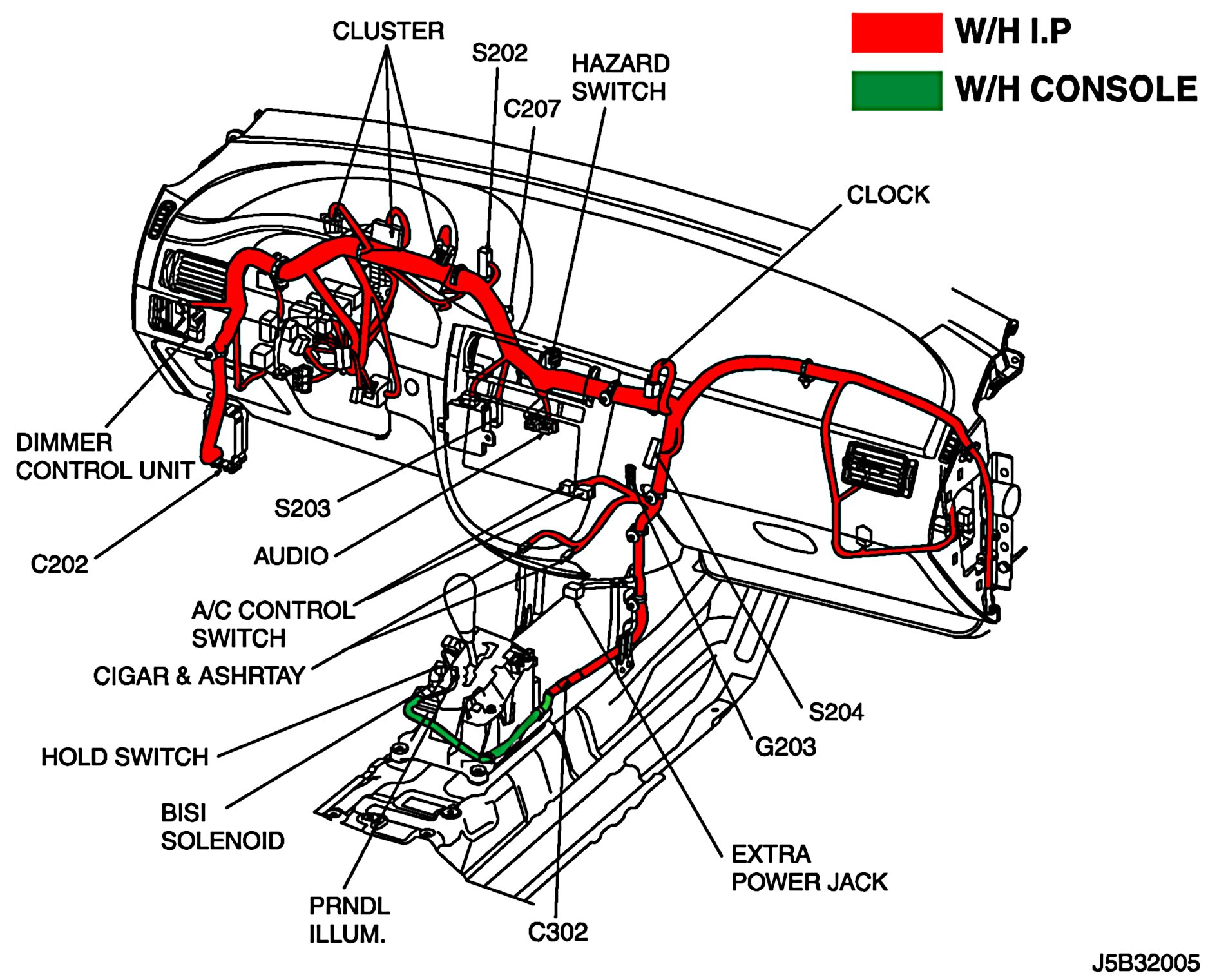

W/H INSTRUMENT PANEL:

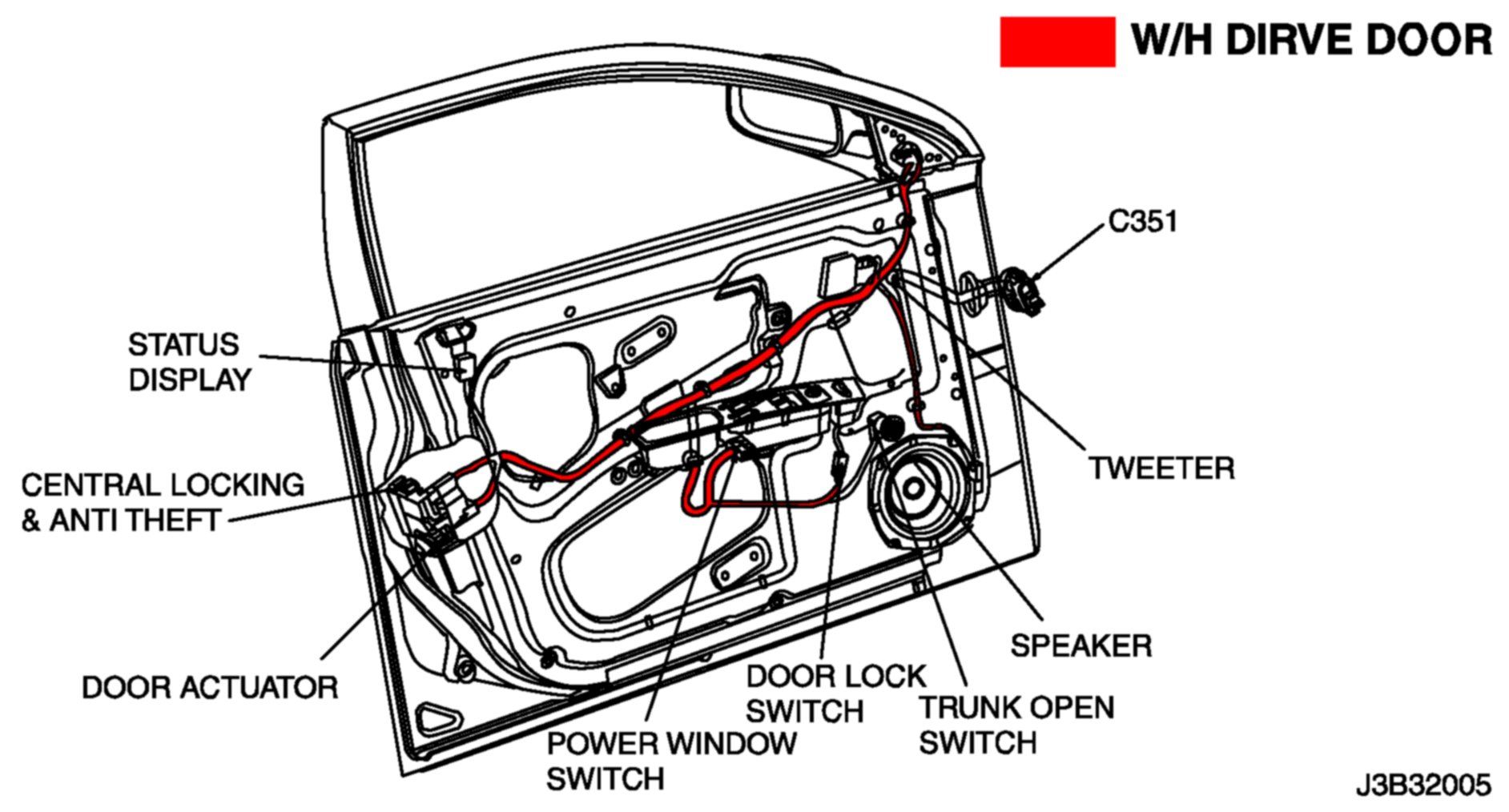

W/H DRIVE DOOR:
POSITION OF CONNECTORS AND GROUNDS
S302 (Notchback):
S301 (Hatchback):
SPLICE PACK
