For Hatchback Model
Anti Theft Control System Circuit (For HATCHBACK Model):

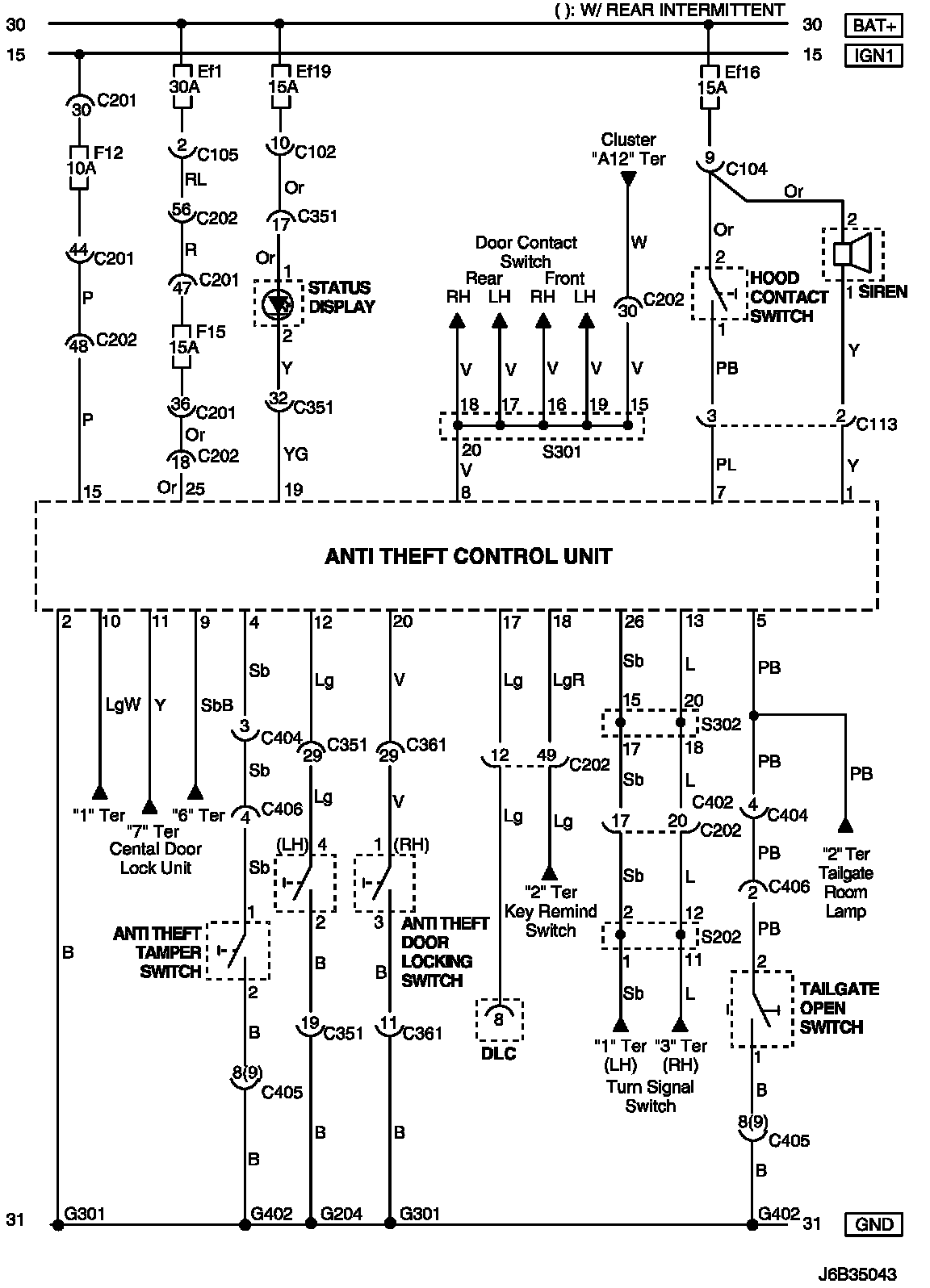

Wiring Diagram
C102 - G402:

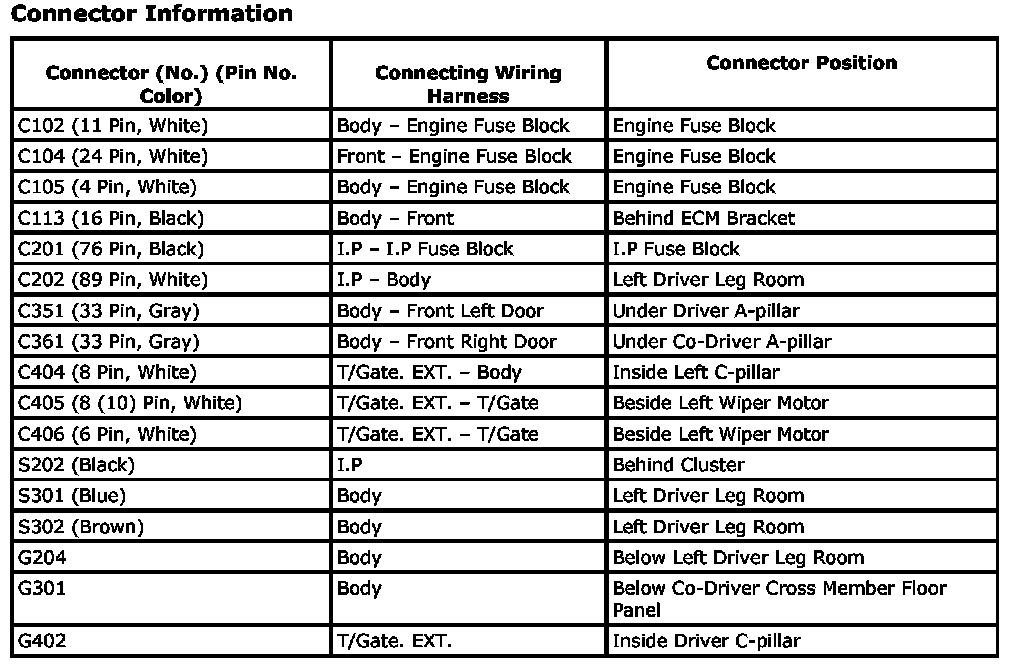

CONNECTOR INFORMATION

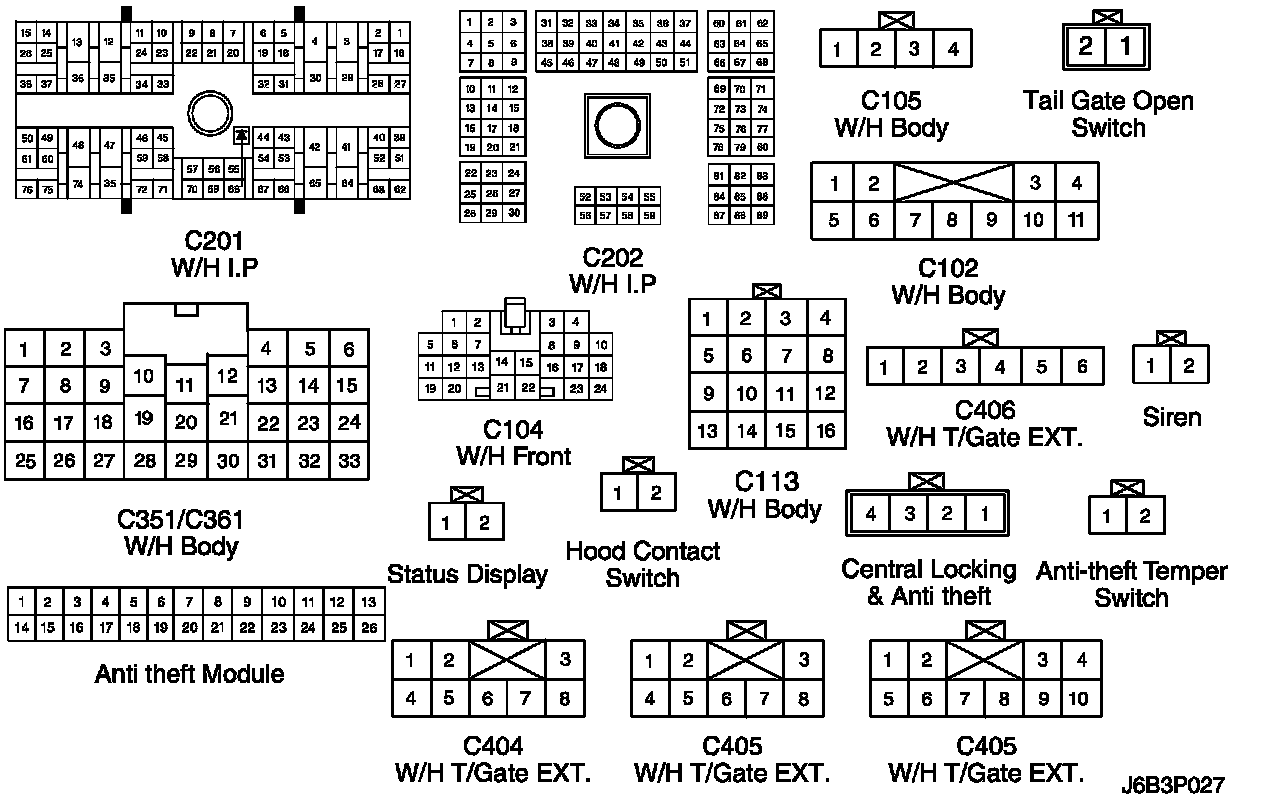

Connector Identification Symbol and Pin Number Position:
Connector Identification Symbol and Pin Number Position

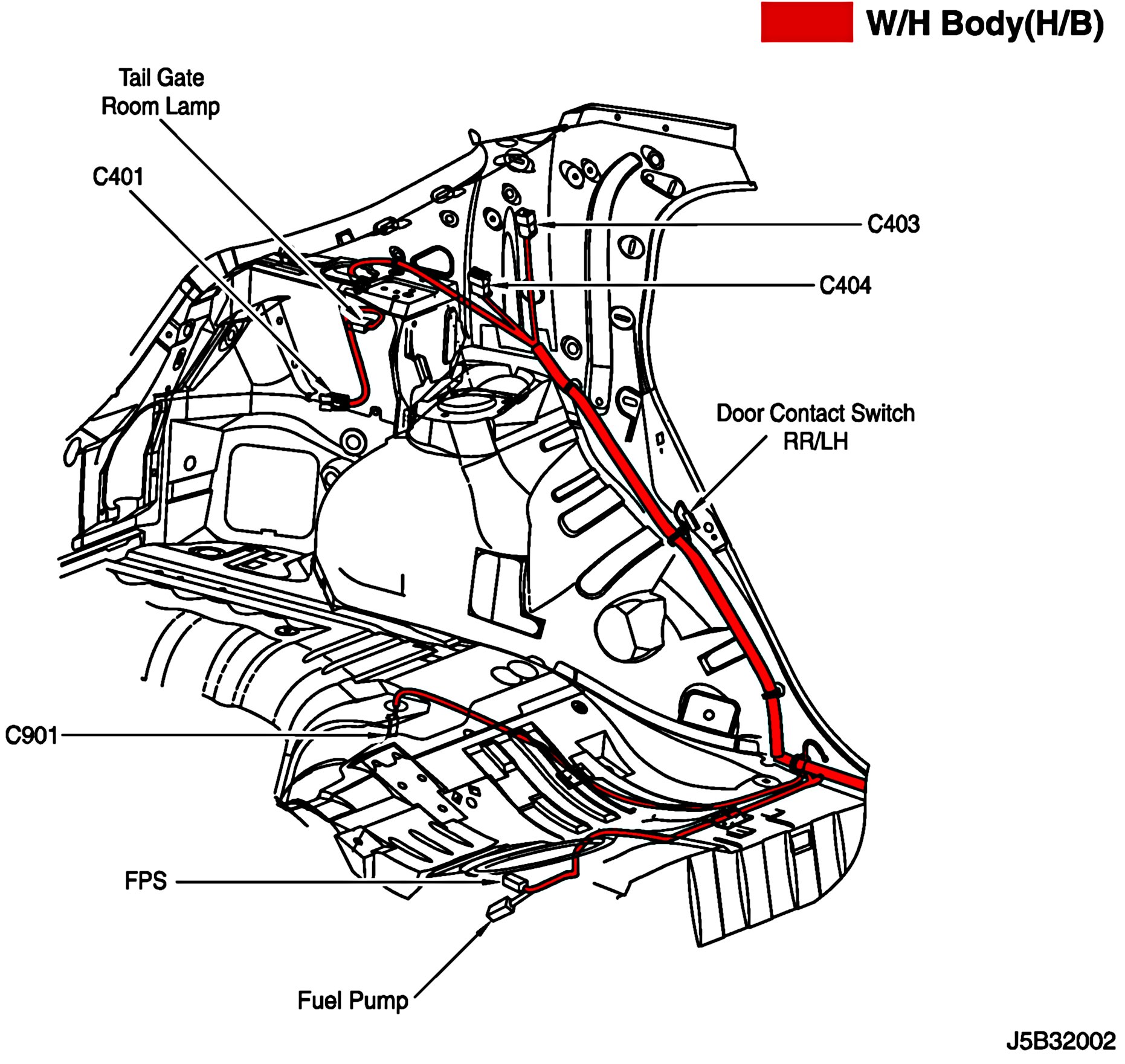

W/H BODY:

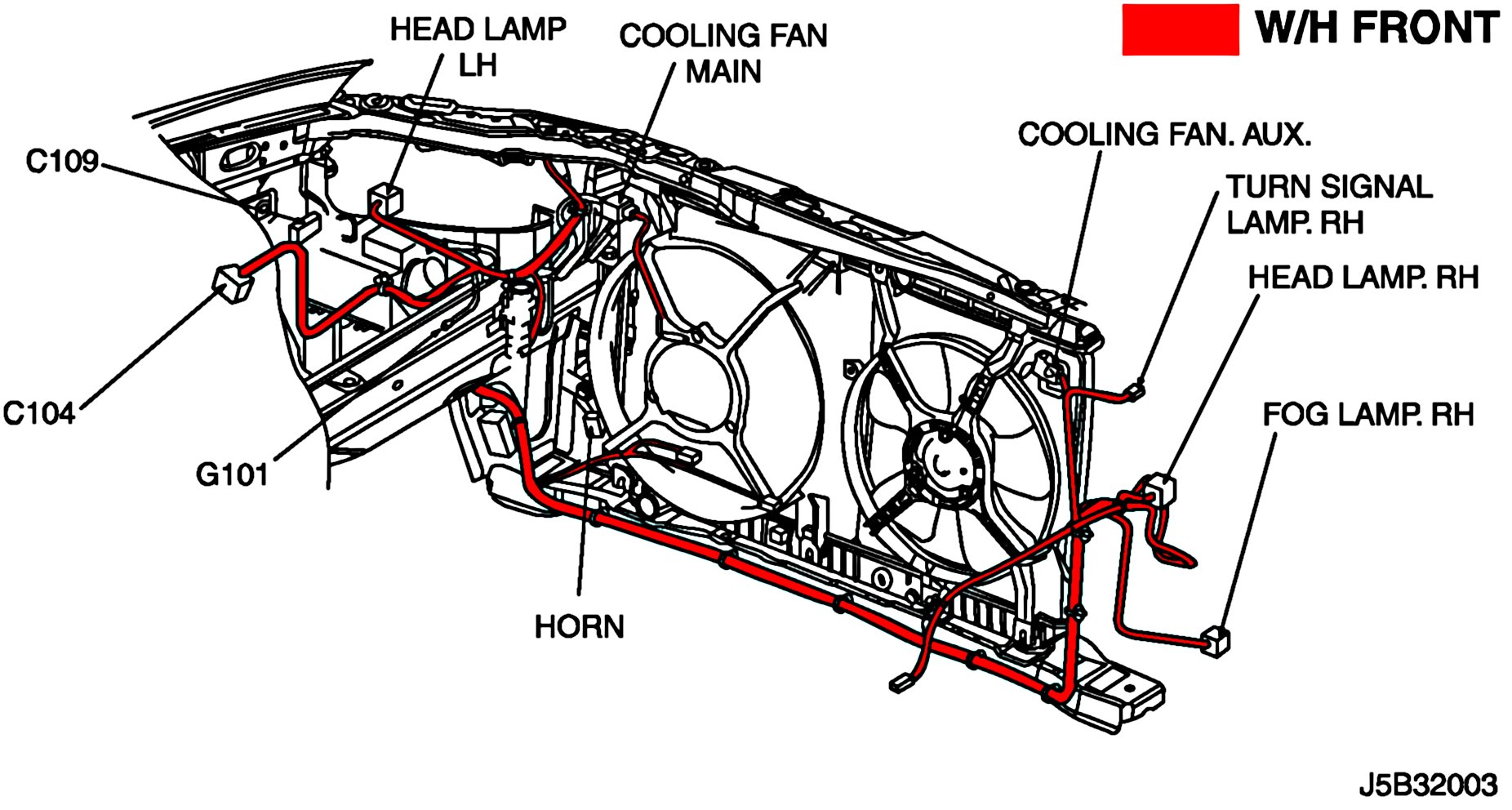

W/H FRONT:
Position of Connectors and Grounds
S202:
S301 (Hatchback):
S302 (Hatchback):
Splice Pack
