Engine Compartment

For fuse/relay box identification, refer to illustration.

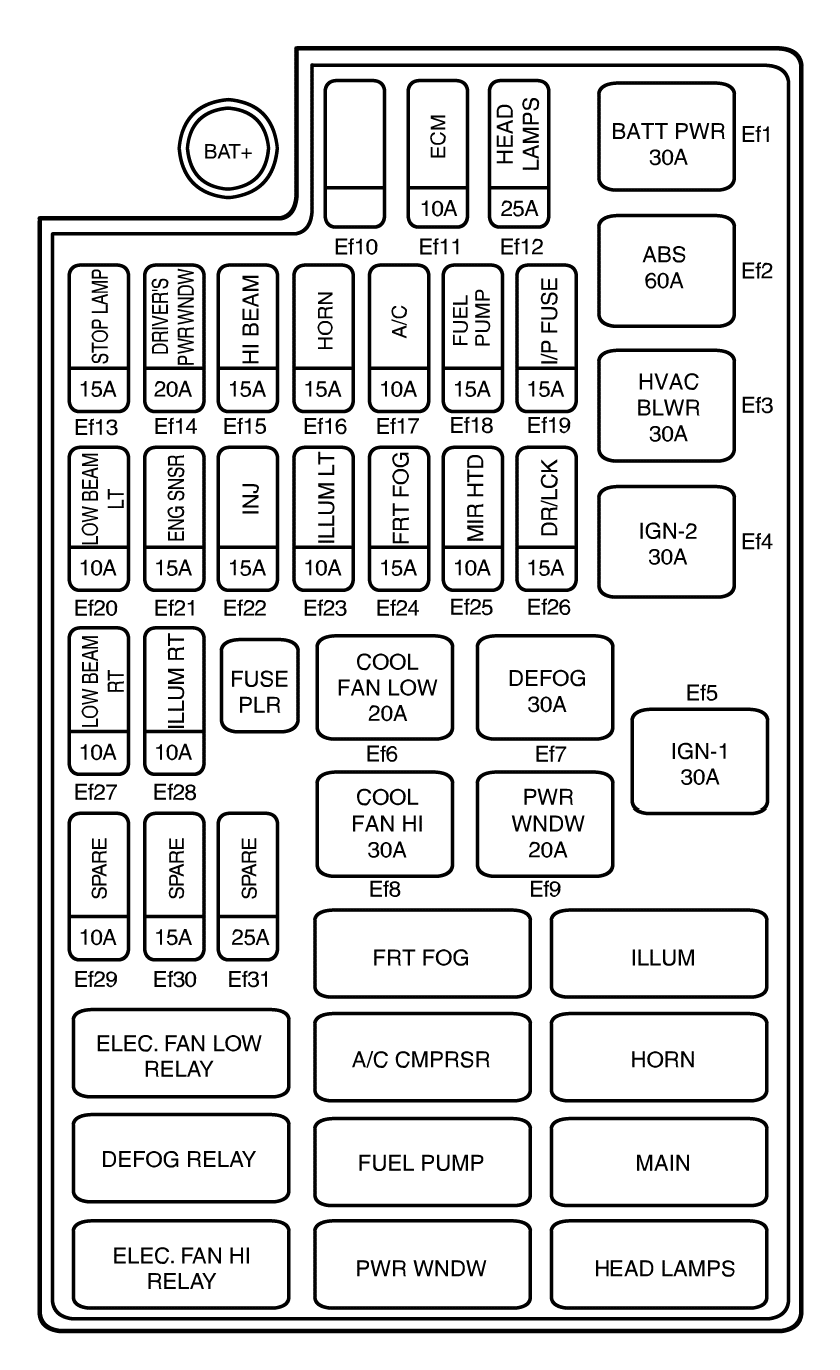

Fig 1: Identifying Engine Compartment Fuse/Relay Block

Courtesy of SUZUKI OF AMERICA CORP.

Engine Compartment Fuse/Relay Assignments

Fuse	Rating	Source	Circuit
SB (Slow-Blown Fuse)
EF1	30A	B+	Battery Main (F13 ~ F16, F22 ~ F24)
EF2	60A	B+	EBCM, Oil Feeding Connector
EF3	30A	B+	Blower Relay
EF4	30A	B+	Ignition Switch-2
EF5	30A	B+	Ignition Switch-1
EF6	20A	B+	Cooling Fan Low Relay
EF7	30A	B+	Defog Relay
EF8	30A	B+	Cooling Fan HI Relay
EF9	20A	IGN 2	Power Window Switch
Blade Type Fuse
EF10	-	IGN 1	-
EF11	10A	B+	ECM
EF12	25A	B+	Head Lamp Relay, ILLUM. Relay
EF13	15A	B+	Brake Switch
EF14	20A	IGN 2	Power Window Switch
EF15	15A	Light	Head Lamp HI
EF16	15A	B+	Horn Relay, Siren, Hood Contact Switch
EF17	10A	B+	A/C Comp. Relay
EF18	15A	IGN 1	Fuel Pump
EF19	15A	B+	Cluster, Key Remind S/W, MAP Lamp, Room Lamp, Trunk Open Lamp, Trunk Open S/W
EF20	10A	Light	Head Lamp Low
EF21	15A	IGN 1/B+	EVAP Canister Purge Solenoid, HO2S, Cooling Fan Relay, EVAP Vent. Solenoid, CMP sensor, ECM, EI System
EF22	15A	IGN 1/B+	Injector, ECM, LEGR
EF23	10A	Illumination	License Plate Lamp, Chime Bell, FRT/RR Position Lamp
EF24	15A	B+	Fog Lamp Relay
EF25	10A	IGN 2	Electric OSRV Mirror
EF26	15A	B+	Central Door Lock Unit
EF27	10A	Light	Head Lamp Low
EF28	10A	Illumination	ILLUM. Circuit, FRT/RR Position Lamp
EF29	10A	Spare	Not Used
EF30	15A	Spare	Not Used
EF31	25A	Spare	Not Used
