Steering Column Removal and Installation: Installation

CAUTION: For proper installation of the steering column, be sure the steering wheel spokes are centered diagonally and pointed downward and the front wheels are positioned in the straight-ahead position.
  1. Carefully guide the steering shaft into the intermediate shaft universal joint.
  2. Install the pinch bolt into the non-threaded hole of the flange.

    Tighten:

    Tighten the steering shaft universal joint pinch bolt to 25 N.m (18 lb-ft).

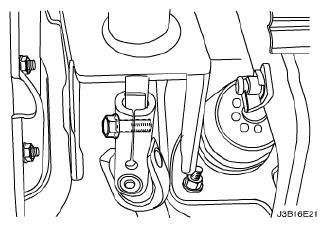

    Fig 1: Identifying Pinch Bolt On Flange
    G04717658Courtesy of SUZUKI OF AMERICA CORP.
  3. Install the bolts and nuts for the front bracket of the steering column jacket assembly.

    Tighten:

    Tighten the steering column jacket assembly front bracket bolts to 22 N.m (16 lb-ft).

  4. Install the nuts for the rear bracket of the steering column jacket assembly.

    Tighten:

    Tighten the steering column jacket assembly rear bracket nuts to 22 N.m (16 lb-ft).

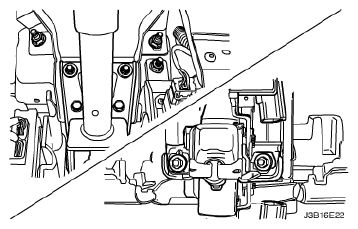

    Fig 2: Identifying Nuts For Rear Bracket Of Steering Column Jacket Assembly
    G04717659Courtesy of SUZUKI OF AMERICA CORP.
  5. Connect the speed sensitive steering electrical connector.
    Fig 3: Identifying Speed Sensitive Steering Electrical Connector
    G04717660Courtesy of SUZUKI OF AMERICA CORP.
  6. Connect the ignition switch electrical connection.
    Fig 4: Connecting Ignition Switch Electrical Connection
    G04717661Courtesy of SUZUKI OF AMERICA CORP.
  7. Connect the air bag electrical connections.
  8. Install the switch levers. Refer to Headlamp / Turn Signal Switch and Lever Removal and Installation  and Wiper Switch and Lever Removal and Installation .
  9. Install the lower instrument trim panels. Refer to INSTRUMENT CLUSTER TRIM PANEL REMOVAL AND INSTALLATION .
  10. Install the upper and the lower steering column cover panel with the screws.

    Tighten:

    Tighten the upper and the lower steering column panel screws to 2.5 N.m (22 lb-in).

  11. Inspect the steering wheel in a straight-ahead position. Refer to STRAIGHT-AHEAD CHECK .
  12. Connect the negative battery cable.
    Fig 5: Identifying Air Bag Electrical Connections
    G04717662Courtesy of SUZUKI OF AMERICA CORP.
