For STATION WAGON Model

Unit: mm (in.)

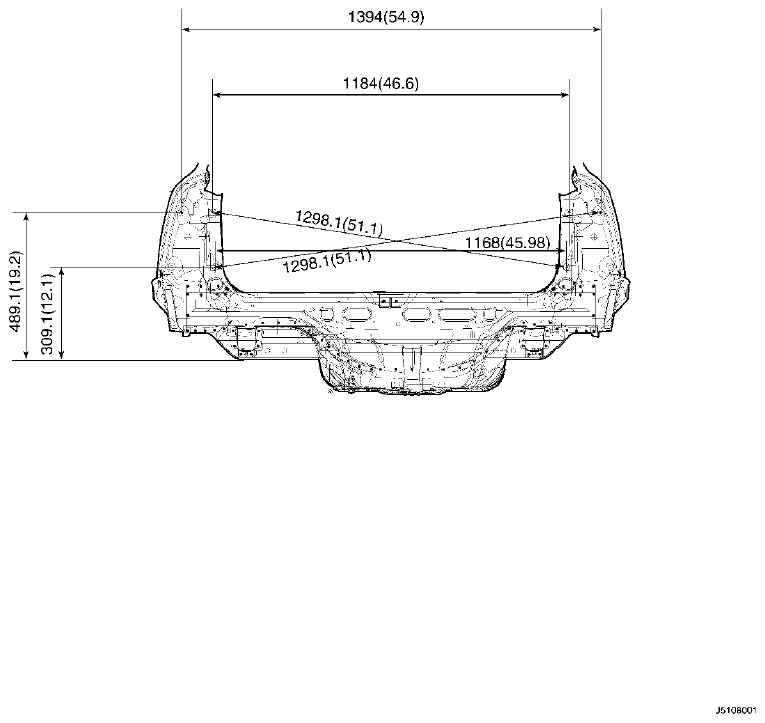

Fig 1: Identifying Under Body Dimension Chart - Back Panel Lower (Station Wagon Model)
G04718508Courtesy of SUZUKI OF AMERICA CORP.
