For HATCHBACK Model

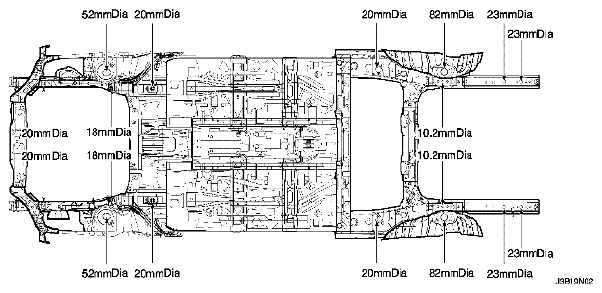

Fig 1: Identifying Underbody Dimensions - Hatchback Model (1 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.

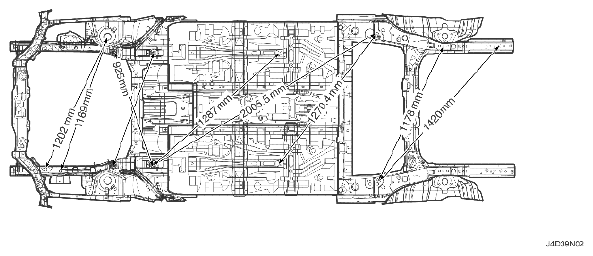

Fig 2: Identifying Underbody Dimensions - Hatchback Model (2 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.

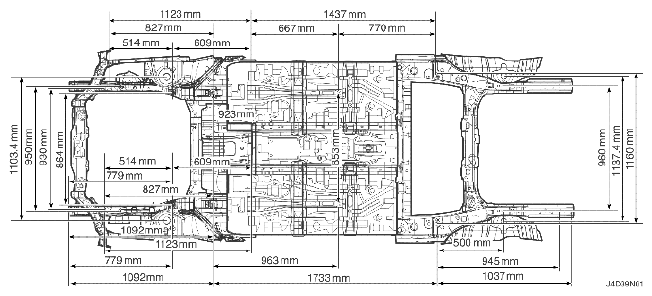

Fig 3: Identifying Underbody Dimensions - Hatchback Model (3 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.

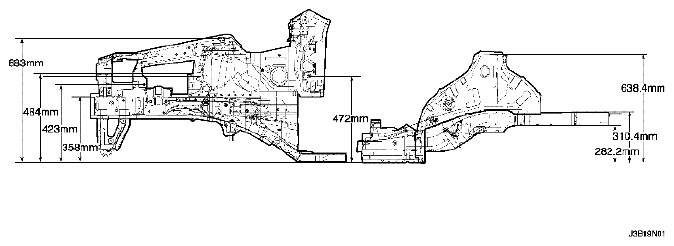

Fig 4: Identifying Underbody Dimensions - Hatchback Model (4 Of 4)

Courtesy of SUZUKI OF AMERICA CORP.
