Service Manual Update: DTC P2106 Throttle Actuator Control (TAC) System Performance - Throttle Limitation Active And DTC P2110 Throttle Actuator Control (TAC) System - Forced Limited Engine Speed (TS 16 05227)
Publication date: 2007-05-22Reference number: TS 16 05227
SERVICE MANUAL UPDATE: DTC P2106 THROTTLE ACTUATOR CONTROL (TAC) SYSTEM PERFORMANCE - THROTTLE LIMITATION ACTIVE AND DTC P2110 THROTTLE ACTUATOR CONTROL (TAC) SYSTEM - FORCED LIMITED ENGINE SPEED
TECHNICAL SERVICE BULLETIN
Reference Number(s): TS 16 05227, Date of Issue:
May 22, 2007
| SUZUKI: | 2006~2007 FORENZA (RQ420) |
| SECTION: | Engine |
CONDITION
DTC P2106 and P2110 set with no other DTCs and possible no power or limited engine RPM.
CAUSE
The engine control module (ECM) logic will set these DTCs and limit engine RPM in order to prevent throttle actuator errors caused by a continued low voltage condition.
CORRECTION
Additional diagnostic procedures have been added to the service manual. Please add the pages below to your service manual in the appropriate section and cross out the sections in your service manual that the corresponding sections below are replacing.
AFFECTED SERVICE MANUALS
AFFECTED SERVICE MANUALS
| Name of Manuals | Part Numbers | Corresponding Pages |
|---|---|---|
| 2006MY Forenza (RP420) Service Manual | 99500-85Z20-33E | Pages 1A-348 thru 1A-350 |
| 2007MY Forenza (RP420) Service Manual | 99500-85Z30-33E | Pages 1A-343 thru 1A-345 |
NOTE:
These updates will be reflected in future printings of the service manuals. If the reprint date on the inside back cover of the manual is later than the issue date of this bulletin, the manual will have been updated.

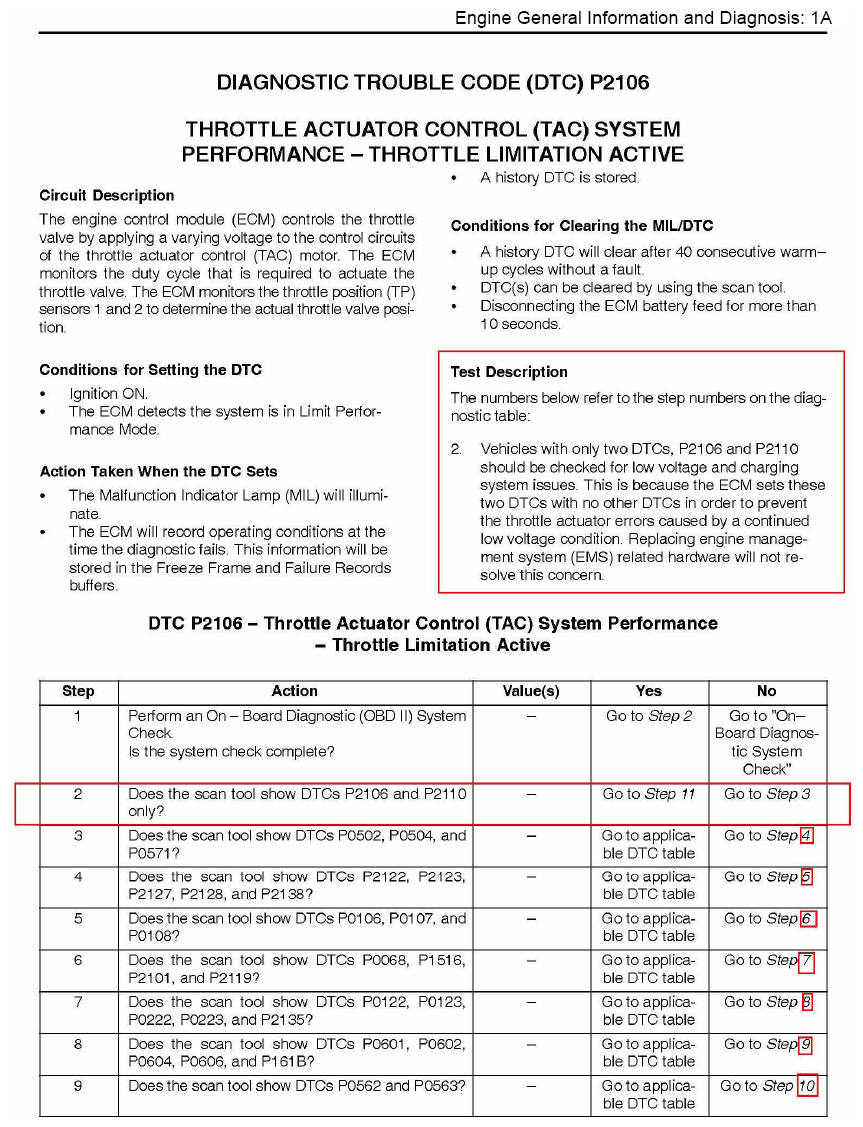

Fig 1: Diagnostic Trouble Code (DTC) P2106 - Throttle Actuator Control (TAC) System Performance - Throttle Limitation Active (1 Of 2)

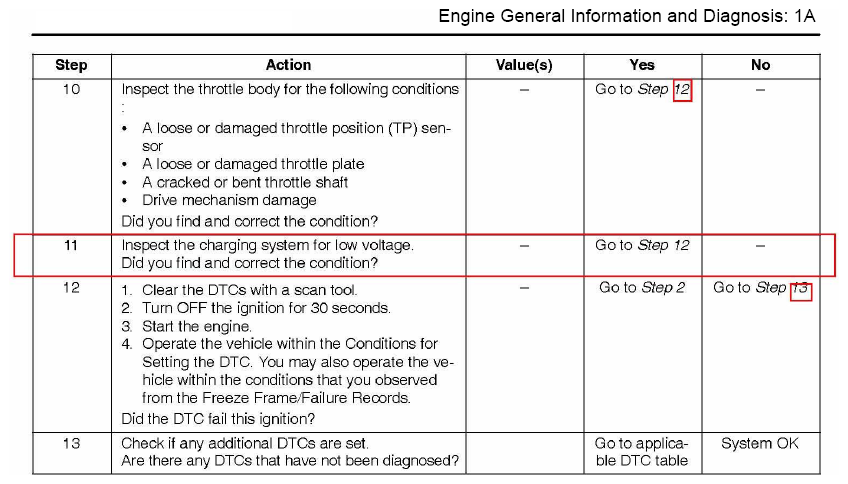

Fig 2: Diagnostic Trouble Code (DTC) P2106 - Throttle Actuator Control (TAC) System Performance - Throttle Limitation Active (2 Of 2)
