Vehicle Lifting Points

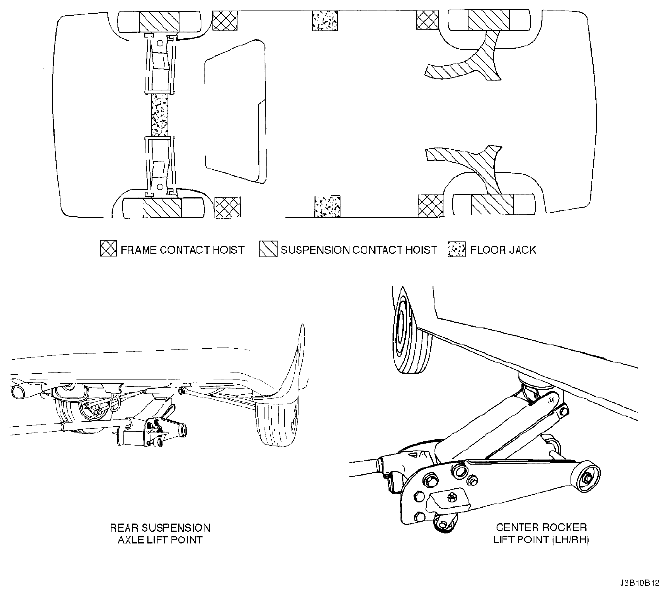

Fig 1: Vehicle Lifting Points (1 Of 2)
G04716170Courtesy of SUZUKI OF AMERICA CORP.

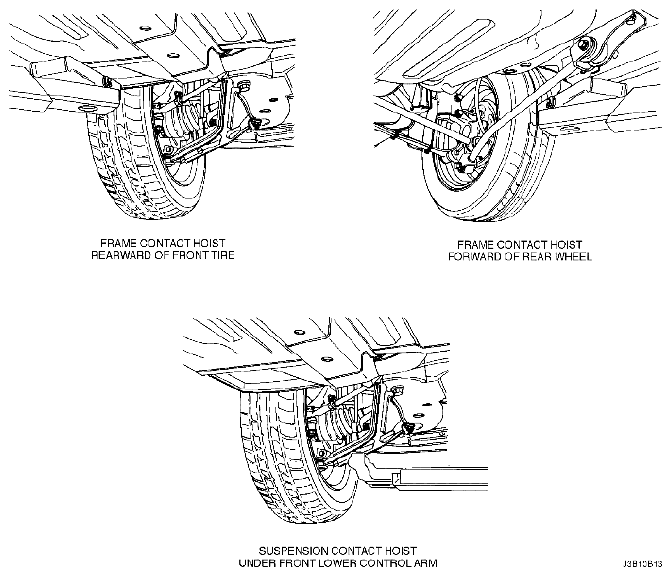

Fig 2: Vehicle Lifting Points (2 Of 2)
G04716171Courtesy of SUZUKI OF AMERICA CORP.
